Labels and markings on the product shown may differ from those on units supplied to your market.
G-CSM-200شبه احترافي

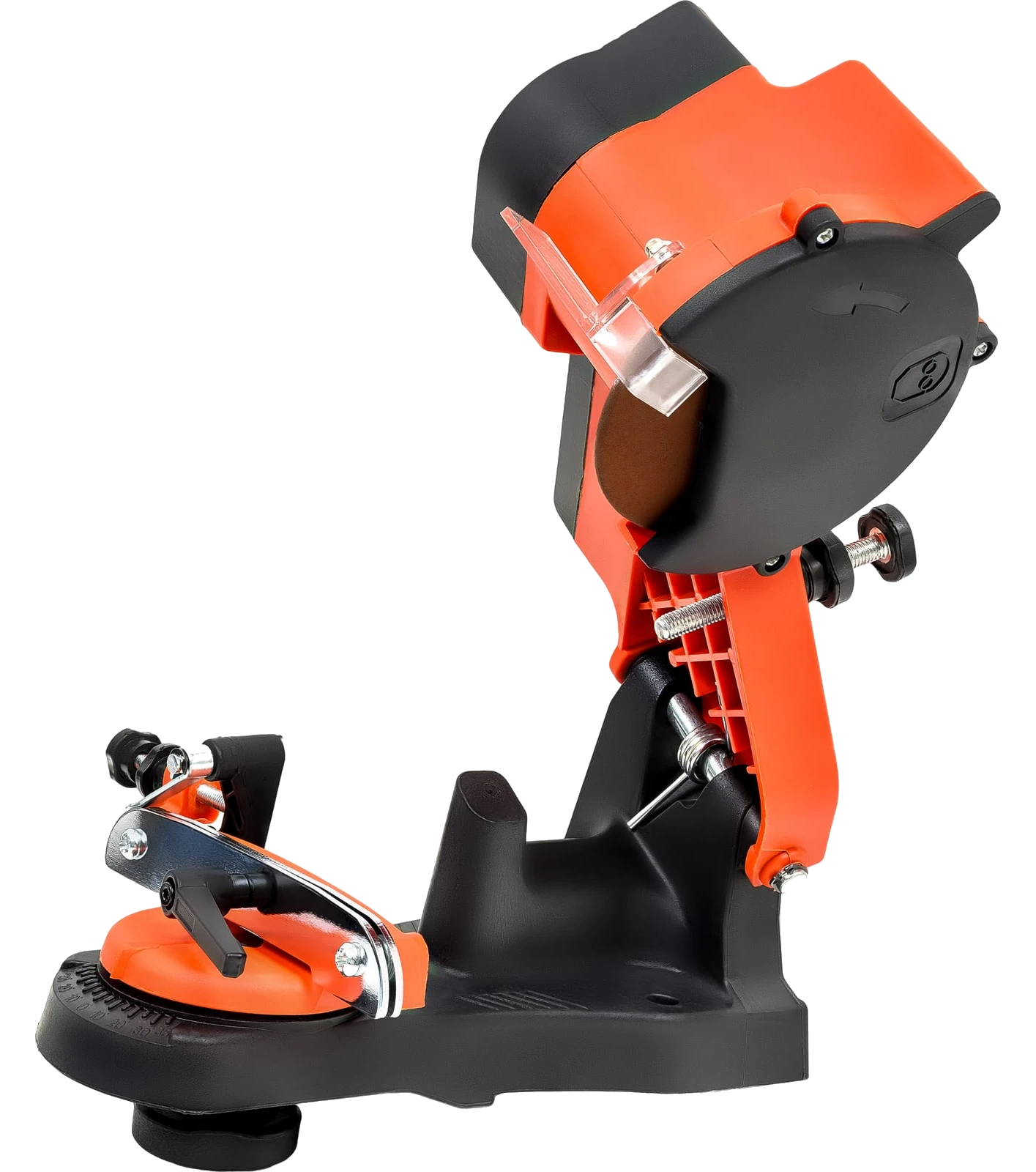

Chainsaw chain sharpening machine G-CSM-200
220 VVoltage 85 WEngine/motor power 5000 rpmFrequency rotation grind. disc
A compact saw chain sharpener supplied with a 3.2 mm wheel: the cast base has holes for bolting it firmly to a bench.
الوصف
This saw chain sharpener is compact and light.
The machine comes with a 3.2 mm grinding wheel.
The cast base has mounting holes for securing the sharpener firmly to a work surface.
المواصفات
| Voltage | 220 V |
|---|---|
| Engine/motor power | 85 W |
| Type | For chains |
| Frequency rotation grind. disc | 5000 rpm |
| Thickness disc | 3.2 mm |
| Disc diameter | 104 mm |
| Bore diameter | 22.2 mm |
| Speed control | No |
| Angle swivel table | 35 ° |
| Size sharpening disc | 104 mm |
| Max drive link thickness | 1.6 mm |
| Min drive link thickness | 1.1 mm |
| Max pitch tooth chain | 10.26 mm |
| Min pitch tooth chain | 6.35 mm |
| Backlight | No |
| Presence of protective screen | No |
| With resistant | No |
| With vacuum cleaner | No |
| With low-speed wheel (wet sharpening/grinding) | No |
| With engraver | No |
| Number disc V kit | 1 pcs |
| Dimensions (unpackaged) | 260x185x180 mm |
| Net weight | 2.15 kg |
محتويات العبوة
- Chain sharpener
- Grinding wheel 3.2 mm thick (fitted)
- Base assembly
- Operating manual
- Packaging
التغليف
| الوزن | 3 kg |
|---|
