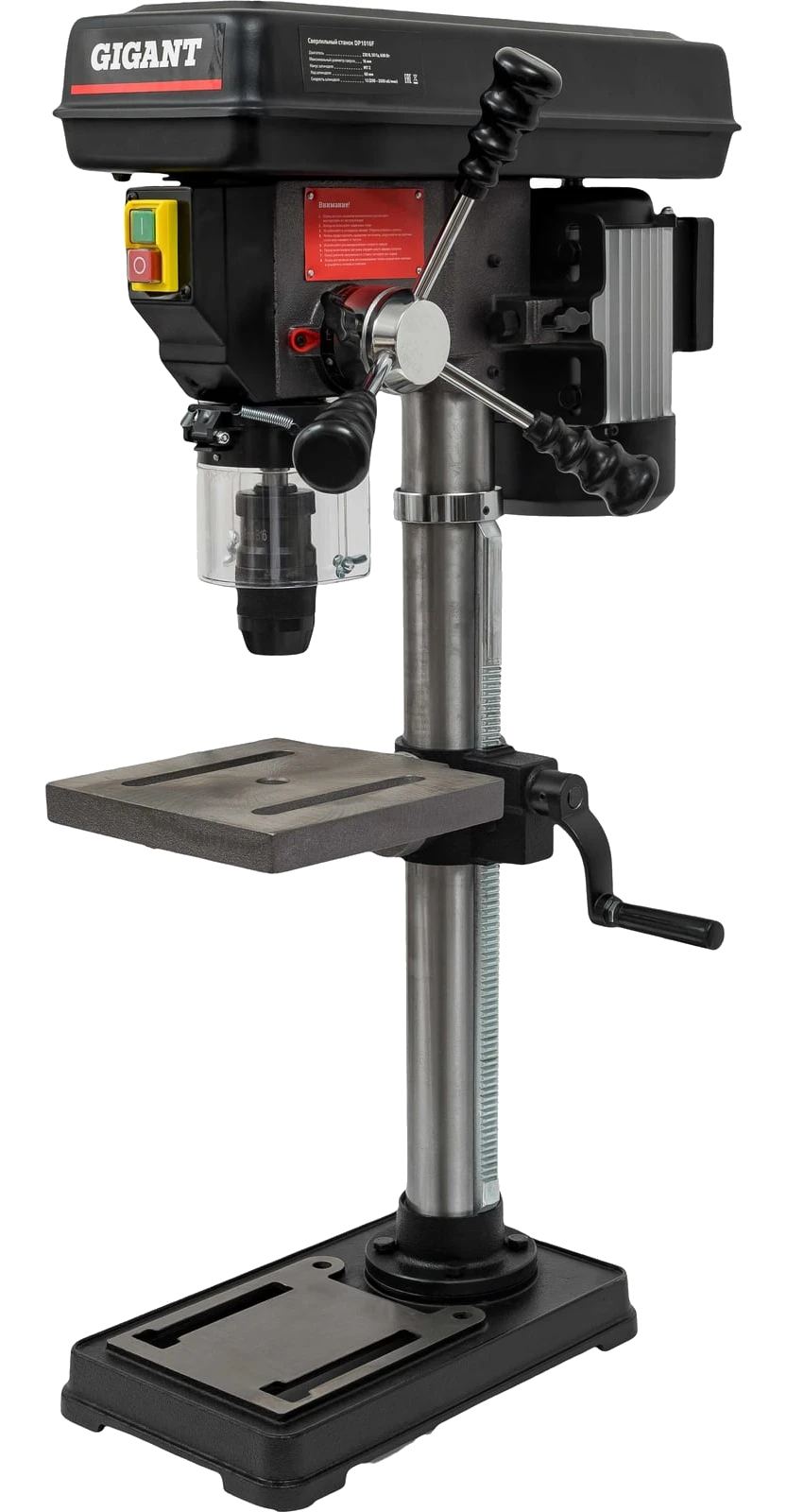

Drill press DP1016F
600 WPower 220/230 VVoltage 200 / 280 / 320 / 420 / 480 / 530 / 800 / 1260 / 1320 / 1550 / 2130 / 2500 rpmSpindle speed
A 600 W drill press with an induction motor for working wood and metal. Twelve spindle speeds from 200 to 2500 rpm let you match the setting to the material and the job.
الوصف
The GIGANT DP1016F drill press is reliable, versatile equipment for working wood and metal. Fitted with a 600 W induction motor, it delivers steady performance on a 220 V supply. The machine offers 12 spindle speeds, which lets you choose the right setting for different materials and tasks. A spindle speed range of 200 to 2500 rpm makes it a universal tool for a wide range of drilling operations.
المواصفات
| Power | 600 W |
|---|---|
| Voltage | 220/230 V |
| Type electric motor | Asynchronous (induction) |
| Spindle speed | 200 / 280 / 320 / 420 / 480 / 530 / 800 / 1260 / 1320 / 1550 / 2130 / 2500 rpm |
| Min frequency rotation spindle | 200 rpm |
| Max frequency rotation spindle | 2500 rpm |
| Type construction | Vertical drilling |
| Number speeds | 12 |
| Material worked | Wood, metal |
| Cone spindle | MK2/MT2 |
| Max drill bit diameter | 50 mm |
| Distance spindle-base | 545 mm |
| Distance spindle-column | 125 mm |
| Distance spindle-table | 430 mm |
| Size base | 348x215 mm |
| Stroke quill spindle | 60 mm |
| Diameter columns | 60 mm |
| Max diameter shank accessory | 16 mm |
| Worktable size | 196x196 mm |
| Work table length | 196 mm |
| Work table width | 196 mm |
| Type drilling chuck | Quick-clamping |
| Speed control | No |
| Fit drilling chuck | B16 |
| Desktop | Yes |
| Reverse | No |
| Laser guide | No |
| Backlight working zones | No |
| Vise V kit | No |
| Length | 855 mm |
| Width | 530 mm |
| Height | 310 mm |
| Dimensions (unpackaged) | 855x530x310 mm |
| Net weight | 29 kg |
محتويات العبوة
- Drill press - 1 pc.
- Packaging - 1 pc.
التغليف
| الوزن | 29 kg |
|---|
