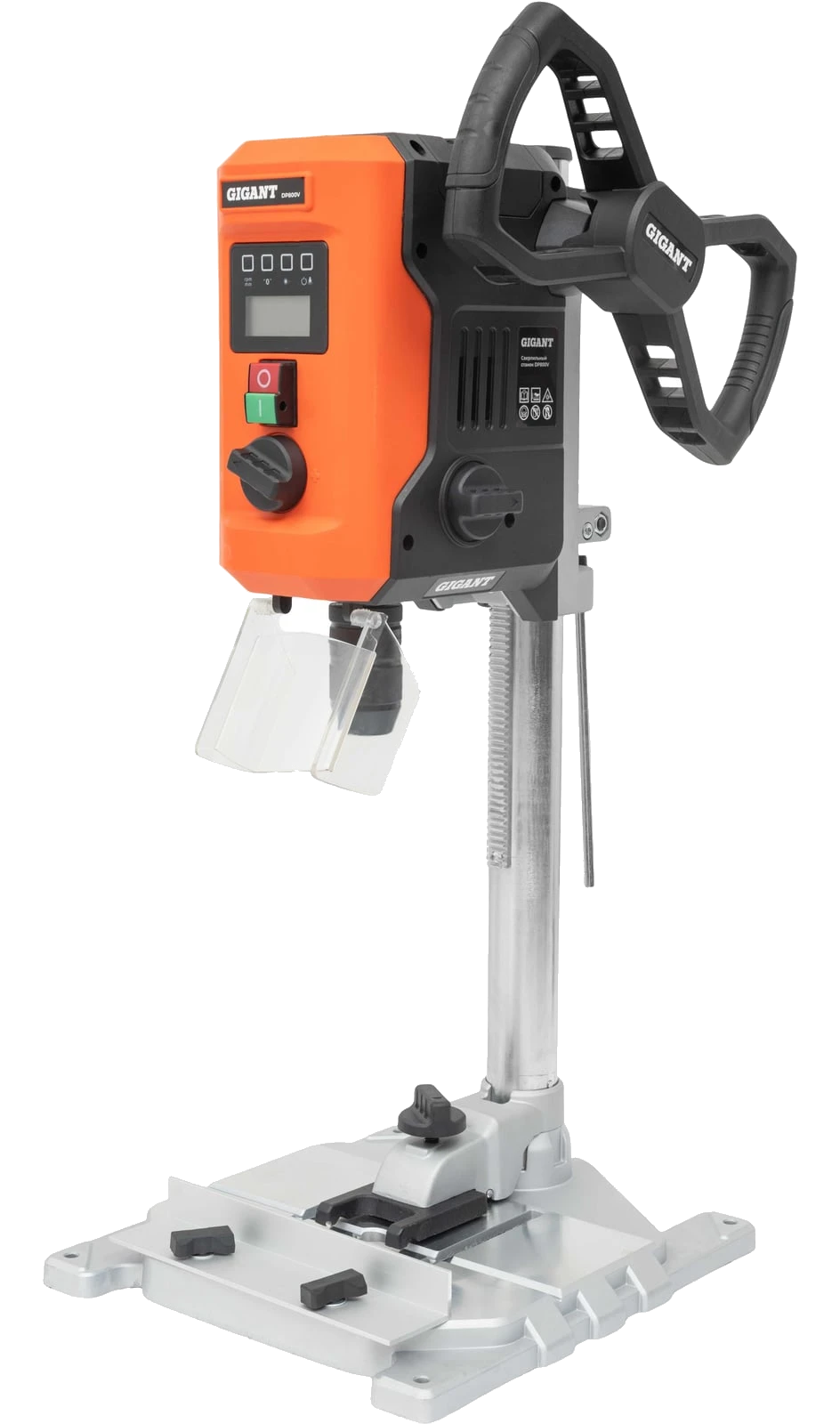

Drill press Vario 2S DP800V
800 WPower 220/230 VVoltage 170-880/490-2600 rpmSpindle speed
An 800 W drill press with stepless speed control from 170 to 2600 rpm for steel, cast iron, aluminum, plastic and wood. The B16 keyless chuck makes tool changes quick.
الوصف
The GIGANT DP800V Vario 2S drill press is reliable equipment for a variety of drilling tasks. With 800 W on a 220 V supply, it delivers steady performance in materials such as steel, cast iron, aluminum, plastic and wood. A spindle speed range of 170 to 2600 rpm allows it to be adapted to different working conditions, and stepless speed control gives accuracy and command over the cut. The machine has a keyless drill chuck with a B16 mount, which makes tool changes simple.
المواصفات
| Power | 800 W |
|---|---|
| Voltage | 220/230 V |
| Spindle speed | 170-880/490-2600 rpm |
| Min frequency rotation spindle | 170 rpm |
| Max frequency rotation spindle | 2600 rpm |
| Type construction | Vertical drilling |
| Number speeds | 2 |
| Material worked | Metal, cast iron, aluminum, plastic, wood |
| Max drill bit diameter | 13 mm |
| Distance spindle-base | 275 mm |
| Distance spindle-column | 125 mm |
| Distance spindle-table | 275 mm |
| Size base | 330x300 mm |
| Stroke quill spindle | 100 mm |
| Diameter columns | 46 mm |
| Min diameter drilling | 1 mm |
| Max diameter shank accessory | 13 mm |
| Worktable size | 330x300 mm |
| Work table length | 330 mm |
| Work table width | 300 mm |
| Type drilling chuck | Quick-clamping |
| Speed control | Stepless |
| Fit drilling chuck | B16 |
| Desktop | Yes |
| Reverse | No |
| Laser guide | No |
| Backlight working zones | No |
| Vise V kit | No |
| Length | 330 mm |
| Width | 300 mm |
| Height | 630 mm |
| Dimensions (unpackaged) | 330x300x630 mm |
| Net weight | 9.5 kg |
محتويات العبوة
- Drill press - 1 pc.
- Packaging - 1 pc.
التغليف
| الوزن | 9.5 kg |
|---|
