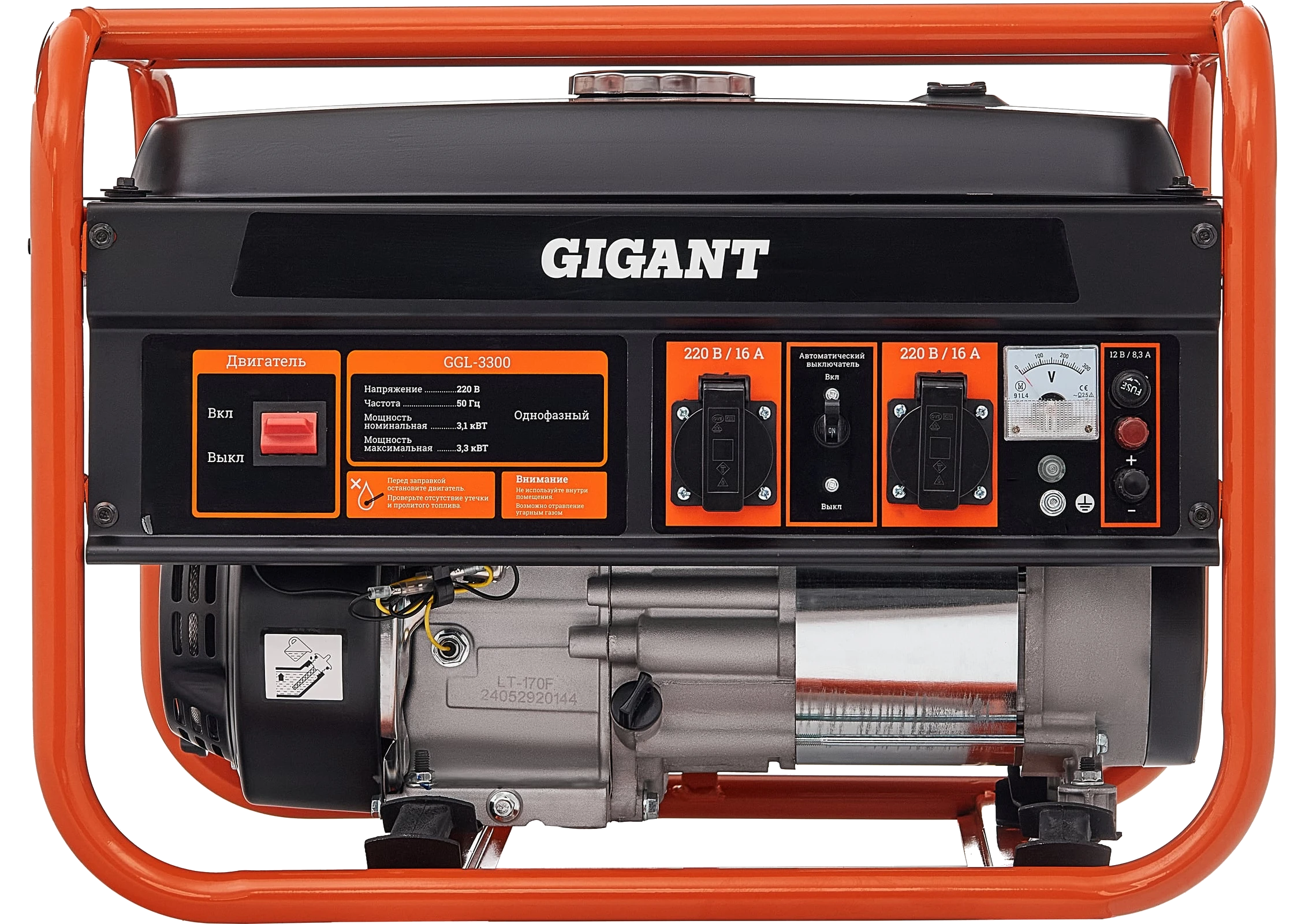

Gasoline generator GGL-3300
220 VVoltage 3.3 kWMax power 3.3 kWMax power at 220 V
Compact gasoline generator supplying single-phase loads of up to 3.3 kW in total: light, protected by a steel frame, for backup and off-grid power.
الوصف
The GGL-3300 gasoline generator is intended for use as a power source away from the mains or in an emergency.
- The generator is light and has a compact housing.
- Single-phase loads with a total power of up to 3.3 kW can be connected.
- The steel frame makes it resistant to impact.
- The ignition keys are kept under the tank cover.
المواصفات
| Type generator | Mobile |
|---|---|
| Type fuel | Gasoline |
| Voltage | 220 V |
| Starter | Recoil starter |
| Max power | 3.3 kW |
| Max power at 220 V | 3.3 kW |
| Rated power at 220 V | 3.1 kW |
| Electrical outlets 380/220/12 V | 0/2/1 pcs |
| Alternator | Synchronous |
| Battery V kit | No |
| Fuel tank capacity | 15 l |
| Fuel consumption | 1.25 l/h |
| Noise level | 69 dB |
| Speed | 3600 rpm |
| Motor/engine type | Four-stroke |
| Model engine | 170F |
| Manufacturer engine | Lutian |
| Engine displacement | 196 cm³ |
| Engine/motor power | 7 hp |
| IP rating | IP23 |
| Force current sockets 380/220/12 | -/16/8.3 A |
| Control voltage | AVR |
| Indicator level fuel | No |
| Meter engine hours | No |
| 12 V output | No |
| Sensor oil | No |
| Euro connector Schuko 230V/10A | No |
| Euro connector Schuko 230V/16A | No |
| Heavy-duty connector CEE 230V/16A | No |
| Heavy-duty connector CEE 230V/32A | No |
| Heavy-duty connector CEE 380V/16A | No |
| Heavy-duty connector CEE 380V/32A | No |
| Container-type | No |
| Auto start | No |
| Spark plug ignition | F7RTC |
| Spark plug ignition (type equivalents) | F7TC/F7RTC/BPR7ES/RN6YC/WR5DC/F7RTS/RN9YC/WR7DC |
| Display | No |
| Winding alternator engine | Copper |
| Type casing | Open |
| Length | 605 mm |
| Width | 435 mm |
| Height | 450 mm |
| Oil tank capacity | 0.6 l |
| With wheels | No |
| With handles | No |
| Net weight | 45 kg |
محتويات العبوة
- Generator
- Manual
- Packaging
التغليف
| الوزن | 45 kg |
|---|
