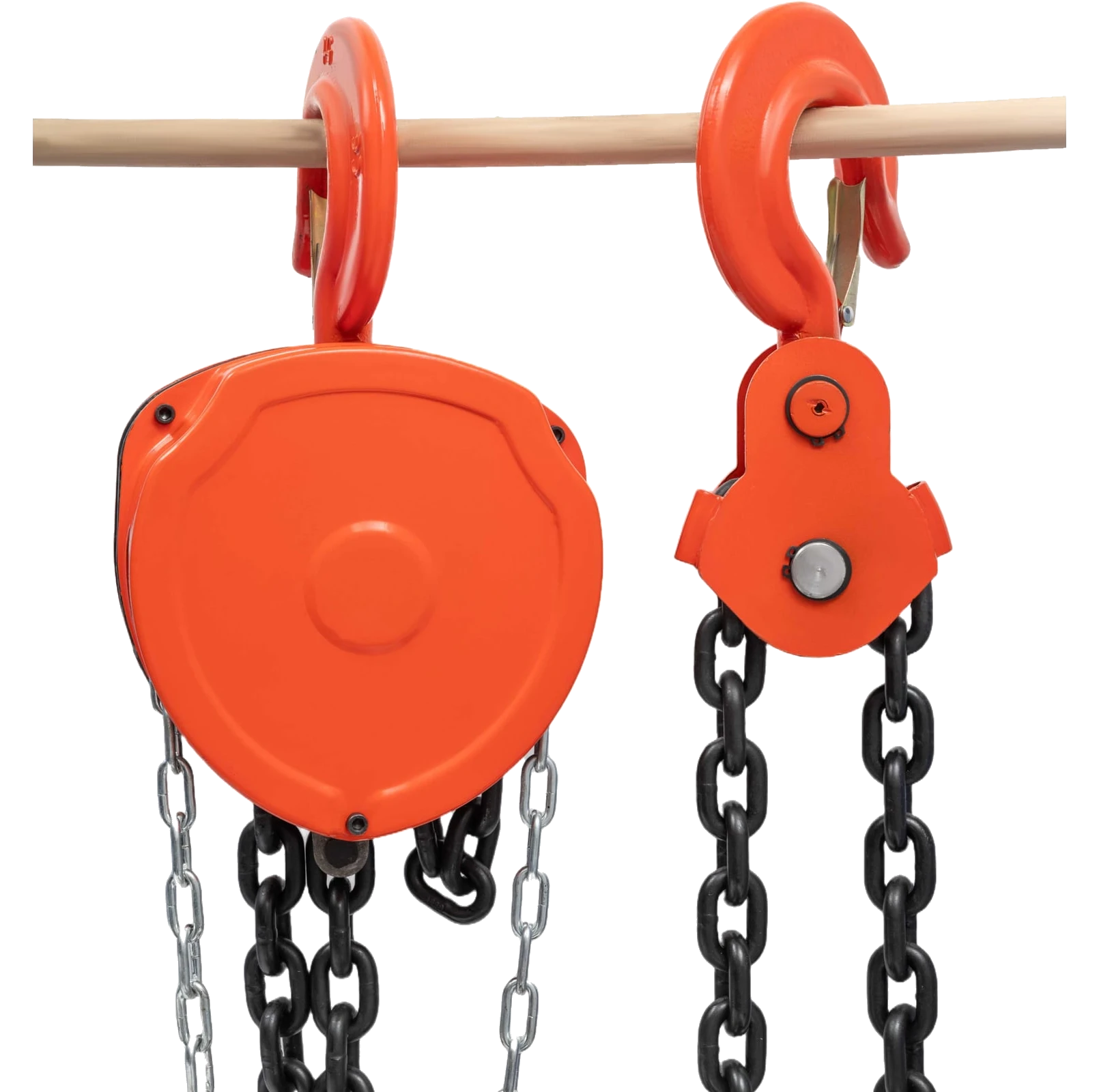

Hand chain hoist CHS-5-3
3 mMax lift height 2Number chains 6 mLength chain
A compact hand chain hoist for lifting building materials and industrial equipment. A needle bearing and hooks with safety latches rule out accidental release of the load.
الوصف
The GIGANT CHS-5-3 chain hoist is a compact yet effective device for lifting building materials and industrial equipment. The model uses a needle bearing for high reliability and a long service life. Its robust chain mechanism and hooks with safety latches rule out accidental release of the load.
المواصفات
| Max lift height | 3 m |
|---|---|
| Number chains | 2 |
| Length chain | 6 m |
| Diameter chain | 10 mm |
| Min distance between hooks | 700 mm |
| Width jaw opening hook | 40 mm |
| Force | 49 kg |
| Load capacity | 5000 kg |
| Lever | No |
| Dimensions (unpackaged) | 370x220x160 mm |
| Net weight | 33.5 kg |
التغليف
| الوزن | 35.7 kg |
|---|
