GPB-12احترافي

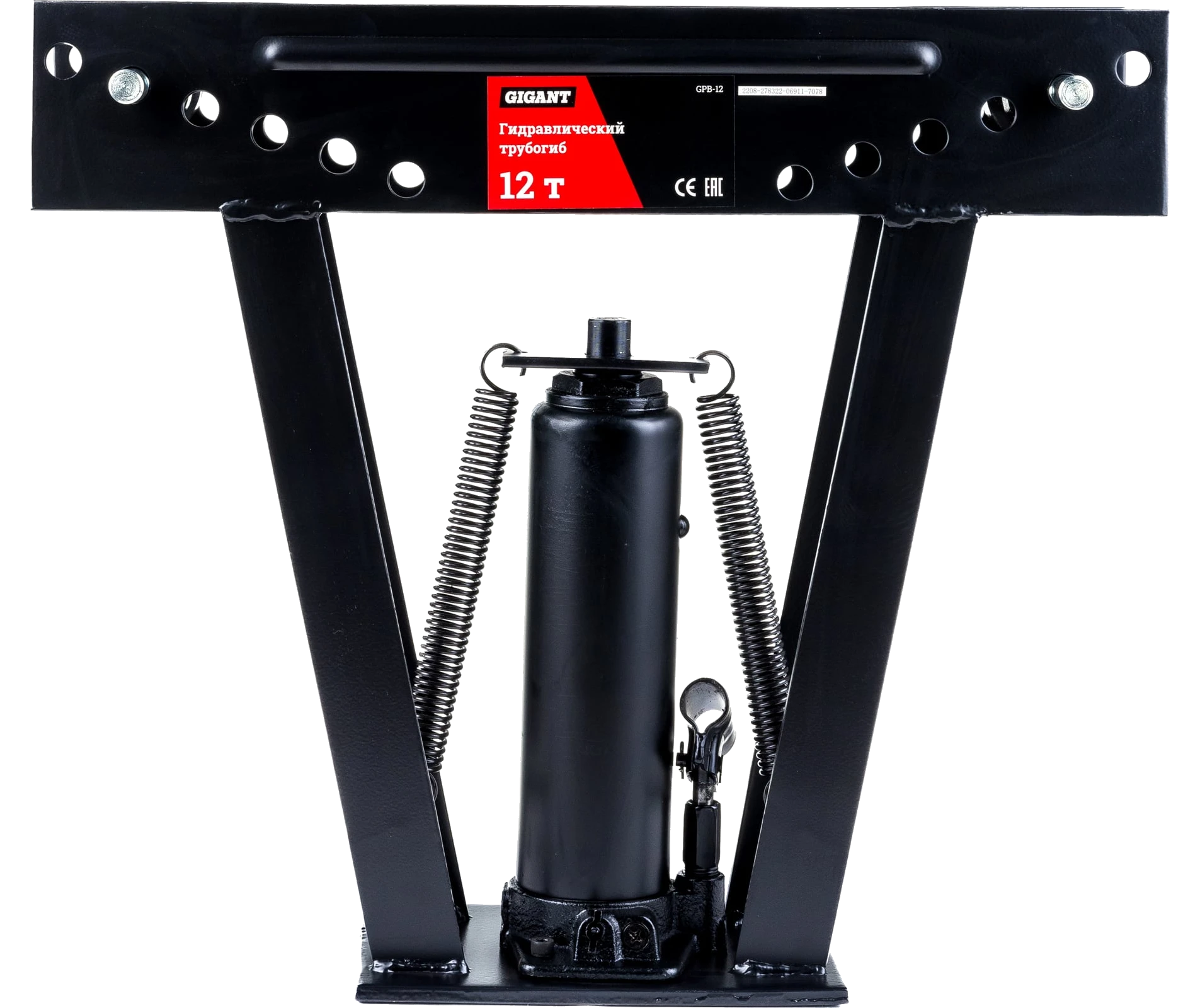

Hydraulic pipe bender 12 t GPB-12
12000 kgMax rod force 257 mmMax rod stroke 90 °Max bending angle
A 12 t hydraulic pipe bender for gas, water and boiler pipes at angles up to 90 degrees. It works in both vertical and horizontal positions and the pipe keeps its full flow capacity.
الوصف
The GIGANT GPB-12 12 t hydraulic pipe bender is designed for work with metal pipes of different diameters. It bends gas, water and boiler pipes through angles of up to 90 degrees. The bender is widely used in industry and in construction. After bending, pipes keep their full flow capacity, so they suit any system, including high-pressure ones.
- The tool works effectively in both vertical and horizontal positions.
- The bender is mobile and simple to operate.
- It delivers a high bending speed.
المواصفات
| Max rod force | 12000 kg |
|---|---|
| Max rod stroke | 257 mm |
| Material worked | Metal |
| Kind | Pipe bender |
| Drive type | Hydraulic |
| Type profile | Wheel |
| Pipe bending diameter | From 1/2" to 2" |
| Bending pipe F 6mm (1/4") | No |
| Bending pipe F 10mm (3/8") | No |
| Bending pipe F 13mm (1/2") | No |
| Bending pipe F 20mm (3/4") | No |
| Bending pipe F 25mm (1") | No |
| Bending pipe F 100mm (4") | No |
| Bending pipe F 125mm (5") | No |
| Bending pipe F 150mm (6") | No |
| Bending pipe F 32mm (1-1/4") | No |
| Bending pipe F 40mm (1-1/2") | No |
| Bending pipe F 50mm (2") | No |
| Bending pipe F 65mm (2-1/2") | No |
| Bending pipe F 80mm (3") | No |
| Bending pipe F 90mm (3-1/2") | No |
| Max bending angle | 90 ° |
| Max thickness wall pipes | 4.5 mm |
| Net weight | 32 kg |
| Dimensions (unpackaged) | 630x550x180 mm |
| Number attachments | 6 pcs |
| Number roller | 2 pcs |
| Working positions | Vertical + horizontal |
محتويات العبوة
- Hydraulic pipe bender;
- Support rollers, 2 pcs.;
- Bending formers (1/2; 3/4; 1; 1 - 1/4; 1 - 1/2; 2) - 6 pcs.;
- Handle;
- User manual;
- Warranty card.
التغليف
| الوزن | 34 kg |
|---|
