Labels and markings on the product shown may differ from those on units supplied to your market.
G-04-09-07منزلي

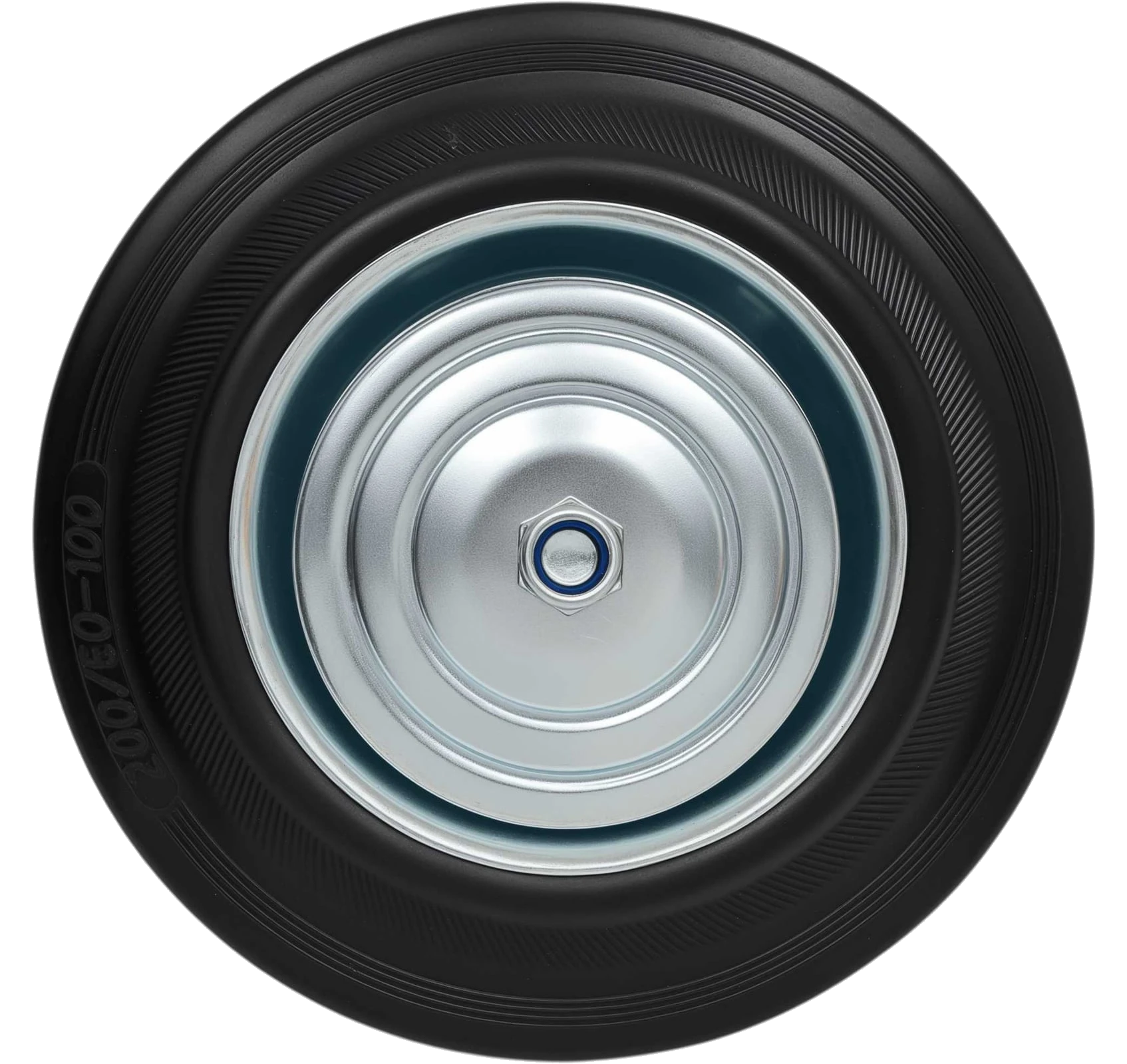

Industrial wheel without bracket 200 mm, rubber/steel G-04-09-07
200 mmDiameter 0.18 tLoad capacity 46 mmThickness
A 200 mm industrial wheel with a rubber tread on a steel rim and a needle bearing. It handles the rough, uneven floors of warehouses and plants, damp environments and outdoor use.
الوصف
The core of the GIGANT G-04-09-07 wheel is made of two galvanized discs joined by strong rivets. All parts are made of high-grade steel. The roller (needle) bearing sits in a press-formed recess and holds cylindrical bearing rollers. The wheel can be used on the relatively rough floors of warehouses, factories, production areas and construction sites. These wheels work on uneven surfaces, in damp environments and outdoors; they are not recommended for use in the presence of organic solvents, chlorinated substances, hydrocarbons or mineral oils.
المواصفات
| Type wheels | Without support |
|---|---|
| Diameter | 200 mm |
| Load capacity | 0.18 t |
| Thickness | 46 mm |
| Type bracket | No |
| Type hub | With roller bearing |
| Application | Industrial |
| Material contact part | Black rubber |
| Disc/base | Steel |
| Bearing | Roller |
| Diameter hub | 20 mm |
| Depth fit bearing | 10 mm |
| Length hub | 55 mm |
| Pneumatic | No |
| Three-wheeled unit | No |
| Min temperature operation | -20 °C |
| Max temperature operation | 70 °C |
| Net weight | 1.6 kg |
التغليف
| الوزن | 1.56 kg |
|---|
