Labels and markings on the product shown may differ from those on units supplied to your market.
GMJLH-5شبه احترافي

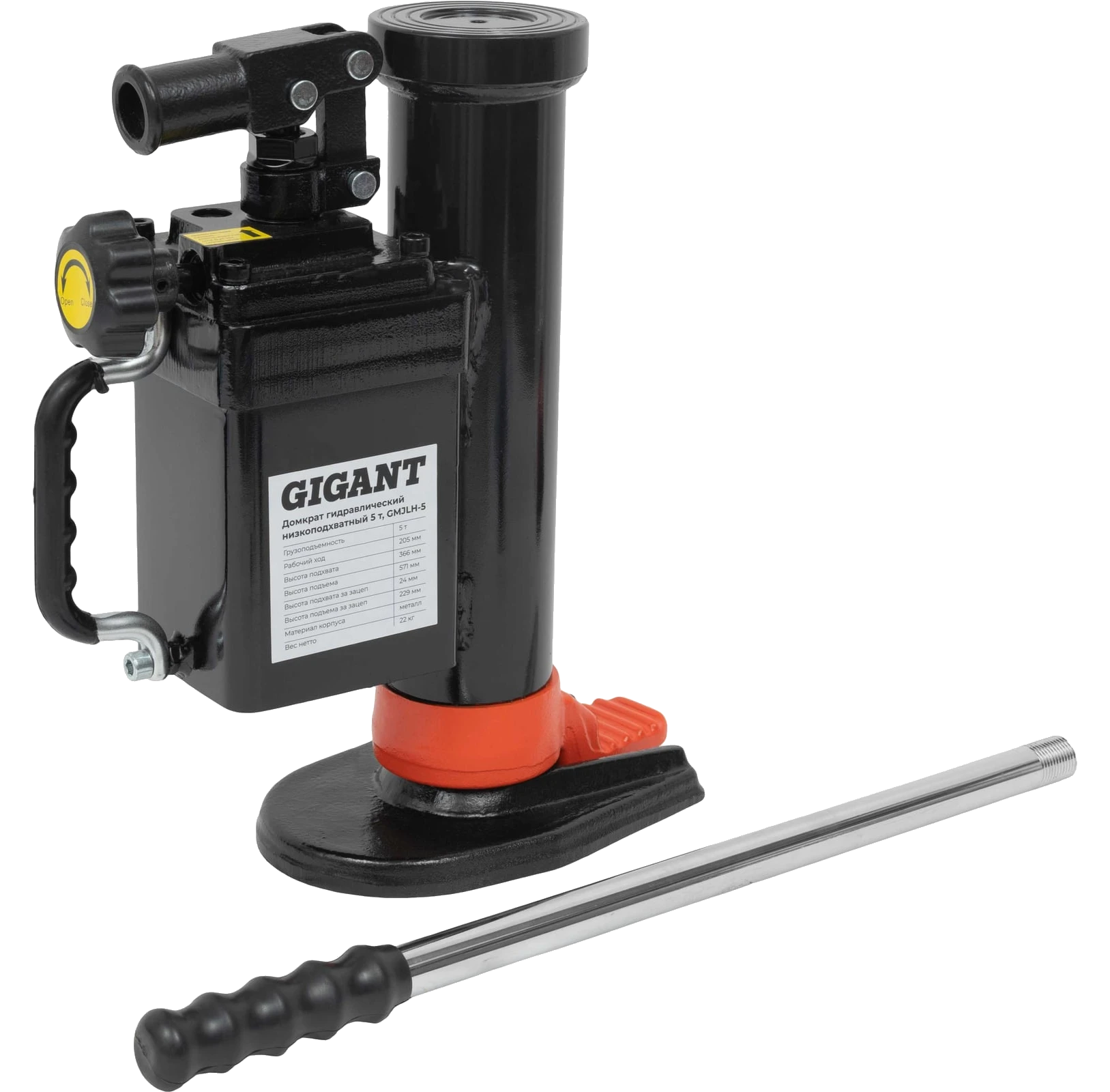

Low-profile hydraulic jack 5 t GMJLH-5
5 tLoad capacity 205 mmWorking stroke 366 mmMin lift height
A hydraulic toe jack with a 5 tonne capacity, a minimum pickup height of 366 mm and a lifting height of up to 571 mm. At 22 kg and 330x138x366 mm it stays mobile enough to move around the workshop.
الوصف
The GIGANT GMJLH-5 low-pickup hydraulic toe jack is a professional lifting device for loads of up to 5 tonnes. It is used in vehicle workshops, service stations and garages for maintaining cars and specialized machinery where the lifting points sit low and the load has to be held securely.
The 5 t toe jack gives convenient access to the load thanks to a minimum pickup height of 366 mm and a toe mechanism that holds the vehicle firmly while it is raised. A lifting height of up to 571 mm and a stroke of 205 mm give a wide working range and precise positioning.
The toe design keeps lifting operations stable and safe. The toe capacity of 5 tonnes makes the jack versatile across a range of repair and maintenance tasks.
The hydraulic drive raises the load smoothly and under control with minimal operator effort, which improves comfort and safety. The sturdy metal body withstands mechanical loads and is built for long service, even under intensive duty.
The 95 mm base diameter keeps the jack stable in use and reduces the risk of it shifting. The 500 mm handle makes the jack easier to operate and cuts physical effort.
Compact dimensions of 330x138x366 mm and a weight of 22 kg make the jack mobile enough for different work areas and convenient to transport.
The GIGANT GMJLH-5 is a dependable choice for professional and household use, providing safe lifting in confined spaces and where access is difficult.
المواصفات
| Jack type | Hook type |
|---|---|
| Load capacity | 5 t |
| Working stroke | 205 mm |
| Min lift height | 366 mm |
| Max lift height | 571 mm |
| Size platform hook | 51x46 mm |
| Height lifting lug per hook | 24 mm |
| Height lifting per hook | 229 mm |
| Load capacity per hook | 5 t |
| Size base | 210x138 mm |
| Support diameter | 95 mm |
| Adjustable foot | No |
| Housing material | Metal |
| Case | No |
| Handle for carrying | No |
| Handle length | 500 mm |
| Drive type | Hydraulic |
| Dimensions (unpackaged) | 330x138x366 mm |
| Net weight | 22 kg |
محتويات العبوة
- Jack - 1 pc.
- Packaging - 1 pc.
التغليف
| الوزن | 17 kg |
|---|
