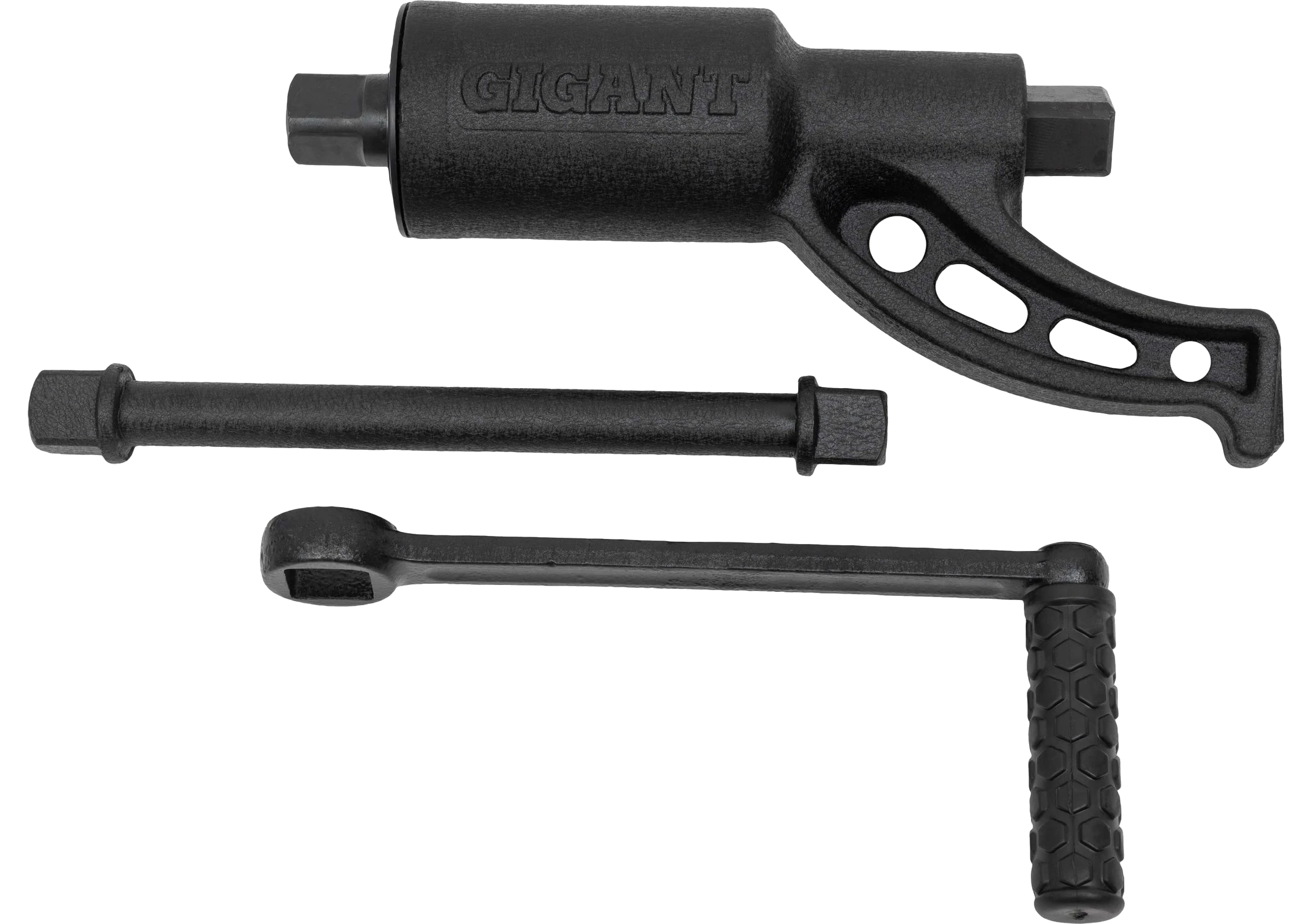

Mechanical torque multiplier, 6400 Nm, 1:64 gear ratio GTQM-2

The GIGANT GTQM-2 torque multiplier, with a maximum torque of 6400 Nm and a 1:64 ratio, is a professional tool for tightening and loosening heavily loaded bolts and nuts. It is particularly effective in tire work on trucks, as the applied force is multiplied 64 times by the three-stage planetary gearbox.

The multiplier itself is 310 mm long and the handle is 255 mm, of which 95.5 mm is rubberized for a secure grip. An extension bar 260 mm long and 20.2 mm in diameter is also supplied, giving access to fasteners in awkward positions.

The largest socket that can be used is 48 mm and the drive square is 1 inch. The tool is made of high-strength materials, which makes it reliable and long-lasting. A reflective boot keeps dirt out of the gearbox, preventing wear and extending the life of the tool.

The GIGANT GTQM-2 torque multiplier comes in a frost-resistant, impact-resistant case for safe storage and transport. The tool weighs 7.3 kg in total.

• Torque multiplier;
• Plastic case;
• Handle bar;
• Operating manual.
