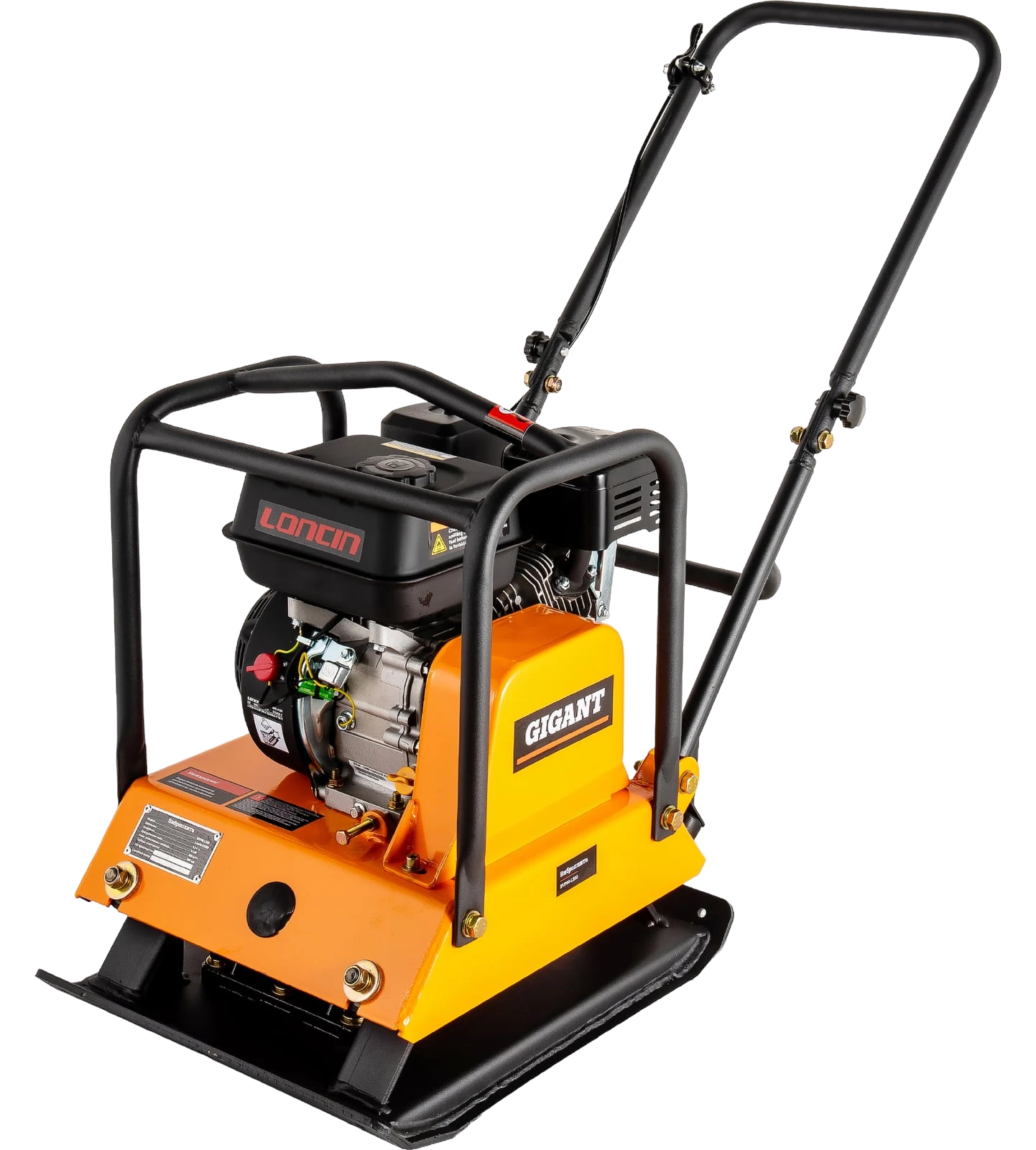

Plate compactor BVP90-L200
300 mmDepth seals 4800 WPower (W) 6.5 hpPower (hp)
A professional plate compactor for compacting sand, crushed stone and asphalt concrete mixes during road surface repair. Supplied with a vibration mat and transport wheels.
الوصف
The GIGANT BVP90-L200 plate compactor is professional construction equipment widely used for road surface repair and for compacting crushed stone, sand and asphalt concrete mixes.
Warning! The engine is shipped without oil. Remember to fill it with oil.
Additional specifications:
- Belt: 13x725Li toothed
- Fuel: 92-octane gasoline
- Engine oil: 10W30; 5W30
- Gear oil: 68#; any gear oil
- Spark plug: E7RTC
- Air filter (element) G120-G200F,LC170F-2/180100167-0001(180100034-0001)
المواصفات
| Motor/engine type | Gasoline |
|---|---|
| Depth seals | 300 mm |
| Power (W) | 4800 W |
| Power (hp) | 6.5 hp |
| Engine | G200F |
| Stroke cycle engine | Four-stroke |
| Manufacturer engine | Loncin |
| Engine displacement | 163 cm³ |
| Fuel tank capacity | 3.6 l |
| Centrifugal force | 15 kN |
| Max sealed area | 600 m²/h |
| Reverse | No |
| Tank for water | No |
| Anti-vibration mat included | No |
| Material plate | Steel |
| Width plate | 440 mm |
| Length plate | 530 mm |
| Dimensions (unpackaged) | 1100x440x900 mm |
| Net weight | 88.5 kg |
محتويات العبوة
- Plate compactor
- Vibration mat
- Transport wheels
- Assembly wrenches
- Manual
التغليف
| الوزن | 93 kg |
|---|
