Labels and markings on the product shown may differ from those on units supplied to your market.
GT-058منزلي

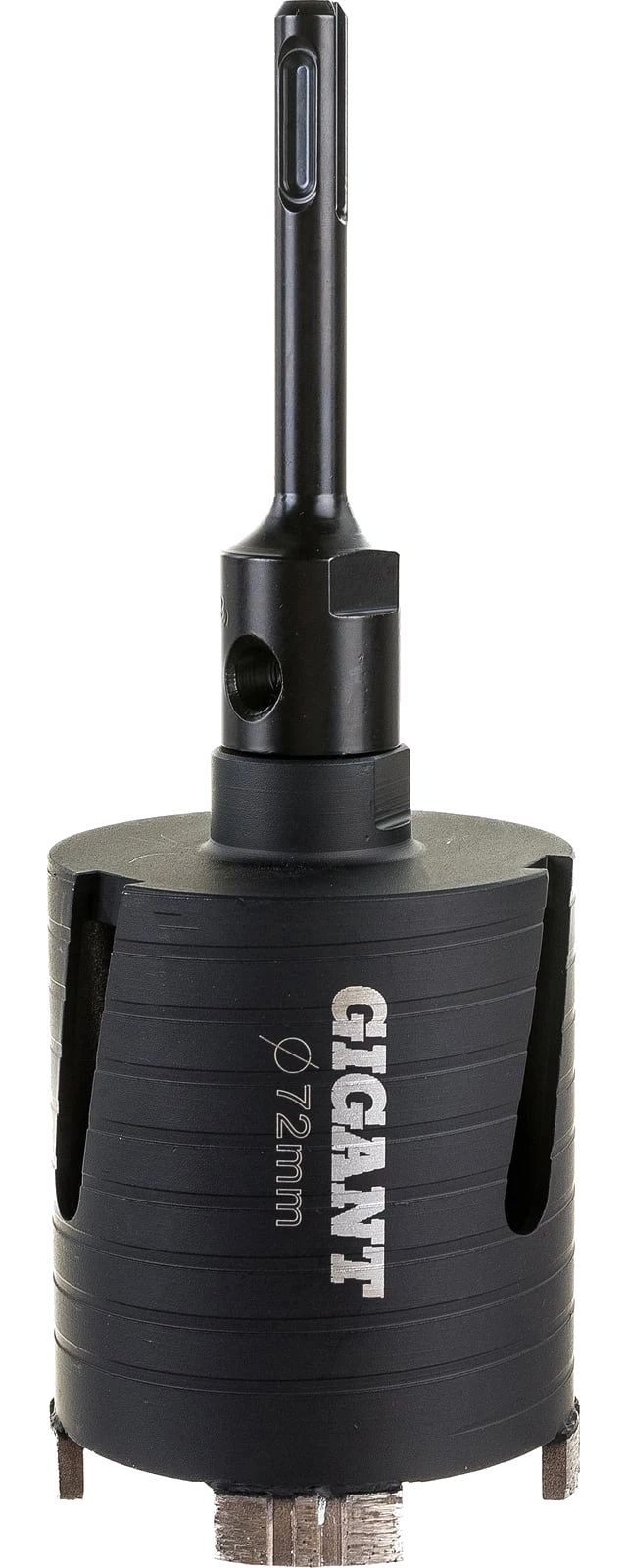

Segmented diamond core bit 72 mm x 4T GT-058
72 mmDiameter 170 mmOverall length 90 mmLength
A 72 mm four-segment diamond core bit for drilling concrete, brickwork and sand-lime brick with a rotary hammer, without hammer mode.
الوصف
The GIGANT GT-058 segmented diamond core bit (72 mm; 4T) is intended for drilling holes in concrete, brickwork and sand-lime brick with a rotary hammer.
Special compensation slots damp vibration, reduce noise appreciably, help the bit cool quickly and are also used to remove the core.
Warning: never use the tool in hammer mode.
المواصفات
| Shank type | SDS-plus |
|---|---|
| Cut type | Dry (with or without coolant) |
| Diameter | 72 mm |
| Overall length | 170 mm |
| Length | 90 mm |
| Working length | 60 mm |
| Collapsible | Yes |
| Shank | Yes |
| Centring drill | Yes |
| Bore diameter | M16 |
| Number of cutting elements | 4 pcs |
| Cutting element type | Diamond segments |
| Impact drilling | No |
| Diamond | No |
| For stone | No |
| For concrete | No |
| For reinforced concrete | No |
| For brick | No |
| For granite | No |
| For porcelain tile | No |
| With micro-impact | No |
| Dimensions (unpackaged) | 170×72×72 mm |
| Net weight | 0.65 kg |
التغليف
| الوزن | 0.71 kg |
|---|
