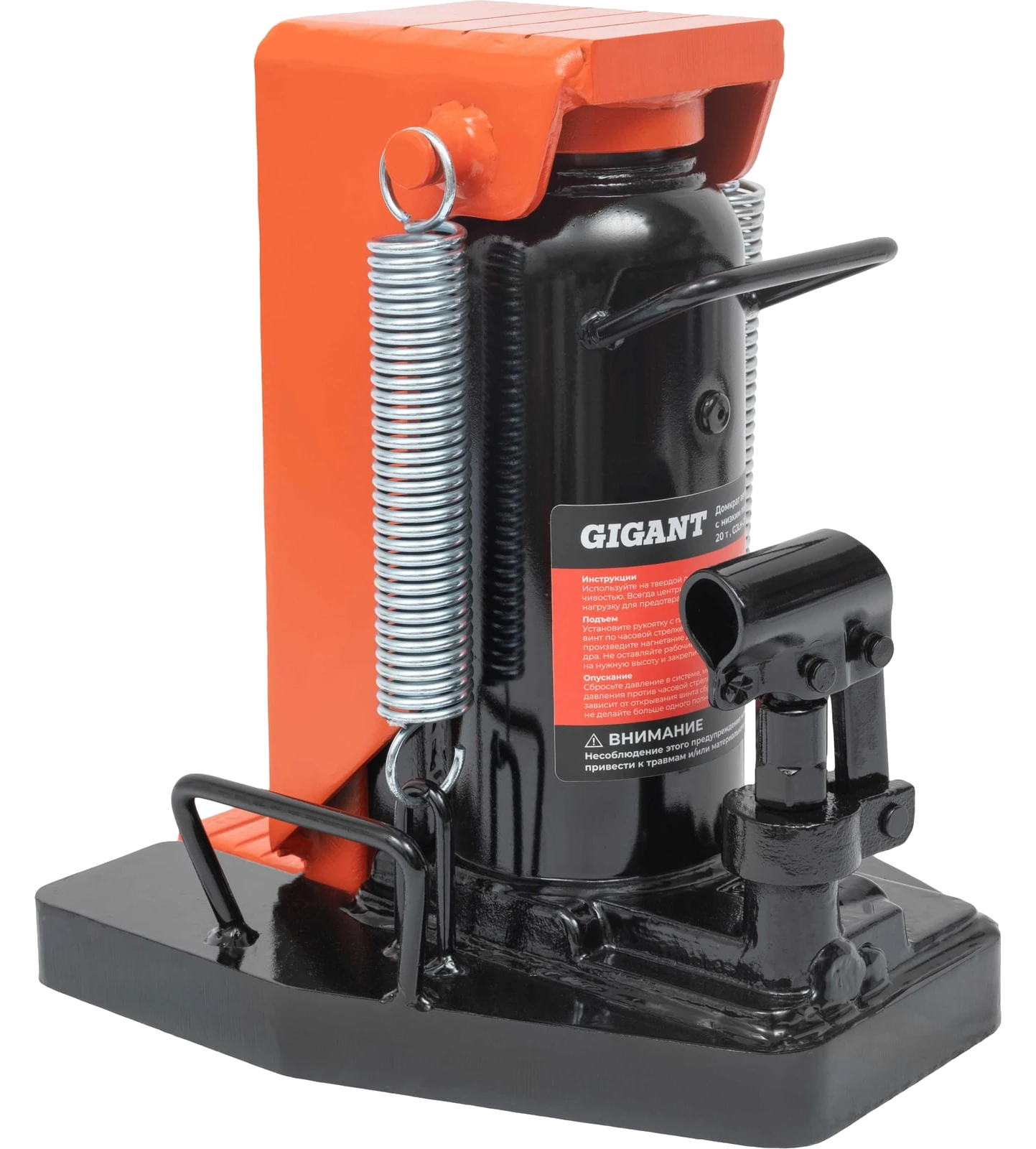

Self-contained low-profile jack 20 t GJLH-20
20 tLoad capacity 145 mmWorking stroke 32 mmMin lift height
A 20 t hydraulic toe jack with a 32 mm minimum pickup and a lift of up to 475 mm, 10 t on the toe and a 645 mm handle for heavy machinery.
الوصف
This self-contained low-profile toe jack is a powerful hydraulic lifting device built for heavy loads of up to 20 t. It is used in vehicle service centers, service stations and industry to lift trucks and special machinery and to carry out repair and installation work in confined spaces.
The 20 t low-profile hydraulic jack delivers a reliable, safe lift thanks to a minimum pickup height of only 32 mm, which allows it to serve machines with low ground clearance and complex chassis designs. A lift height of up to 475 mm broadens the range of applications, while the working stroke of 145 mm keeps operations smooth and precise.
The toe-type design guarantees secure fixing of the load and stability during the lift. Capacity on the toe is 10 t, which makes the unit versatile for various kinds of heavy machinery and industrial equipment.
The hydraulic drive provides a smooth lift with minimum operator effort, improving safety and ease of use. The sturdy metal body withstands high loads and mechanical stress and is built for a long service life in intensive use.
The extended handle, 645 mm long, makes the jack easier to control and reduces physical effort when handling heavy loads. Compact dimensions of 287 x 240 x 330 mm and a carrying handle make the equipment easy to transport and store.
A stable base guarantees a steady structure during the lift, which improves job safety. The jack suits professional use in demanding conditions, including the repair of trucks, special machinery and industrial equipment.
المواصفات
| Jack type | Hook type |
|---|---|
| Load capacity | 20 t |
| Working stroke | 145 mm |
| Min lift height | 32 mm |
| Max lift height | 475 mm |
| Size platform hook | 85x60 mm |
| Height lifting lug per hook | 32 mm |
| Height lifting per hook | 177 mm |
| Load capacity per hook | 10 t |
| Size base | 285x240 mm |
| Support diameter | No mm |
| Adjustable foot | No |
| Housing material | Metal |
| Case | No |
| Handle for carrying | No |
| Handle length | 645 mm |
| Drive type | Hydraulic |
| Dimensions (unpackaged) | 287x240x330 mm |
| Net weight | 37.5 kg |
محتويات العبوة
- Jack - 1 pc.
- Packaging - 1 pc.
التغليف
| الوزن | 34.4 kg |
|---|
