GES-125شبه احترافي

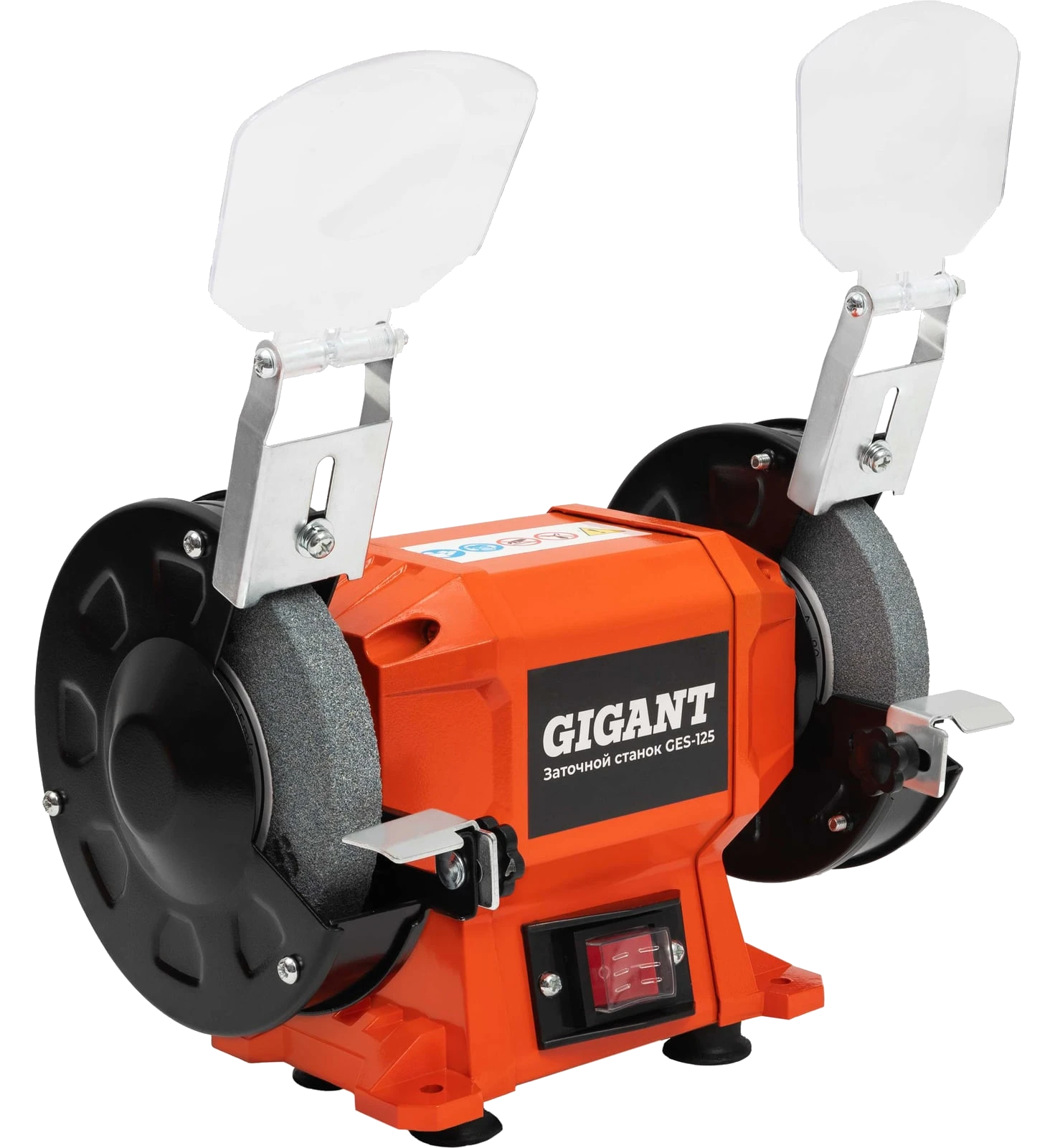

Sharpening machine D-125 mm GES-125
125 mmDisc diameter 150 WEngine/motor power 220 VVoltage
Bench grinder with 125 mm wheels for sharpening and grinding cutting tools and metal workpieces. Extended motor service life, compact housing and low weight.
الوصف
The GES-125 bench grinder with 125 mm wheels is intended for workshops and small-batch production. It is used to sharpen and grind metal workpieces and cutting tools.
This model has an extended motor service life, a compact housing and low weight.
المواصفات
| Disc diameter | 125 mm |
|---|---|
| Engine/motor power | 150 W |
| Type | For tools |
| Drive type | Electric |
| Type electric motor | Asynchronous (induction) |
| Transmission | Straight |
| Voltage | 220 V |
| Frequency rotation grind. disc | 2950 rpm |
| Speed control | No |
| Grit disc | 60/80 |
| Bore diameter | 12.7 mm |
| Thickness disc | 16 mm |
| Size sharpening disc | 125 mm |
| Size second sharpening disc | 125 mm |
| Thickness second disc | 16 mm |
| Mounting diameter second disc | 12.7 |
| Switch emergency stop | No |
| Backlight | No |
| Presence of protective screen | No |
| With resistant | No |
| With vacuum cleaner | No |
| With low-speed wheel (wet sharpening/grinding) | No |
| With engraver | No |
| Dimensions (unpackaged) | 285x175x200 mm |
| Net weight | 4.5 kg |
| Frequency rotation second grind. disc | 2950 rpm |
محتويات العبوة
- Bench grinder - 1 pc.
- Guard - 2 sets
- Tool rest - 2 sets
- Operating manual
- Packaging
التغليف
| الوزن | 5.1 kg |
|---|
