Labels and markings on the product shown may differ from those on units supplied to your market.
GES-200شبه احترافي

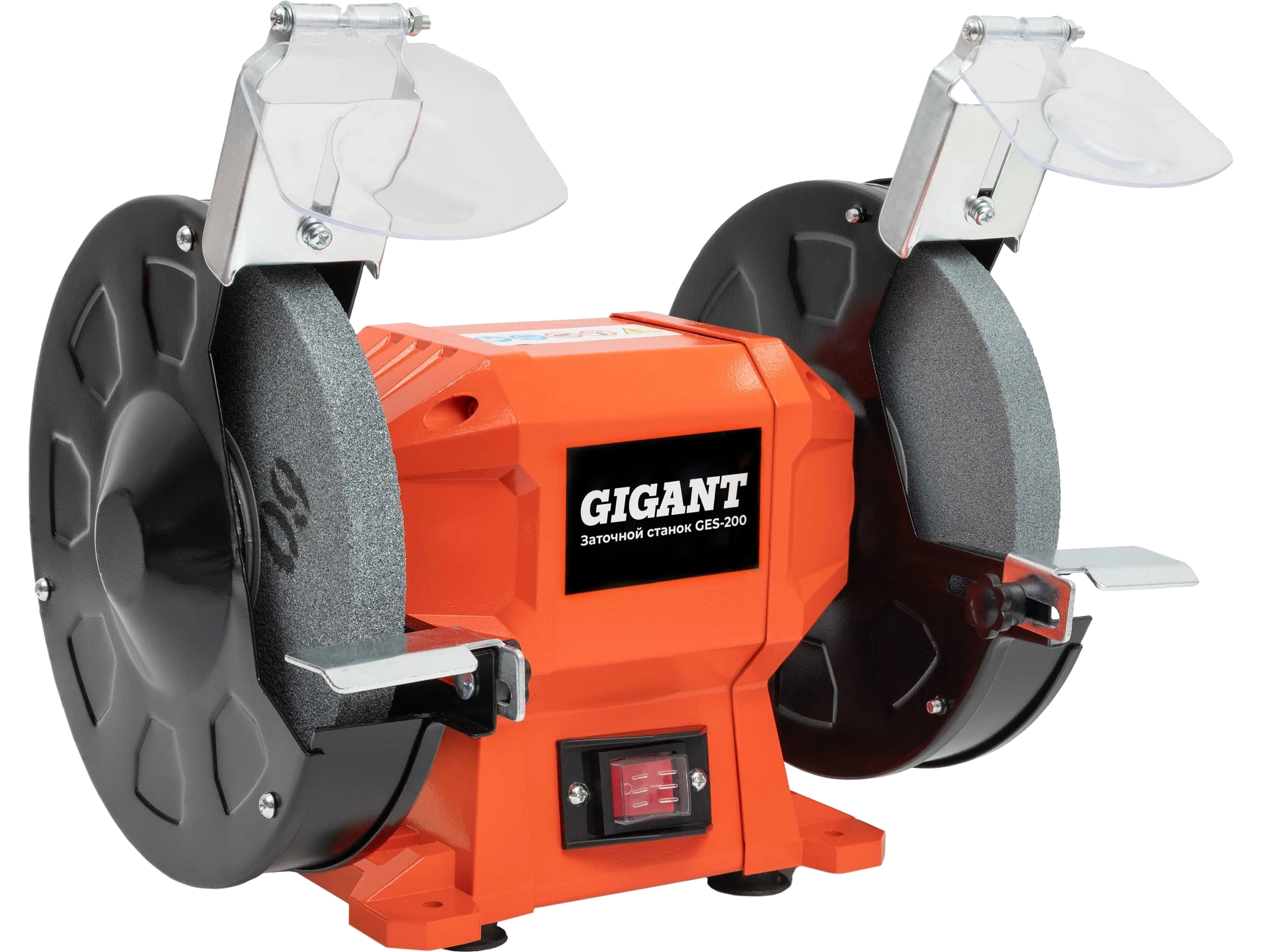

Sharpening machine D-200 mm GES-200
200 mmDisc diameter 400 WEngine/motor power 220 VVoltage
Bench grinder with 200 mm wheels for grinding and sharpening cutting tools and metal workpieces. Compact housing and a dust-protected switch.
الوصف
The GES-200 bench grinder with 200 mm wheels is intended for grinding and sharpening cutting tools and metal workpieces.
The grinder is used in workshops and in small-batch production.
This model has a compact housing and a dust-protected switch.
المواصفات
| Disc diameter | 200 mm |
|---|---|
| Engine/motor power | 400 W |
| Type | For tools |
| Drive type | Electric |
| Type electric motor | Asynchronous (induction) |
| Transmission | Straight |
| Voltage | 220 V |
| Frequency rotation grind. disc | 2950 rpm |
| Speed control | No |
| Grit disc | 60/80 |
| Bore diameter | 32 mm |
| Thickness disc | 20 mm |
| Size sharpening disc | 200 mm |
| Size second sharpening disc | 200 mm |
| Thickness second disc | 20 mm |
| Mounting diameter second disc | 32 |
| Switch emergency stop | No |
| Backlight | No |
| Presence of protective screen | No |
| With resistant | No |
| With vacuum cleaner | No |
| With low-speed wheel (wet sharpening/grinding) | No |
| With engraver | No |
| Dimensions (unpackaged) | 360x258x260 mm |
| Net weight | 9.9 kg |
| Frequency rotation second grind. disc | 2950 rpm |
محتويات العبوة
- Bench grinder - 1 pc
- Abrasive grinding wheel (fitted) - 2 pcs
- Guard - 2 sets
- Tool rest - 2 sets
- Adapter bushings - 2 pcs
- Operating manual - 1 pc
- Packaging
التغليف
| الوزن | 9.9 kg |
|---|
