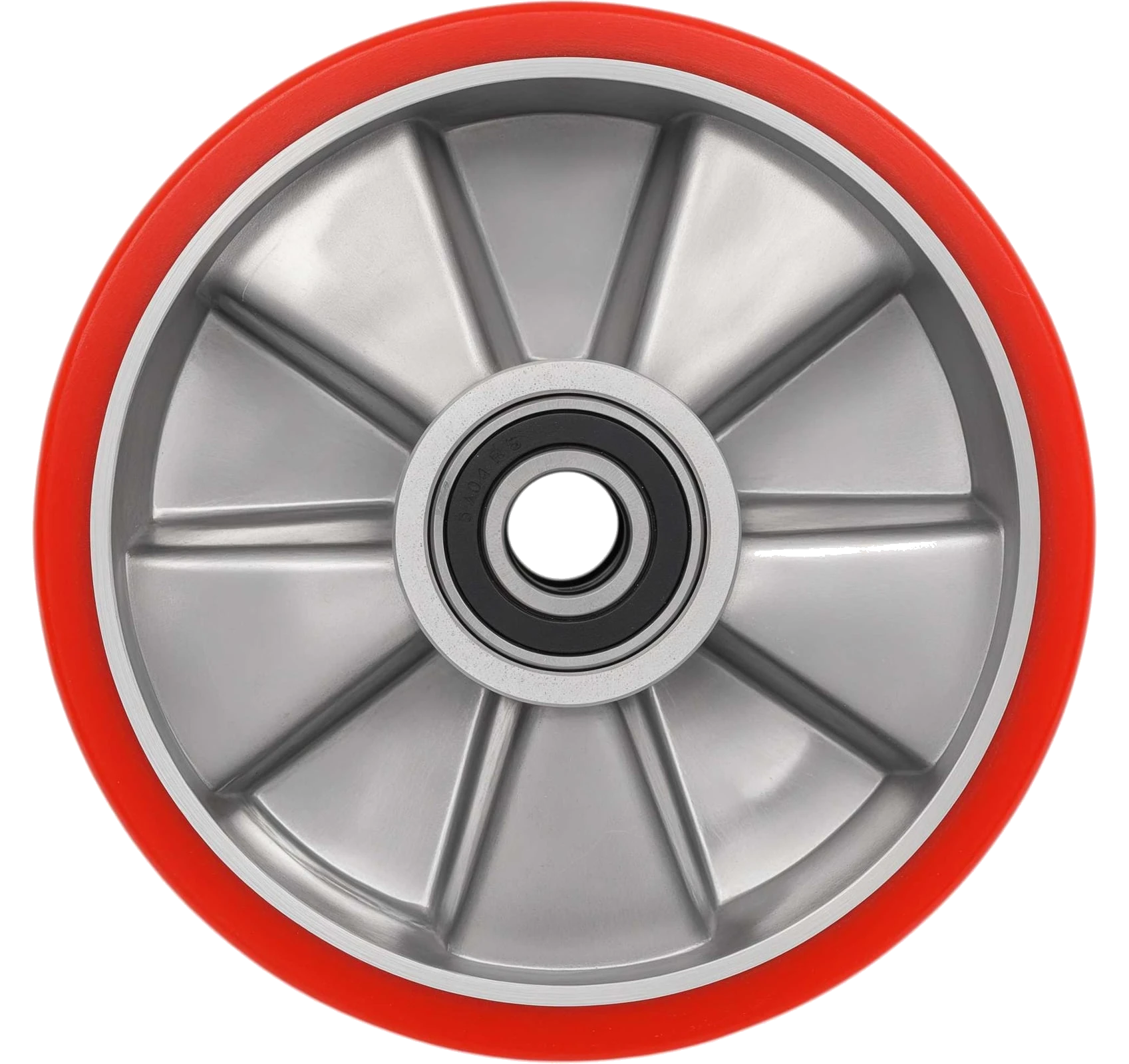

Wheel for hydraulic pallet trucks with ball bearing 180 mm, PU/aluminum G-04-09-11
180 mmDiameter 1 tLoad capacity 50 mmThickness
المواصفات
| Type wheels | Without support |
|---|---|
| Diameter | 180 mm |
| Load capacity | 1 t |
| Thickness | 50 mm |
| Type bracket | No |
| Type hub | With ball bearing |
| Application | For hydraulic trucks |
| Material contact part | Polyurethane |
| Disc/base | Aluminum |
| Bearing | 6204 |
| Diameter hub | 20 mm |
| Depth fit bearing | 11 mm |
| Length hub | 50 mm |
| Pneumatic | No |
| Three-wheeled unit | No |
| Min temperature operation | -25 °C |
| Max temperature operation | 50 °C |
| Net weight | 1.1 kg |
التغليف
| الوزن | 1.1 kg |
|---|
