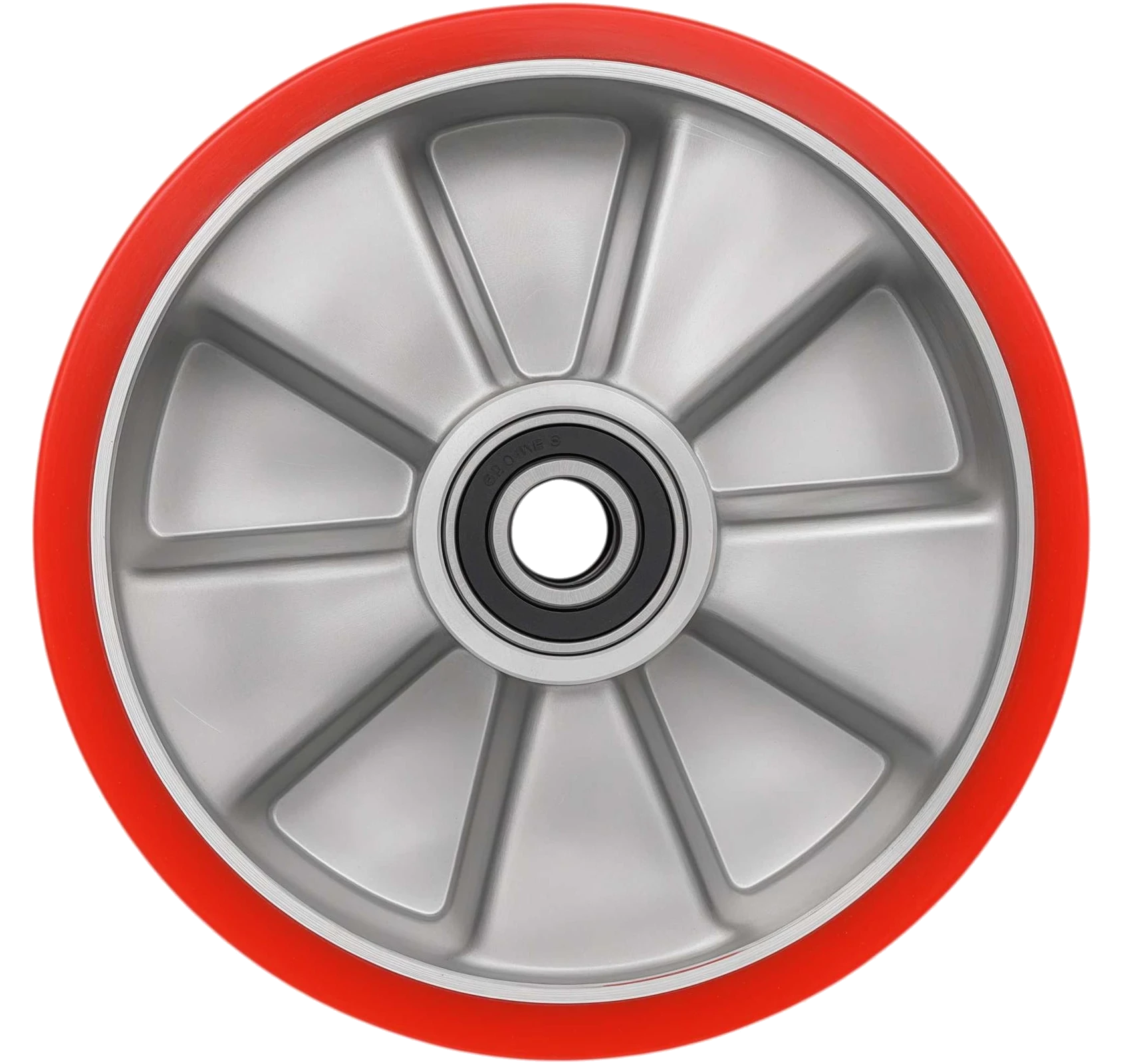

Wheel for hydraulic pallet trucks with ball bearing 200 mm, PU/aluminum G-04-09-12
200 mmDiameter 1.2 tLoad capacity 50 mmThickness
المواصفات
| Type wheels | Without support |
|---|---|
| Diameter | 200 mm |
| Load capacity | 1.2 t |
| Thickness | 50 mm |
| Type bracket | No |
| Type hub | With ball bearing |
| Application | For hydraulic trucks |
| Material contact part | Polyurethane |
| Disc/base | Aluminum |
| Bearing | 6204 |
| Diameter hub | 20 mm |
| Depth fit bearing | 14 mm |
| Diameter hole under bearing | 47 mm |
| Length hub | 50 mm |
| Pneumatic | No |
| Three-wheeled unit | No |
| Min temperature operation | -25 °C |
| Max temperature operation | 50 °C |
| Net weight | 1.4 kg |
التغليف
| الوزن | 1.35 kg |
|---|
