GMSB-150Semi-professional

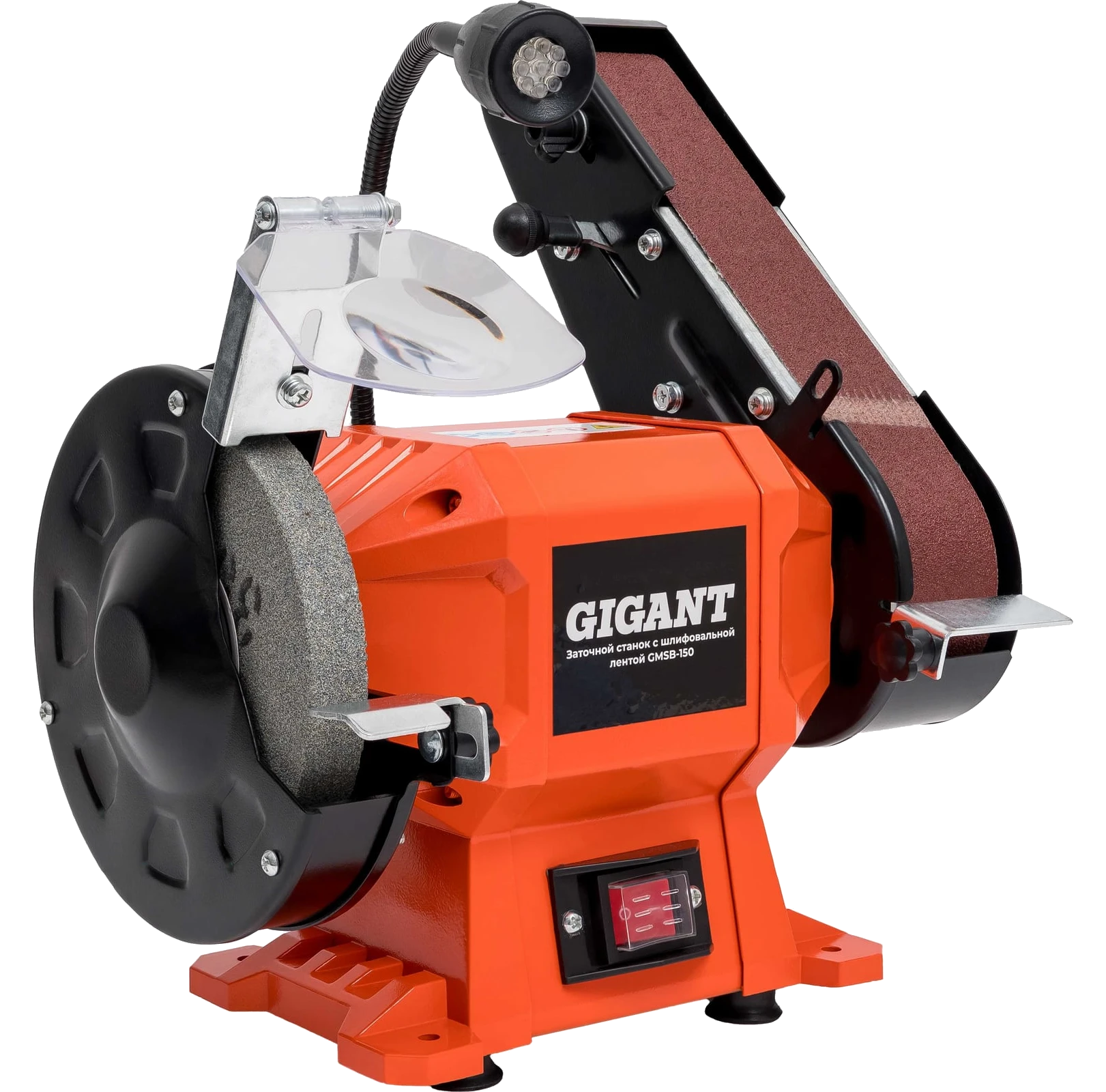

Belt sharpening machine, 150 mm belt GMSB-150
300 WEngine/motor power 220 VVoltage 2950 rpmSpindle speed
A bench grinder combining an abrasive wheel with a D-150 mm sanding belt for sharpening tools and grinding metal workpieces. A guard and tool rest are fitted, and the motor is built for long service.
Description
The GIGANT GMSB-150 bench grinder with a D-150 mm sanding belt is used for sharpening and grinding tools and metal workpieces.
The machine suits workshop use and small-scale production.
The model has a long-life motor and a robust build.
Specifications
| Type | For tools |
|---|---|
| Engine/motor power | 300 W |
| Voltage | 220 V |
| Type electric motor | Asynchronous (induction) |
| Transmission | Straight |
| Spindle speed | 2950 rpm |
| Frequency rotation grind. disc | 2950 rpm |
| Speed control | No |
| Grit disc | 60 |
| Sharpened drill bit diameter | 20 mm |
| Disc diameter | 150 mm |
| Bore diameter | 32 mm |
| Thickness disc | 20 mm |
| Belt length | 686 mm |
| Belt width | 50 mm |
| Size disc | 150 mm |
| Diameter dust extraction hole | 0 mm |
| Backlight | Yes |
| Wheel dresser | No |
| Backlight | No |
| Presence of protective screen | No |
| With resistant | No |
| With vacuum cleaner | No |
| With low-speed wheel (wet sharpening/grinding) | No |
| With engraver | No |
| Length | 420 mm |
| Width | 345 mm |
| Dimensions (unpackaged) | 420x345x215 mm |
| Net weight | 8.4 kg |
| Frequency rotation second grind. disc | 2950 rpm |
Package contents
- Bench grinder 1 pc.
- Abrasive grinding wheel (fitted) 1 pc.
- Sanding belt (fitted) 1 pc.
- Guard 1 set
- Tool rest 1 set
- User manual 1 pc.
- Packaging
Packaging
| Weight | 8.9 kg |
|---|
