CACH-10Household

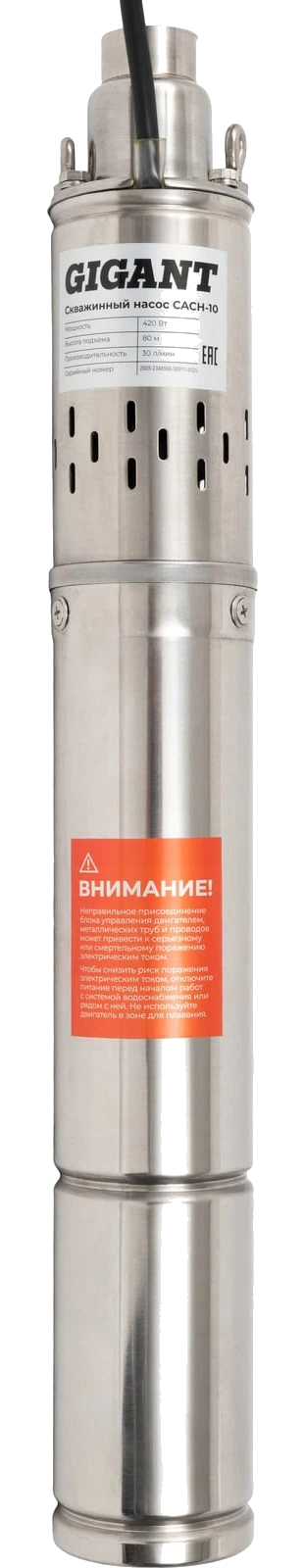

Borehole pump CACH-10
230 VVoltage 420 WPower 50 HzFrequency
A borehole pump for boreholes from 100 mm in diameter: chrome-plated screw, stainless steel housing and IPX8 protection for the electrical parts.
Description
The GIGANT CACH-10 borehole pump fits boreholes from 100 mm in diameter. The pump screw is chrome-plated and the housing is stainless steel. IPX8 protection keeps the pump sealed and protects the electrical parts from water when the pump is lowered to depth.
Specifications
| Series | Vodomet |
|---|---|
| Type | Borehole |
| Kind | Submersible |
| Design | Screw-type |
| Voltage | 230 V |
| Power | 420 W |
| Frequency | 50 Hz |
| Max lift height | 80 m |
| Depth immersion | 20 m |
| Pressure | 7.9 atm |
| Max pressure | 7.9 atm |
| Class protection | IP58 |
| Performance | 30 l/min |
| Pipe connection | G1 inch |
| Diameter pump | 75 mm |
| Min borehole diameter | 100 mm |
| Housing material | Stainless steel |
| Intake water | Top |
| Protection from dry stroke | No |
| Max temperature liquid | 40 °C |
| Min level water | 150 mm |
| Material impeller | Rubber |
| For increase pressure | No |
| Protection from overheating | No |
| Soft start | No |
| Connector V kit | No |
| Connector V kit1 | No |
| Connector V kit2 | No |
| Connector V kit3 | No |
| Cable length | 20 m |
| Dimensions (unpackaged) | 58x9x14.5 mm |
| Net weight | 6.9 kg |
Package contents
- Pump;
- Power cord;
- Manual;
- Packaging.
Packaging
| Weight | 5 kg |
|---|
