Labels and markings on the product shown may differ from those on units supplied to your market.
GGP-20Household

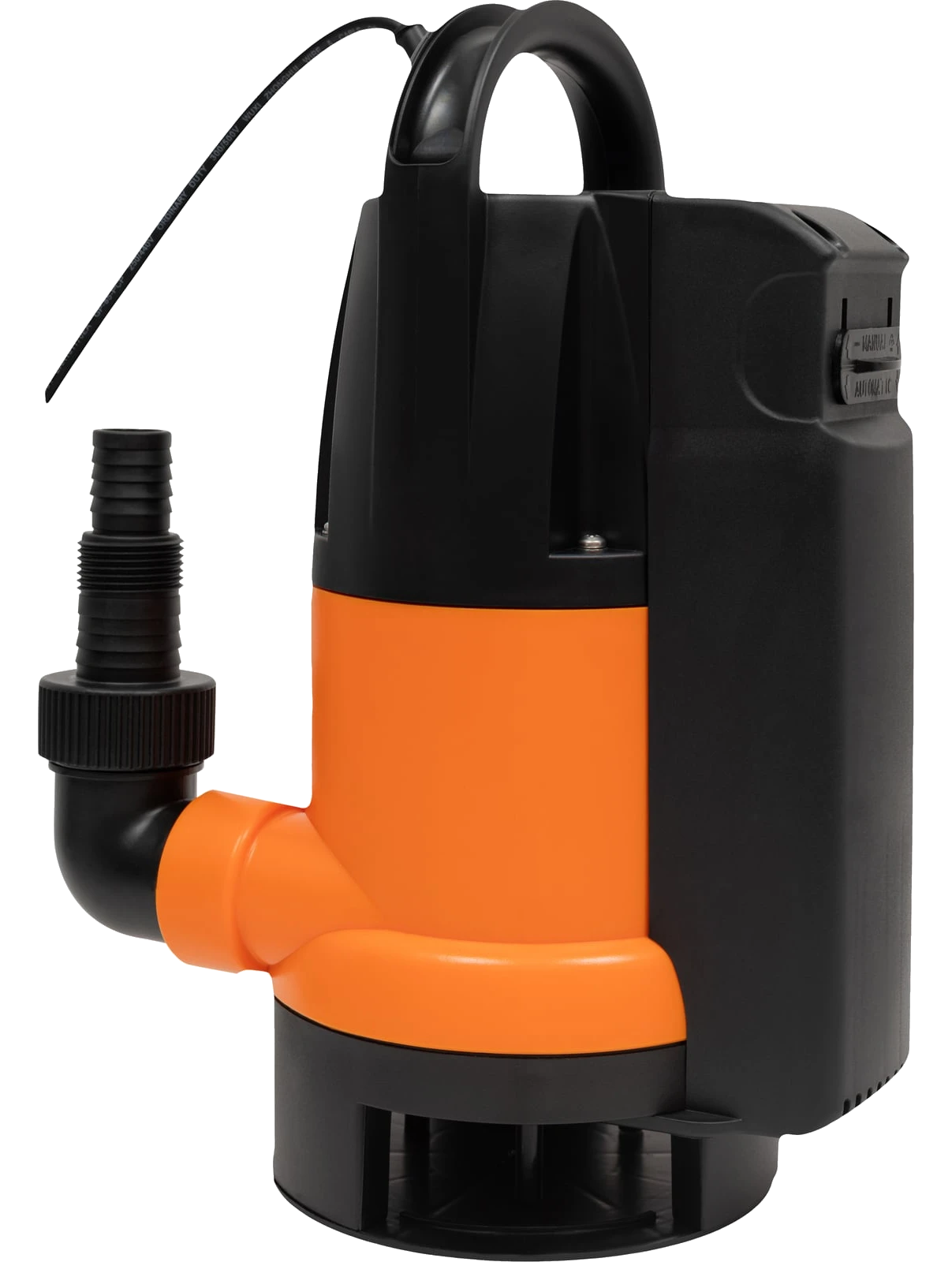

Dirty water drainage pump GGP-20
258 l/minPerformance 35 mmPermissible diameter solid particles 900 WPower
Submersible pump for dirty water: up to 258 l/min at a head of up to 8 m, passes solids up to 35 mm, with a built-in float switch and a sealed IPX8 housing.
Description
The GGP-20 submersible pump for dirty water delivers up to 258 l/min at a head of up to 8 m. Its single-phase motor is reliable and built for a long working life.
The model is intended for draining dirty water from basements, drawing water for technical needs from open reservoirs and emptying drainage pits. It passes solids up to 35 mm across. The outlet diameter is 1.5".
A float built into the body lets the pump work in tight spaces. Automatic operation is its main mode; the pump can also run in manual mode with the float switch turned off, which allows pumping down to the minimum water level.
The housing is made of impact-resistant plastic and the assembly is sealed, with an IPX8 protection rating. Power supply: 220 V, 50 Hz.
Specifications
| Series | DN |
|---|---|
| Type | Drainage, for dirty water |
| Kind | Submersible |
| Type power | Mains |
| Number batteries V kit | No pcs |
| Performance | 258 l/min |
| Permissible diameter solid particles | 35 mm |
| Design | Centrifugal |
| Power | 900 W |
| Voltage | 220 V |
| Class protection | IPX8 |
| Max lift height | 8 m |
| Depth immersion | 7 m |
| Pressure | 0.8 atm |
| Max pressure | 0.8 atm |
| Pipe connection | G1 1/2 internal inch |
| Housing material | Plastic |
| Intake water | Bottom |
| Protection from dry stroke | Float switch |
| Max temperature liquid | 35 °C |
| Residual level water | 40 mm |
| Connector V kit | External G1; barb 1 1/4; barb 1 |
| Connector V kit1 | G1 external |
| Connector V kit2 | Herringbone 1 1/4 |
| Connector V kit3 | Barb fitting 1 |
| Material impeller | Plastic |
| For increase pressure | No |
| Cable length | 8 m |
| Dimensions (unpackaged) | 220x160x390 mm |
| Net weight | 4.5 kg |
Package contents
- Assembled pump - 1 pc;
- Hose adapter - 1 pc;
- Operating manual - 1 pc;
- Packaging - 1 pc.
Packaging
| Weight | 4.85 kg |
|---|
