DV 125Professional

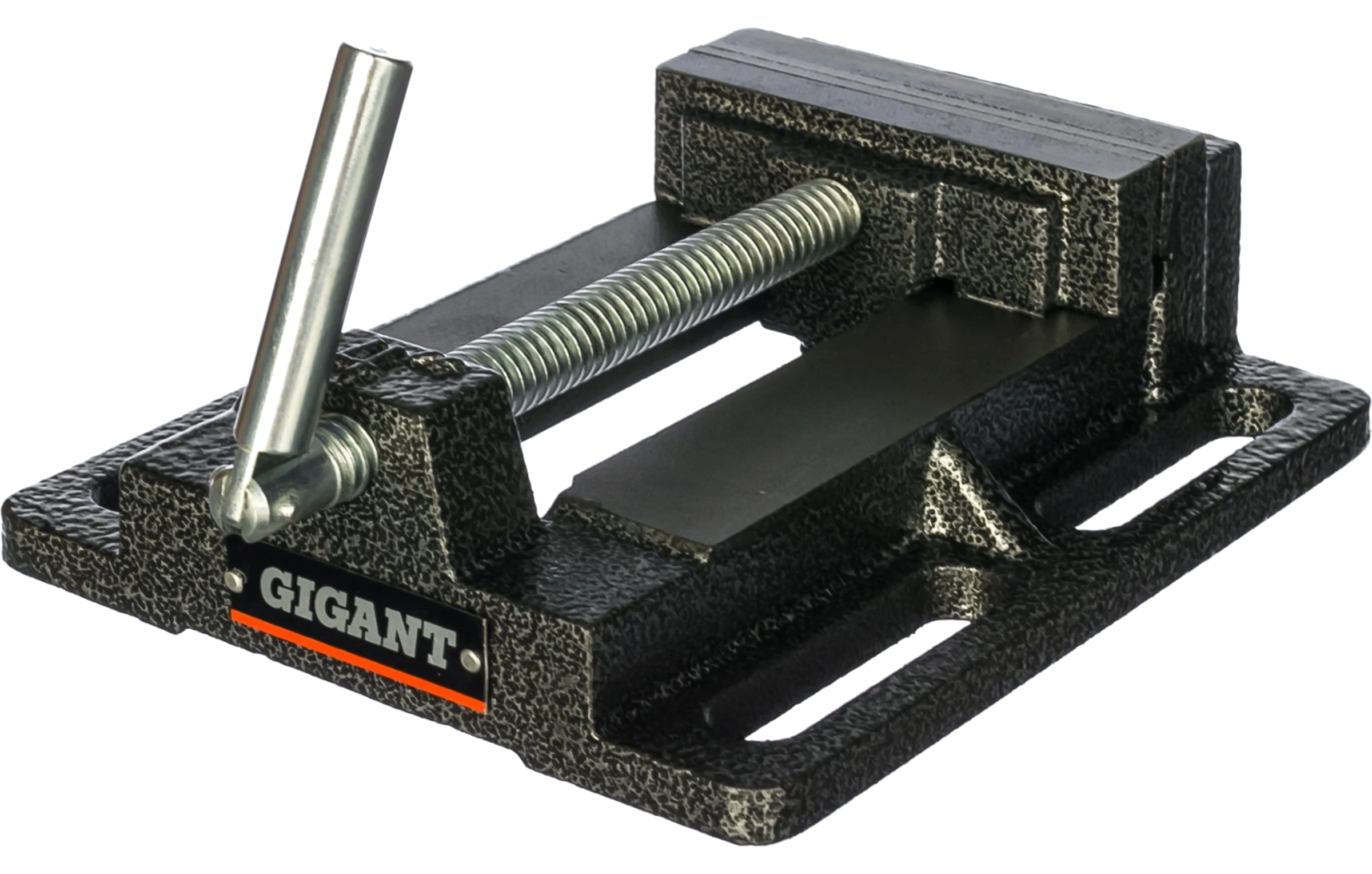

Drill press vise DV 125
128 mmWorking stroke 125 mmJaw width 186x245x59 mmDimensions (unpackaged)
A drill press vise for holding workpieces on a drilling machine. Its sturdy cast iron body and 9.6 kN clamping force keep the part firmly in place.
Description
The GIGANT DV 125 drill press vise is designed to clamp workpieces on drilling machines. The model has a compact, sturdy body that resists mechanical damage.
- Center distance - 140 mm.
- Clamping force - 9.6 kN.
- Material - cast iron
- Jaw height - 18 mm
- Slot width - 14 mm
Specifications
| Application | For drill presses |
|---|---|
| Type | Machine |
| Type vise | Fixed (non-swivel) |
| Swivel function | No |
| Working stroke | 128 mm |
| Jaw width | 125 mm |
| Housing material | Cast iron |
| Jaw material | Steel |
| Quick-clamp | No |
| Dimensions (unpackaged) | 186x245x59 mm |
| Net weight | 4.3 kg |
Package contents
- Vise;
- Packaging.
Packaging
| Weight | 4.365 kg |
|---|
