GGL-1100Household

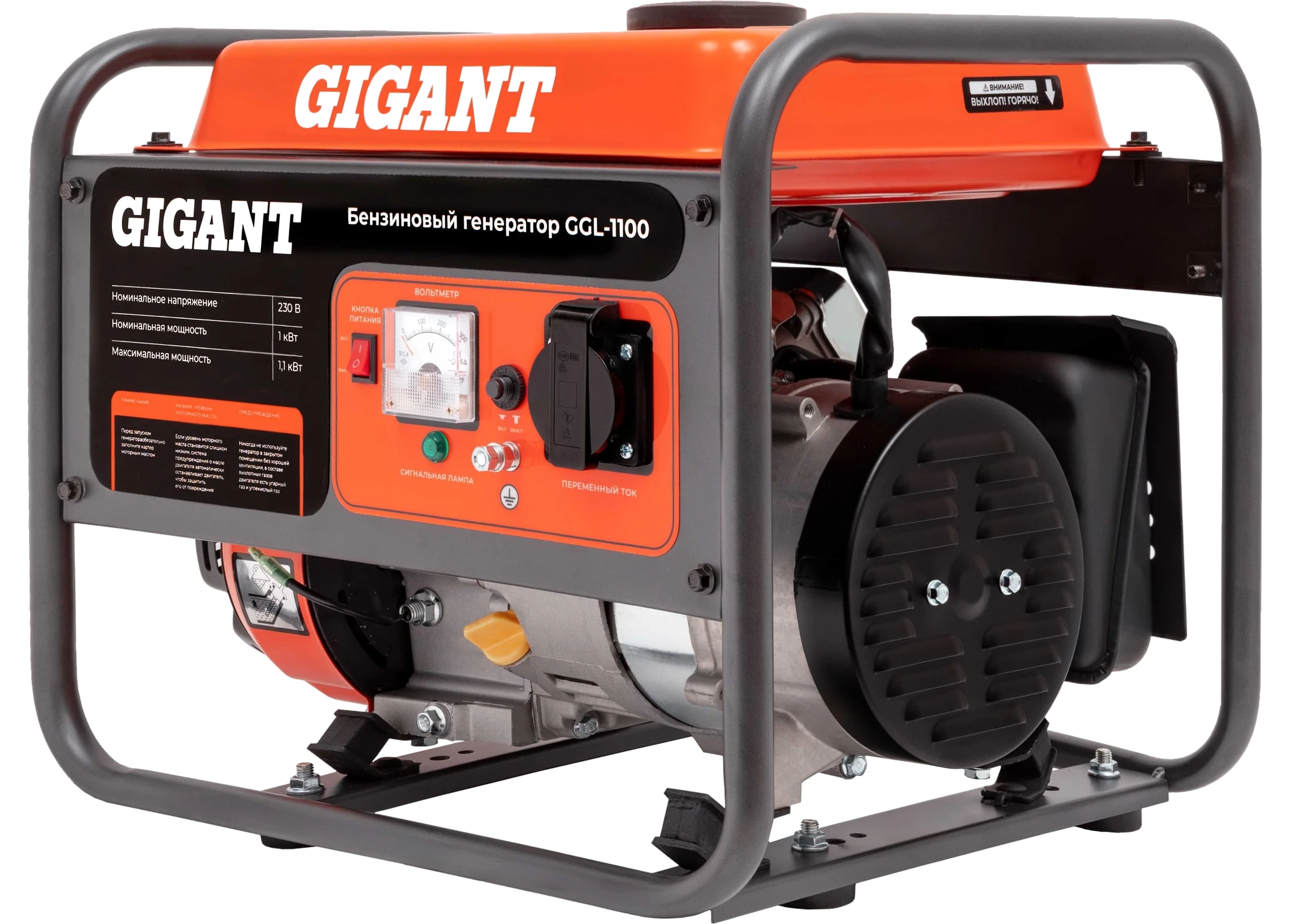

Gasoline generator GGL-1100
220 VVoltage 1.1 kWMax power 1.1 kWMax power at 220 V
Compact gasoline generator for powering appliances off the grid: light in weight, with a voltmeter, overload and short-circuit protection and fuel and oil level indicators.
Description
The GGL-1100 gasoline generator is a small unit for powering appliances outdoors or at a country house. It is compact and light. All the necessary protection is provided: against overload and against short circuit. Fuel and oil level indicators show when it is time to refill.
Note: this model is supplied without a 12 V output.
- Easy voltage monitoring - the unit has a voltmeter that shows the output voltage at a glance.
- Protected internals - the steel frame shields the internal parts of the generator from mechanical damage.
- Long run time - the large fuel tank lets the unit run for a long time between refills.
- Long service life - the generator is driven by a powerful four-stroke overhead-valve engine with a high service life.
Specifications
| Type generator | Mobile |
|---|---|
| Type fuel | Gasoline |
| Voltage | 220 V |
| Starter | Recoil starter |
| Max power | 1.1 kW |
| Max power at 220 V | 1.1 kW |
| Rated power at 220 V | 1 kW |
| Electrical outlets 380/220/12 V | -/1/- pcs |
| Alternator | Synchronous |
| Battery V kit | No |
| Fuel tank capacity | 4.8 l |
| Fuel consumption | 0.6 l/h |
| Noise level | 65 dB |
| Speed | 3200 rpm |
| Motor/engine type | Four-stroke |
| Model engine | LT156F |
| Manufacturer engine | GIGANT |
| Engine displacement | 93.5 cm³ |
| Engine/motor power | 2.86 |
| IP rating | IP23 |
| Control voltage | Compound (conventional) |
| Indicator level fuel | No |
| Meter engine hours | No |
| 12 V output | No |
| Sensor oil | No |
| Euro connector Schuko 230V/10A | No |
| Euro connector Schuko 230V/16A | No |
| Heavy-duty connector CEE 230V/16A | No |
| Heavy-duty connector CEE 230V/32A | No |
| Heavy-duty connector CEE 380V/16A | No |
| Heavy-duty connector CEE 380V/32A | No |
| Container-type | No |
| Auto start | No |
| Spark plug ignition | E6TC |
| Spark plug ignition (type equivalents) | LR15YC/HQT-7/F6RTC/BP6ES/BPR6ES/W20EP-U/BPR4ES |
| Display | No |
| Winding alternator engine | Aluminum |
| Type casing | Open |
| Length | 460 mm |
| Width | 365 mm |
| Height | 395 mm |
| Oil tank capacity | 0.37 l |
| With wheels | No |
| With handles | No |
| Net weight | 24 kg |
Packaging
| Weight | 24.2 kg |
|---|
