GGL-8000ESSemi-professional

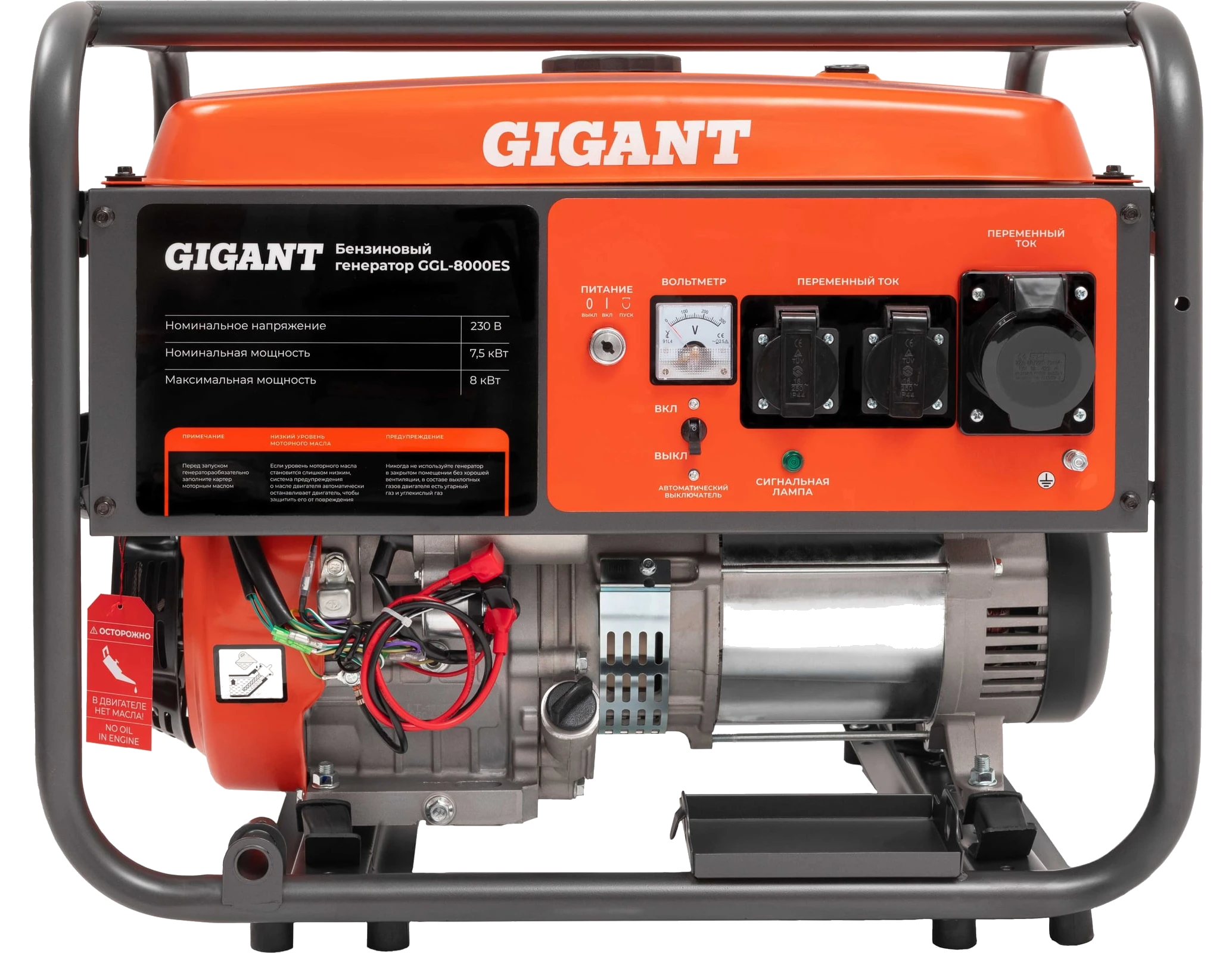

Gasoline generator GGL-8000ES
220 VVoltage 8 kWMax power 8 kWMax power at 220 V
7.5 kW gasoline generator with recoil and electric start: enough output for a small house or a welding machine, with overload, short-circuit and low-oil protection.
Description
The GGL-8000ES is one of the most powerful generators in the range. It has enough output to supply a small private house or a welding machine. The unit can serve as a backup source of electricity that keeps all systems running during an outage, or as an AC source for construction tools of every kind on sites with no mains supply.
What sets the GGL-8000ES apart:
- High output of 7.5 kW.
- Reliable four-stroke single-cylinder engine with an extended service life.
- Runs on unleaded gasoline with an octane rating of 92 RON. With gas equipment installed, propane or propane-butane can be used.
- Recoil starting and electric starting from a battery allow the unit to be started in any conditions.
- The rubber mounts supplied reduce the vibration that builds up during operation.
- Comprehensive protection against overload, low oil and short circuit keeps the generator running safely for a long time.
- The unit weighs 80 kg.
The GGL-8000ES is a reliable modern generator and a full-featured AC source. Keep it at home in case of an outage, or use it in places with no mains supply at all.
Note: the generator is supplied without a battery.
Specifications of a compatible battery:
- Dimensions: 157x107x167
- Voltage, V: 12
- Capacity (minimum), Ah: 9
- Terminal type: M6
Specifications
| Type generator | Mobile |
|---|---|
| Type fuel | Gasoline |
| Voltage | 220 V |
| Starter | Recoil starter/electric starter |
| Max power | 8 kW |
| Max power at 220 V | 8 kW |
| Rated power at 220 V | 7.5 kW |
| Electrical outlets 380/220/12 V | -/3/- pcs |
| Alternator | Synchronous |
| Battery V kit | No |
| Fuel tank capacity | 25 l |
| Fuel consumption | 3.8 l/h |
| Noise level | 91 dB |
| Speed | 3600 rpm |
| Motor/engine type | Four-stroke |
| Model engine | 192F |
| Manufacturer engine | GIGANT |
| Engine displacement | 439 cm³ |
| Engine/motor power | 17 hp |
| IP rating | IP23 |
| Control voltage | AVR |
| Indicator level fuel | No |
| Meter engine hours | No |
| 12 V output | No |
| Sensor oil | No |
| Euro connector Schuko 230V/10A | No |
| Euro connector Schuko 230V/16A | No |
| Heavy-duty connector CEE 230V/16A | No |
| Heavy-duty connector CEE 230V/32A | No |
| Heavy-duty connector CEE 380V/16A | No |
| Heavy-duty connector CEE 380V/32A | No |
| Container-type | No |
| Auto start | No |
| Spark plug ignition | F7TC |
| Spark plug ignition (type equivalents) | F7TC/F7RTC/BPR7ES/RN6YC/WR5DC/F7RTS/RN9YC/WR7DC |
| Display | No |
| Winding alternator engine | Copper |
| Type casing | Open |
| Length | 700 mm |
| Width | 570 mm |
| Height | 560 mm |
| Oil tank capacity | 1.1 l |
| With wheels | No |
| With handles | No |
| Net weight | 80 kg |
Packaging
| Weight | 80 kg |
|---|
