Labels and markings on the product shown may differ from those on units supplied to your market.
PLM-01Household

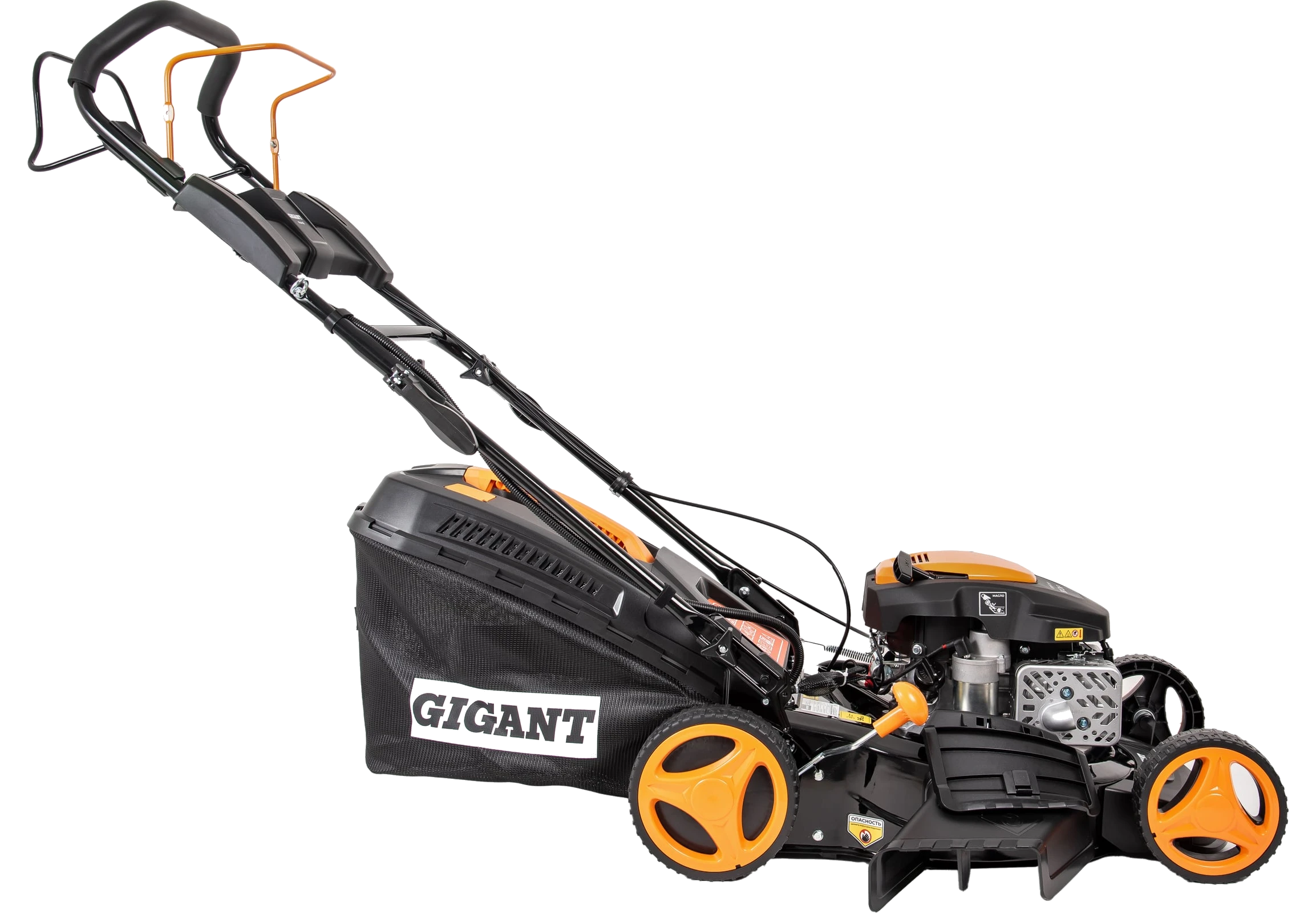

Gasoline lawn mower with electric start, 4.5 hp PLM-01
2.6 kWPower 4.5 hpPower 50 lVolume grass catcher
Self-propelled 4.5 hp gasoline lawn mower with electric start and a four-stroke engine, offering three modes - collection, side discharge and mulching - with a removable grass box and folding handle.
Description
The GIGANT PLM-01 gasoline lawn mower is a productive, versatile machine. It starts easily and is self-propelled. It is fitted with a powerful four-stroke engine.
The mower has three operating modes: collection into the grass box, side discharge and mulching. Mowing regularly in mulching mode benefits the lawn by feeding it properly.
The easily removable grass box and folding handle make the mower easier to store and transport. Cutting height is set with a central lever.
Specifications
| Self-propelled | Yes |
|---|---|
| Motor/engine type | Gasoline |
| Model engine | DV150 |
| Manufacturer engine | GIGANT Eva 1 |
| Stroke cycle engine | Four-stroke |
| Power | 2.6 kW |
| Power | 4.5 hp |
| Grass catcher | Yes |
| Type grass catcher | Rigid |
| Volume grass catcher | 50 l |
| Width bevel | 48 cm |
| Adjustment height bevel | Central |
| Quantity modes adjustment height | 7 |
| Height bevel max | 75 mm |
| Height bevel min | 30 mm |
| Housing material | Steel |
| Mulching | Yes |
| Engine displacement | 150 cm³ |
| Speed movement | 4 km/h |
| Fuel tank capacity | 1.2 l |
| Oil tank capacity | 0.4 l |
| Type handle | Adjustable, folding |
| Number of gears | 1 |
| Drive | Belt drive |
| Spindle speed | 2800 rpm |
| Selection speed | No |
| Discharge grass | Side/rear |
| Auto start | Yes |
| Area | 1000 m² |
| Spark plug ignition | F7RTC |
| Spark plug ignition (type equivalents) | F7TC/F7RTC/BPR7ES/RN6YC/WR5DC/F7RTS/RN9YC/WR7DC |
| Drive on blade | Straight |
| Thermal protection | No |
| Wheels | On bearings |
| Number wheels | 4 pcs |
| Large rear wheels | Yes |
| Dimensions (unpackaged) | 850x565x520 mm |
| Net weight | 30 kg |
Packaging
| Weight | 35.3 kg |
|---|
