G-04-09-05Household

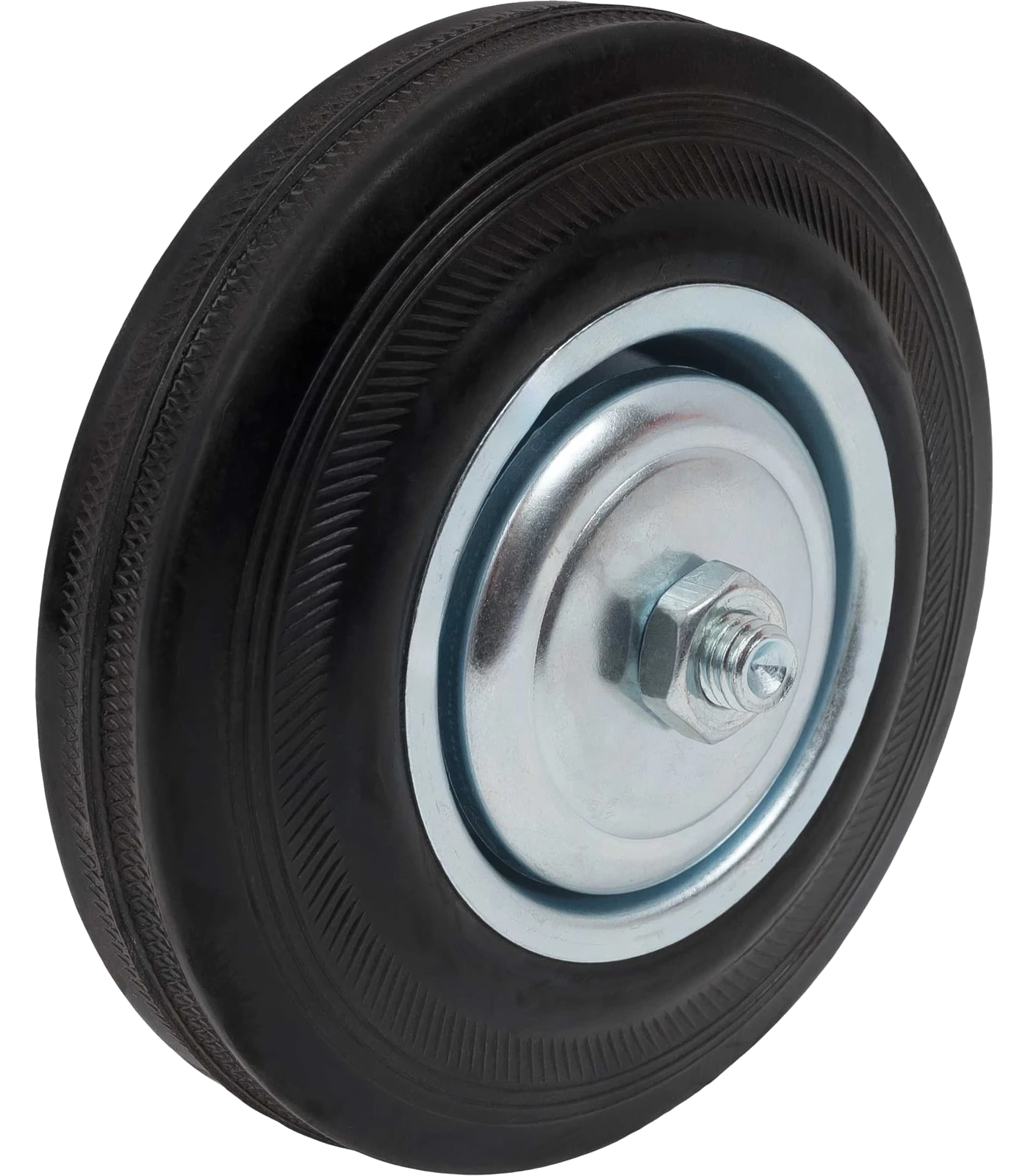

Industrial wheel without bracket 125 mm, rubber/steel G-04-09-05
125 mmDiameter 0.095 tLoad capacity 34 mmThickness
A 125 mm industrial wheel with a rubber tread on a steel rim, a roller bearing and a sealing ring. Fits wheelbarrows, carts and other mobile equipment indoors and outdoors.
Description
The GIGANT G-04-09-05 industrial wheel without bracket, 125 mm, rubber/steel has a highly reliable design with a roller bearing and a sealing ring. The wheel is easy to fit and to remove. Recommended for wheelbarrows, carts and other mobile equipment used in warehouses, retail spaces and on construction sites. Suitable for indoor and outdoor use.
Specifications
| Type wheels | Without support |
|---|---|
| Diameter | 125 mm |
| Load capacity | 0.095 t |
| Thickness | 34 mm |
| Type bracket | No |
| Type hub | With roller bearing |
| Application | Industrial |
| Material contact part | Black rubber |
| Disc/base | Steel |
| Bearing | Roller |
| Diameter hub | 12 mm |
| Depth fit bearing | 42 mm |
| Diameter hole under bearing | 17 mm |
| Length hub | 42 mm |
| Pneumatic | No |
| Three-wheeled unit | No |
| Min temperature operation | -25 °C |
| Max temperature operation | 50 °C |
| Net weight | 0.5 kg |
Packaging
| Weight | 0.52 kg |
|---|
