G-TSD-L4-36WHousehold

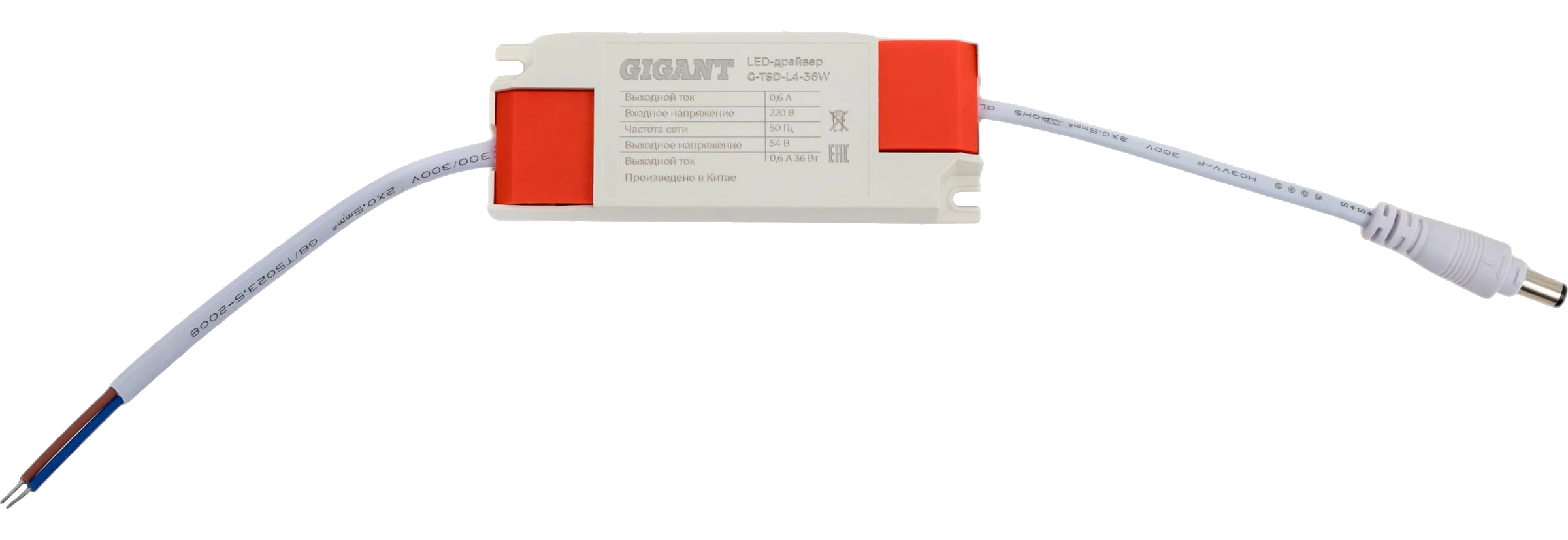

LED driver for LED luminaires 36W, 54V G-TSD-L4-36W
36 WPower 220 VInput voltage 54 VOutput voltage
Specifications
| Application | For constant-voltage LED light sources |
|---|---|
| Principle operation | Pulse |
| Power | 36 W |
| Protection from dust & moisture | IP20 |
| Input voltage | 220 V |
| Output voltage | 54 V |
| Output current | 0.6 A |
| Operating temperature range | 0 to 50 °C |
| Short-circuit protection | No |
| Overvoltage protection | No |
| DIN rail mounting | No |
| Net weight | 0.063 kg |
| Dimensions (unpackaged) | 100x36x23 mm |
| Length | 100 mm |
| Width | 36 mm |
| Height | 23 mm |
| Built-in fan | No |
| Type | Driver |
| Number of channels | 1 pcs |
| Open-frame | No |
| Sealed | No |
| Dimmable | No |
| Smart | No |
| Wi-Fi | No |
| Linear | No |
| Step-up | No |
| With remote control control | No |
| With Alice voice assistant | No |
| For ring lamps | No |
| For LED string lights | No |
| For LED lamps | No |
| For LED panels | No |
| For LED chandeliers | No |
| For linear luminaire | No |
| For LED floodlight | No |
| For LED screens | No |
| For work light | No |
| For ceiling luminaire | No |
| For LED headlights | No |
| For LED lamp | No |
| For ultra-thin panels | No |
| For universal panels | No |
Packaging
| Weight | 0.121 kg |
|---|
