BVP80T-H160Professional

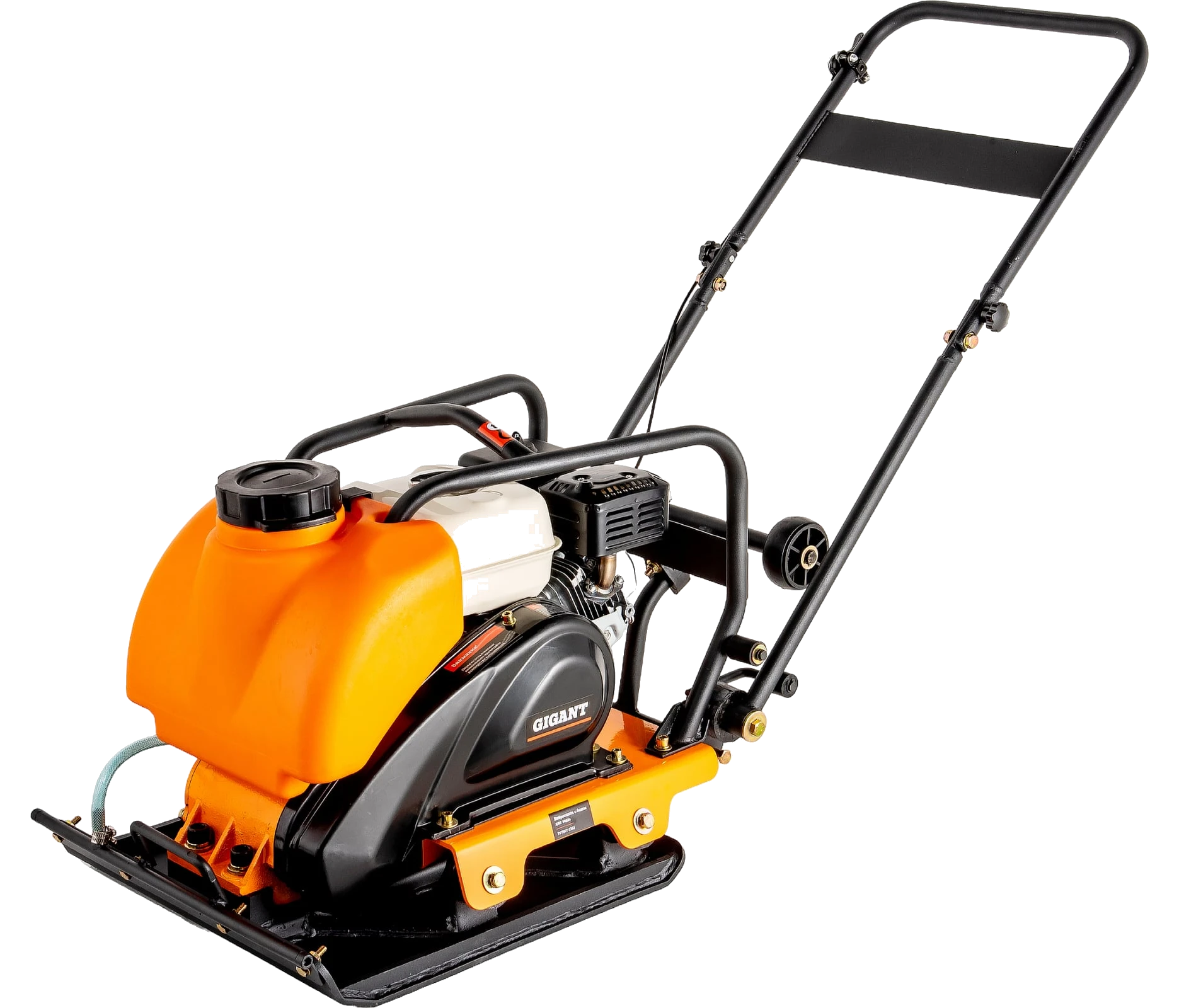

Plate compactor with water tank, Honda engine BVP80T-H160
300 mmDepth seals 4000 WPower (W) 5.5 hpPower (hp)
A professional plate compactor with a water tank and a Honda gasoline engine for compacting road and construction surfaces where there is no electricity supply.
Description
The GIGANT BVP80T-H160 plate compactor with a water tank and a Honda engine is a professional machine for compacting various surfaces during road and construction work. This model is built around a gasoline engine, so it can be used where there is no electricity supply.
Note. The engine is shipped without oil. Remember to fill it.
Additional specifications:
- Belt: 13x838Li toothed
- Fuel: 92 or 95 RON gasoline
- Engine oil: 10W30; 5W30
- Gear oil: 68#; any gear oil
- Spark plug: BPR6ES; W20EPR-U
- Air filter GX160, 200, KM-210 100x73x66 mm, oval (17210-ZE1-822)
Specifications
| Motor/engine type | Gasoline |
|---|---|
| Depth seals | 300 mm |
| Power (W) | 4000 W |
| Power (hp) | 5.5 hp |
| Engine | GX160 |
| Stroke cycle engine | Four-stroke |
| Manufacturer engine | Honda |
| Engine displacement | 163 cm³ |
| Fuel tank capacity | 3.1 l |
| Fuel consumption | 1.4 l/h |
| Centrifugal force | 13 kN |
| Max sealed area | 720 m²/h |
| Reverse | No |
| Tank for water | Yes |
| Anti-vibration mat included | No |
| Material plate | Steel |
| Width plate | 500 mm |
| Length plate | 530 mm |
| Dimensions (unpackaged) | 1100x500x1000 mm |
| Net weight | 90 kg |
Packaging
| Weight | 90 kg |
|---|
