EDM-230BProfessional

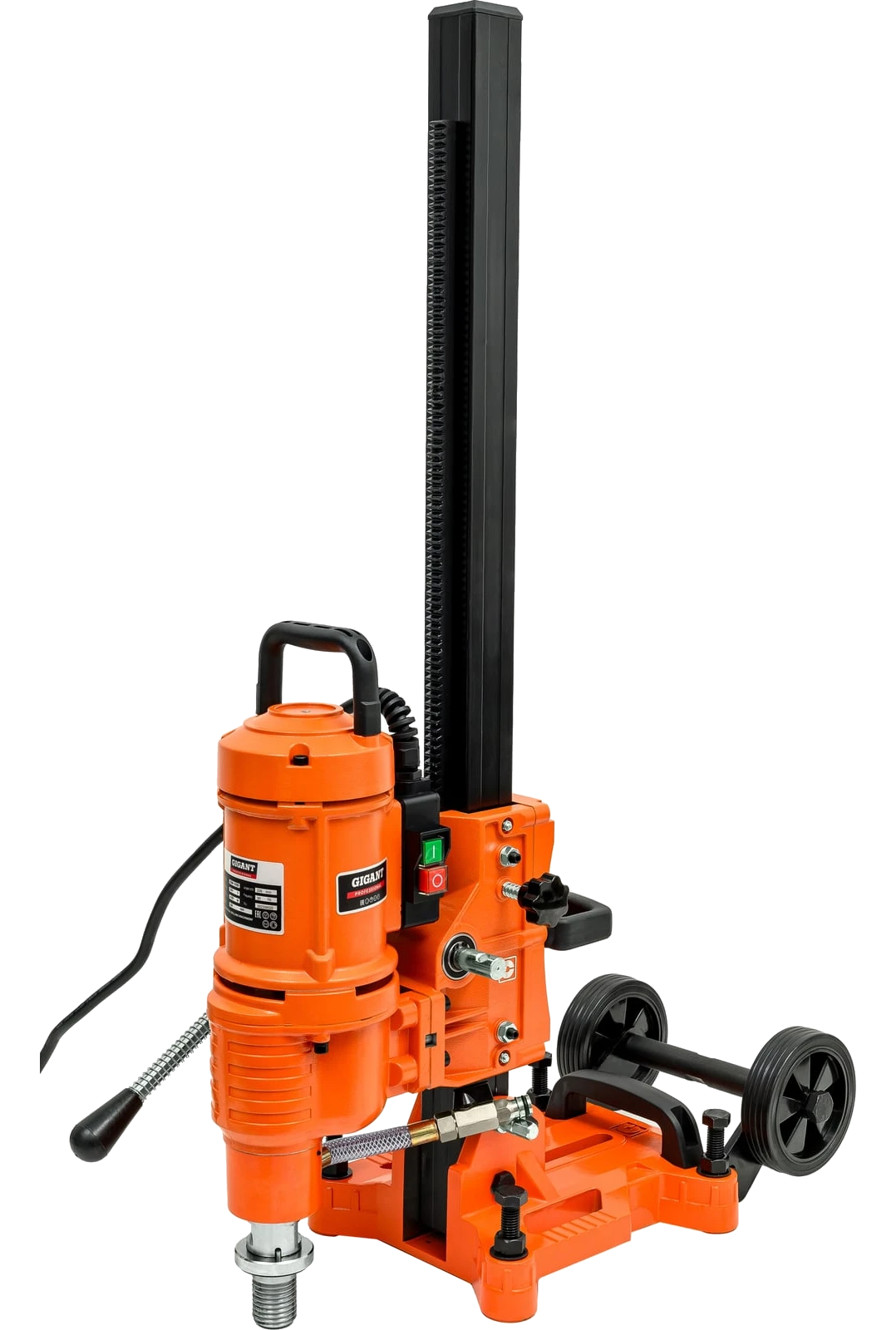

Professional drilling machine EDM-230B
220 VVoltage 4180 WPower 230 mmMax drill bit diameter
A diamond core drilling machine for concrete and brick, with a tilting stand for angled work, a safety friction clutch and a water connection.
Description
The GIGANT Professional EDM-230B core drilling machine is designed for concrete, brick and similar materials.
- The tilting stand allows the drilling angle to be adjusted.
- The safety friction clutch protects the gearbox from damage.
- A water supply can be connected.
Specifications
| Type | Core drilling machine + stand |
|---|---|
| Voltage | 220 V |
| Power | 4180 W |
| Max drill bit diameter | 230 mm |
| Type drilling | Wet and dry |
| Number speeds | 1 |
| Spindle speed | 530 rpm |
| Speed control | No |
| Frequency | 50 Hz |
| Consumed current | 19 A |
| Fit core bits | External 1 1/4 inch |
| Fit core bits 1 | 1 1/4 inch external |
| Fit core bits 2 | 1 1/4 inch external |
| Angle tilt guide | 45 ° |
| Soft start | No |
| Presence of impact | No |
| Safety clutch | No |
| Net weight | 19.5 kg |
| Dimensions (unpackaged) | 950x380x230 mm |
Package contents
- Diamond drilling motor - 1 pc.
- Support stand with base - 1 pc.
- Core bit feed handle - 1 pc.
- Water connection system - 1 pc.
- Mounting kit (fixing nuts, bolts, wrenches) - 1 pc.
- Motor handle - 1 pc.
- Stand handle - 1 pc.
- Operating manual - 1 pc.
Packaging
| Weight | 28 kg |
|---|
