Labels and markings on the product shown may differ from those on units supplied to your market.
CACH-09Household

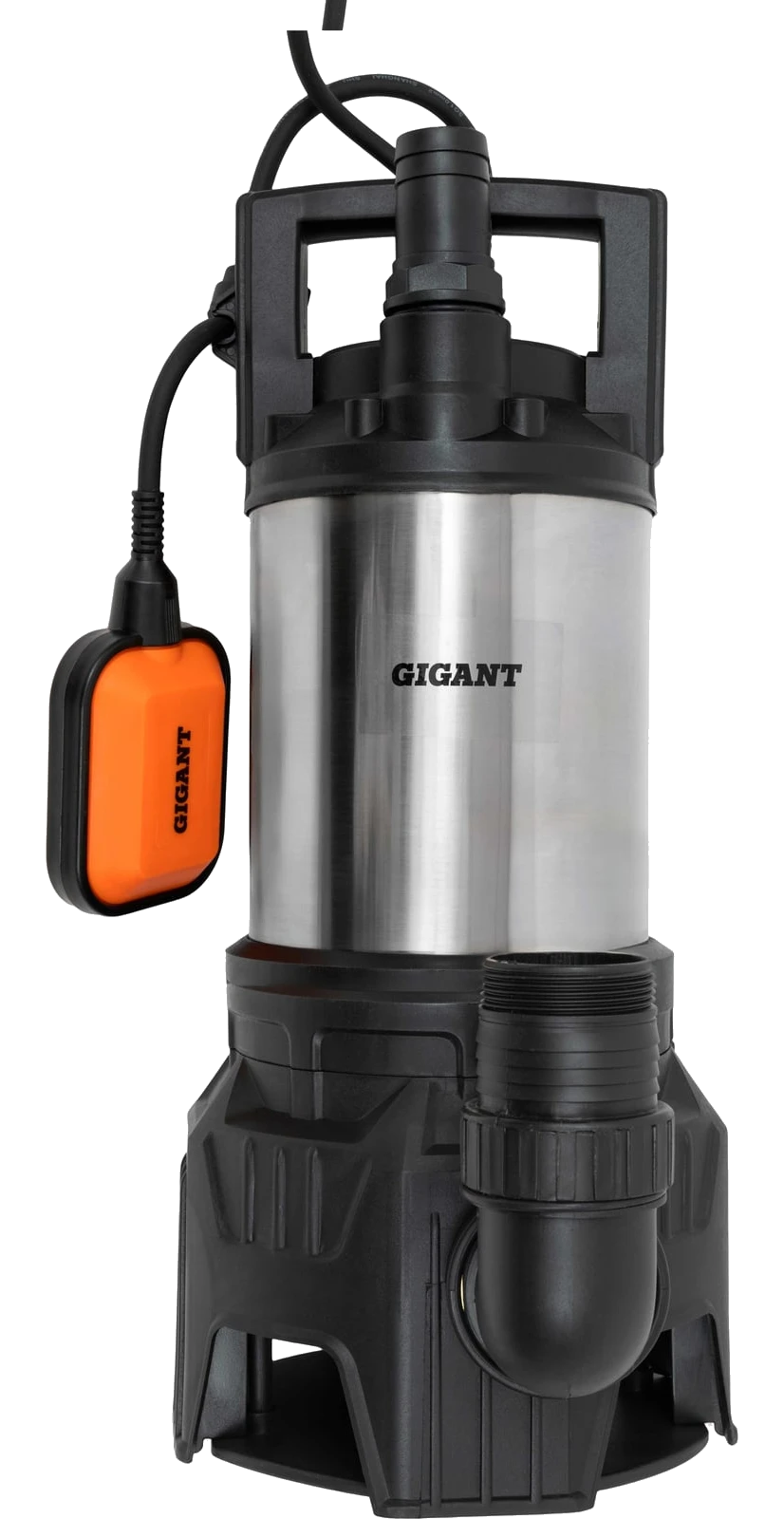

Submersible drainage pump for dirty water CACH-09
330 l/minPerformance 40 mmPermissible diameter solid particles 1700 WPower
A submersible drainage pump for dirty water with organic solids up to 40 mm: dewatering basements, pumping from ditches and pools, supplying water for irrigation.
Description
The GIGANT CACH-09 submersible drainage pump for dirty water is designed to transfer clean or drainage water with organic solids no larger than 40 mm.
Applications
The pump can be used for:
- Pumping water out of basements flooded with rain water, groundwater and technical effluent.
- Removing seepage, spent and lightly contaminated water with solids from drainage ditches and pools.
- Delivering water from wells and natural bodies of water for irrigation or technical needs.
Specifications
| Series | DN |
|---|---|
| Type | Drainage, for dirty water |
| Kind | Submersible |
| Type power | Mains |
| Number batteries V kit | No pcs |
| Performance | 330 l/min |
| Permissible diameter solid particles | 40 mm |
| Design | Centrifugal |
| Power | 1700 W |
| Voltage | 230 V |
| Class protection | IPX8 |
| Max lift height | 10 m |
| Depth immersion | 7 m |
| Pressure | 1 Pa atm |
| Max pressure | 1.4 atm |
| Pipe connection | 1 inch |
| Housing material | Plastic/stainless steel |
| Intake water | Bottom |
| Protection from dry stroke | Float switch |
| Max temperature liquid | 35 °C |
| Residual level water | 50 mm |
| Material impeller | POM |
| For increase pressure | No |
| Cable length | 10 m |
| Dimensions (unpackaged) | 230x230x470 mm |
| Net weight | 7.7 kg |
Package contents
- Pump
- Hose connector
- Packaging
Packaging
| Weight | 5 kg |
|---|
