BV 150Semi-professional

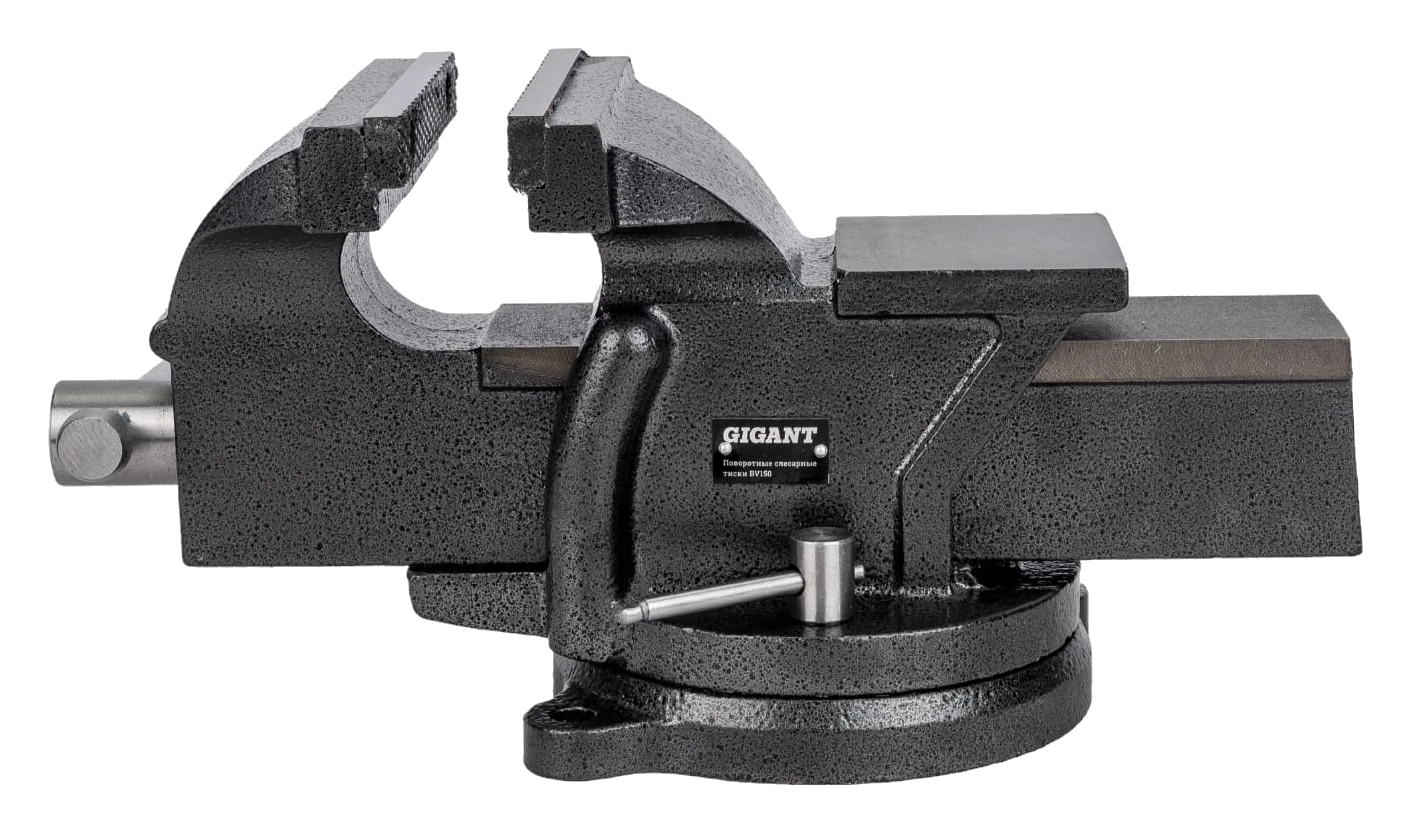

Swivel machinist's vise BV 150
150 mmJaw width 137 mmWorking stroke 405x170x192 mmDimensions (unpackaged)
Cast iron swivel bench vise with 150 mm jaws, 137 mm opening and 16.6 kN clamping force for workshops and small production. The base rotates 180 degrees; V-grooves hold round stock and a built-in anvil handles light forming work.
Description
The GIGANT BV 150 swivel bench vise is a universal workshop fixture for a wide range of metalworking and fitting jobs in service center workshops, repair shops and small to medium-sized production facilities. It follows the traditional design for this type of vise: a cast iron body and a swivel base that rotates 180 degrees in the horizontal plane for convenient positioning of the workpiece. Jaw width is 150 mm. Maximum opening is 137 mm.
- The jaws have V-grooves for holding long polygonal and cylindrical workpieces.
- A compact anvil is built into the body for working metal blanks.
- The jaw faces are serrated for a secure, safe grip on the workpiece.
- Clamping force is 16.6 kN.
Specifications
| Type | Machinist's (bench) |
|---|---|
| Jaw width | 150 mm |
| Working stroke | 137 mm |
| Swivel function | Yes |
| Housing material | Cast iron |
| Jaw material | Steel |
| Anvil | Yes |
| Dimensions (unpackaged) | 405x170x192 mm |
| Net weight | 16.25 kg |
| Mounting method | Screws/bolts |
| Clamping force | 16600 N |
| Pipe jaw | No |
Package contents
- Vise.
- Packaging.
Packaging
| Weight | 16.9 kg |
|---|
