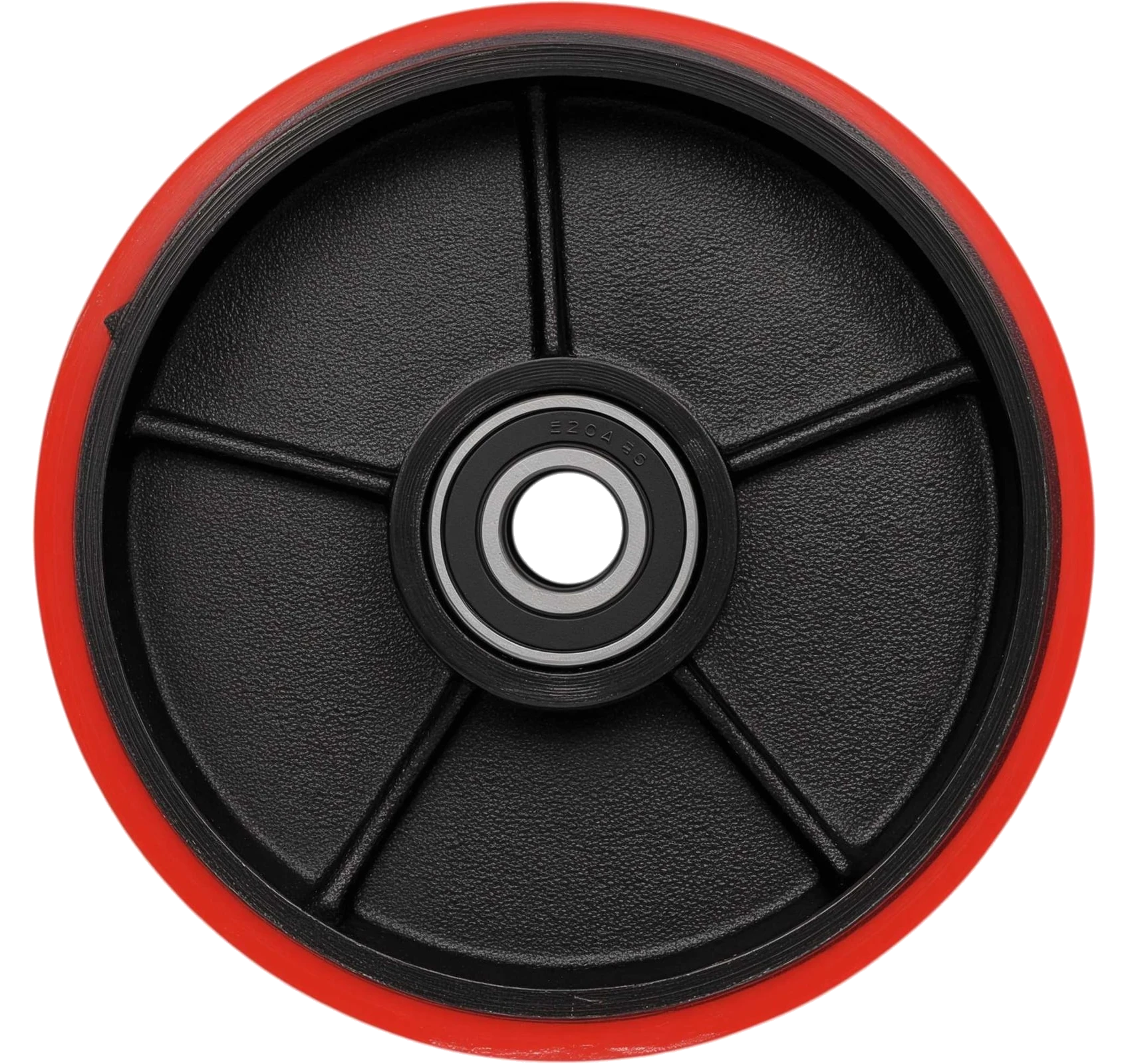

Wheel for hydraulic pallet trucks with ball bearing 180 mm, PU/cast iron G-04-09-09
180 mmDiameter 1 tLoad capacity 50 mmThickness
A 180 mm wheel for pallet trucks with a polyurethane tread on a cast iron core and a ball bearing. High load capacity, smooth and quiet running.
Description
The rim of the GIGANT G-04-09-09 wheel is coated with protective varnish. The contact layer is polyurethane. The axle carries a ball bearing. The wheel offers high load capacity, resistance to impact loads and cuts, high wear resistance, smooth running and low noise in motion.
Specifications
| Type wheels | Without support |
|---|---|
| Diameter | 180 mm |
| Load capacity | 1 t |
| Thickness | 50 mm |
| Type bracket | No |
| Type hub | With ball bearing |
| Application | For hydraulic trucks |
| Material contact part | Polyurethane |
| Disc/base | Cast iron |
| Bearing | 6204 |
| Diameter hub | 20 mm |
| Depth fit bearing | 14 mm |
| Length hub | 50 mm |
| Pneumatic | No |
| Three-wheeled unit | No |
| Min temperature operation | -30 °C |
| Max temperature operation | 60 °C |
| Net weight | 2.2 kg |
Packaging
| Weight | 2.2 kg |
|---|
