Labels and markings on the product shown may differ from those on units supplied to your market.
DP750VDoméstico

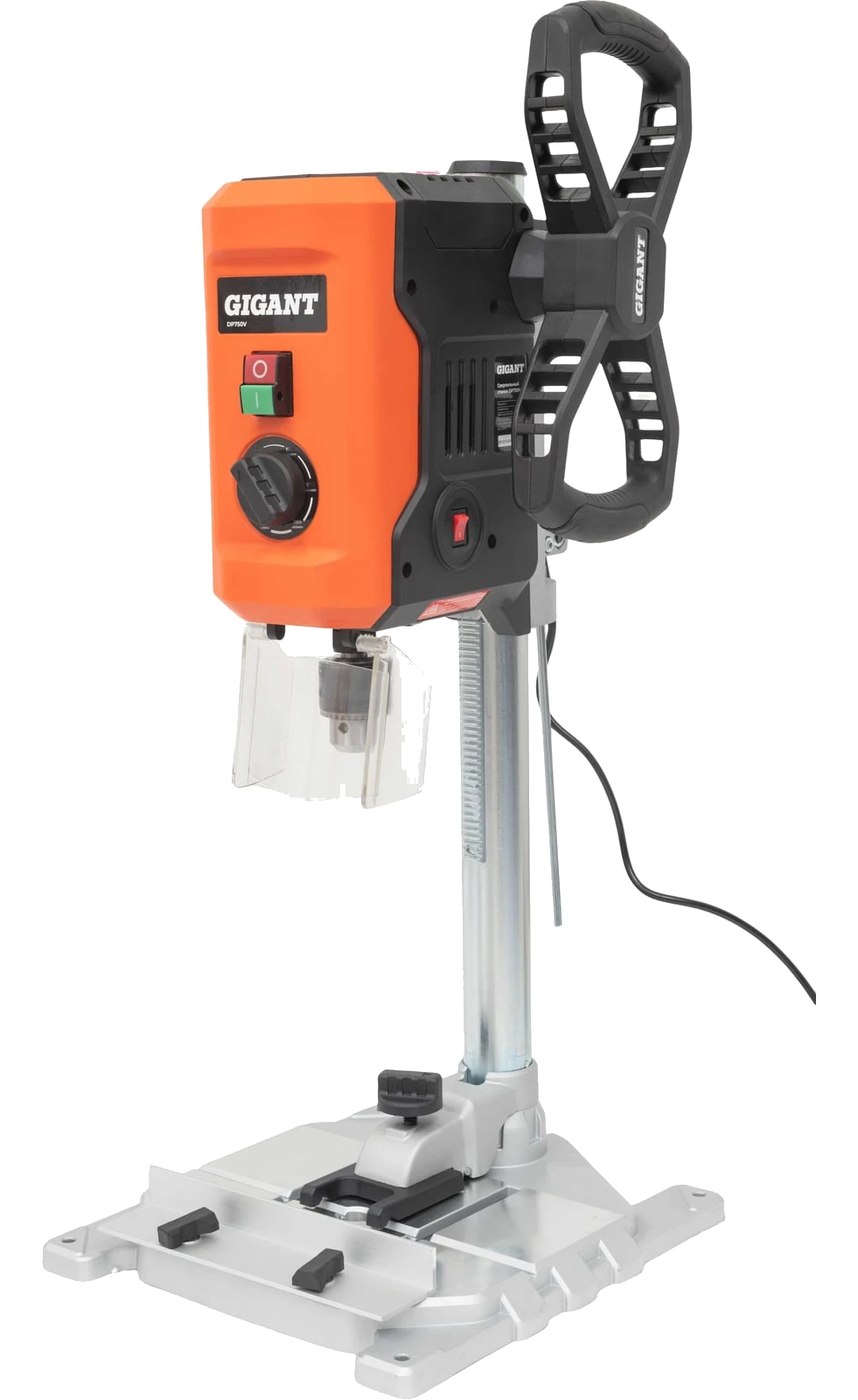

Drill press Vario DP750V
750 WPower 220/230 VVoltage 500-2600 rpmSpindle speed
A 750 W vertical drill press with stepless speed control from 500 to 2600 rpm for steel, cast iron, aluminum, plastic and wood. B16 chuck up to 13 mm, 330x300 mm table, laser and a vise included.
Descripción
The GIGANT DP750V Vario drill press is reliable equipment for a range of drilling work. With 750 W on a 220 V supply, it delivers steady performance in steel, cast iron, aluminum, plastic and wood. The vertical drilling design and stepless speed control from 500 to 2600 rpm allow the drilling process to be set up precisely. The 330x300 mm table and 100 mm quill travel make it convenient to work with different materials. The machine has a keyed drill chuck with a B16 mount and takes drills up to 13 mm in diameter. The laser simplifies accurate positioning, and the vise supplied holds workpieces securely.
Características
| Power | 750 W |
|---|---|
| Voltage | 220/230 V |
| Spindle speed | 500-2600 rpm |
| Min frequency rotation spindle | 500 rpm |
| Max frequency rotation spindle | 2600 rpm |
| Type construction | Vertical drilling |
| Number speeds | 1 |
| Material worked | Metal, cast iron, aluminum, plastic, wood |
| Max drill bit diameter | 13 mm |
| Distance spindle-base | 275 mm |
| Distance spindle-column | 125 mm |
| Distance spindle-table | 275 mm |
| Size base | 330x300 mm |
| Stroke quill spindle | 100 mm |
| Diameter columns | 46 mm |
| Min diameter drilling | 1 mm |
| Max diameter shank accessory | 13 mm |
| Worktable size | 330x300 mm |
| Work table length | 330 mm |
| Work table width | 300 mm |
| Type drilling chuck | Keyed |
| Speed control | Stepless |
| Fit drilling chuck | B16 |
| Desktop | Yes |
| Reverse | No |
| Laser guide | No |
| Backlight working zones | No |
| Vise V kit | No |
| Length | 330 mm |
| Width | 300 mm |
| Height | 630 mm |
| Dimensions (unpackaged) | 330x300x630 mm |
| Net weight | 9.2 kg |
Contenido del paquete
- Drill press - 1 pc.
- Packaging - 1 pc.
Embalaje
| Peso | 8,5 kg |
|---|
