Labels and markings on the product shown may differ from those on units supplied to your market.
TFS-125-12Doméstico

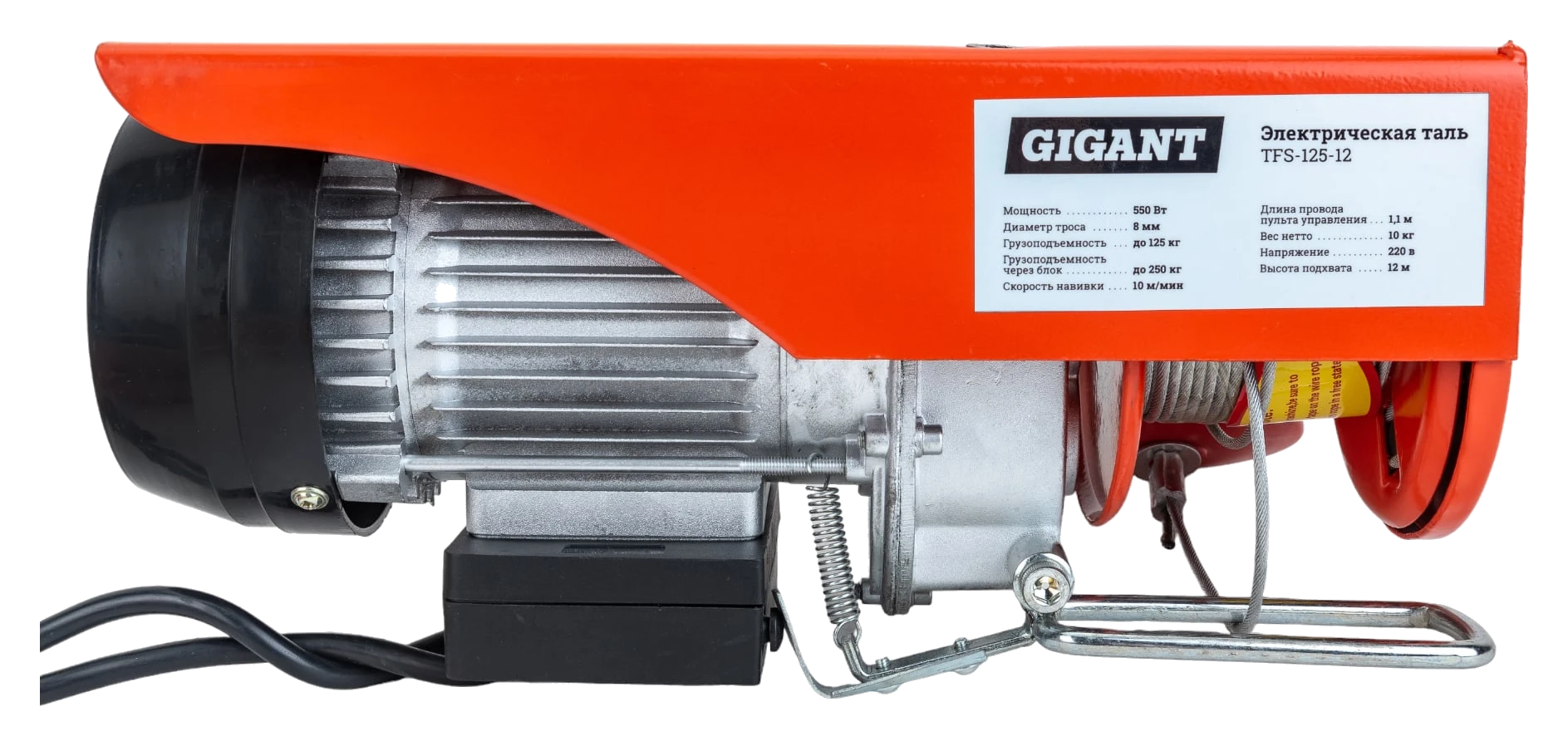

Electric chain hoist TFS-125-12
550 WPower 125 kgLoad capacity 250 kgLoad capacity through unit
Electric hoist for construction sites and production shops: up to 125 kg without a pulley block and up to 250 kg through a block, 12 m lifting height, electromechanical brake and pendant control.
Descripción
The GIGANT TFS-125-12 electric hoist is used on construction sites and in production shops. It is designed for lifting loads of up to 125 kg without a pulley block and up to 250 kg through a block. Lifting height is 12 meters and the rope diameter is 3 mm.
- The hoist has an electromechanical brake.
- The housing is painted to protect it against corrosion.
- It is operated from a pendant control.
Características
| Type | Rope type |
|---|---|
| Power | 550 W |
| Load capacity | 125 kg |
| Load capacity through unit | 250 kg |
| Pulley block included | Yes |
| Max lift height | 12 m |
| Length cable | 12 m |
| Diameter cable | 3 mm |
| Winding speed | 10 m/min |
| Voltage | 220 |
| Length wire remote control control | 1.1 m |
| Presence of carriage | No |
| Application | Lifting |
| Electromechanical brake | No |
| Speed movement | 10 m/min |
| Remote control control V kit | Yes |
| Temperature operation | -20 to +40 °C °C |
| Net weight | 10 kg |
| Dimensions (unpackaged) | 400x300x240 mm |
Contenido del paquete
- Hoist.
- Packaging.
Embalaje
| Peso | 10,39 kg |
|---|
