Labels and markings on the product shown may differ from those on units supplied to your market.
GGC-150Doméstico

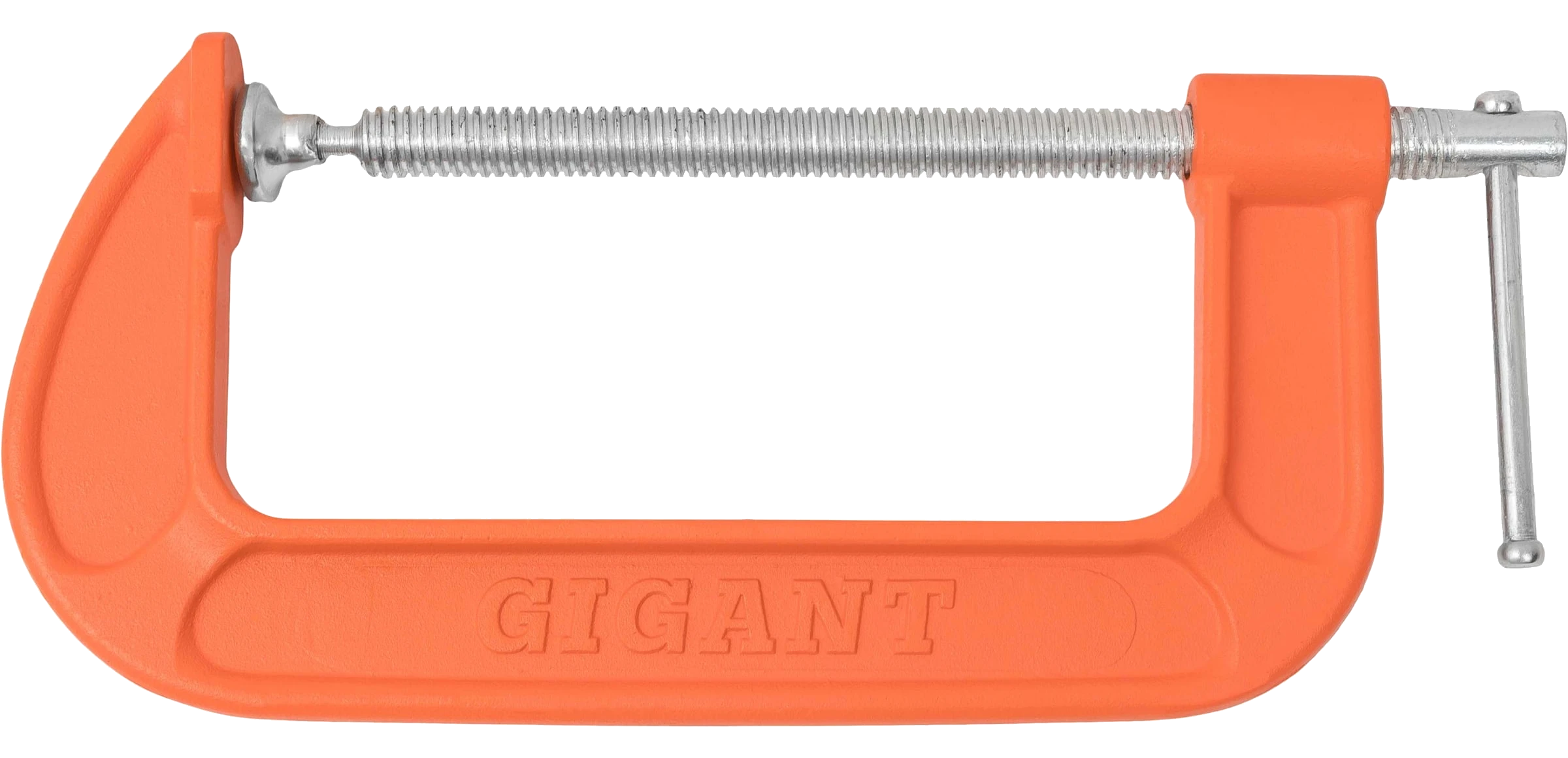

G-clamp 150x70 GGC-150
150 mmClamping width 6500 NMax force 70 mmClamping depth
G-clamp, 150 x 70 mm, with a cast iron frame and a T-handle. The larger size makes it easier to work with thick sheet parts in wood and metal.
Descripción
The GGC-150 150 x 70 G-clamp delivers high clamping force, which makes working on parts easier. Its size makes it easy to work with thick sheet material.
- A T-handle and screw mechanism make the model easy to use.
- The cast iron frame is strong and durable.
- The clamp is intended for work on wood and metal.
Características
| Clamping width | 150 mm |
|---|---|
| Max force | 6500 N |
| Clamping depth | 70 mm |
| Type | Clamp |
| Clamp type | G-shaped |
| Clamp type | Screw-type |
| Application | For wood and metal |
| Dual-purpose | No |
| For mounting V slot | No |
| Frame material | Cast iron |
| Dimensions (unpackaged) | 230x95x20 mm |
| Net weight | 0.97 kg |
Contenido del paquete
- Clamp;
- Packaging.
Embalaje
| Peso | 0,97 kg |
|---|
