CACH-04Doméstico

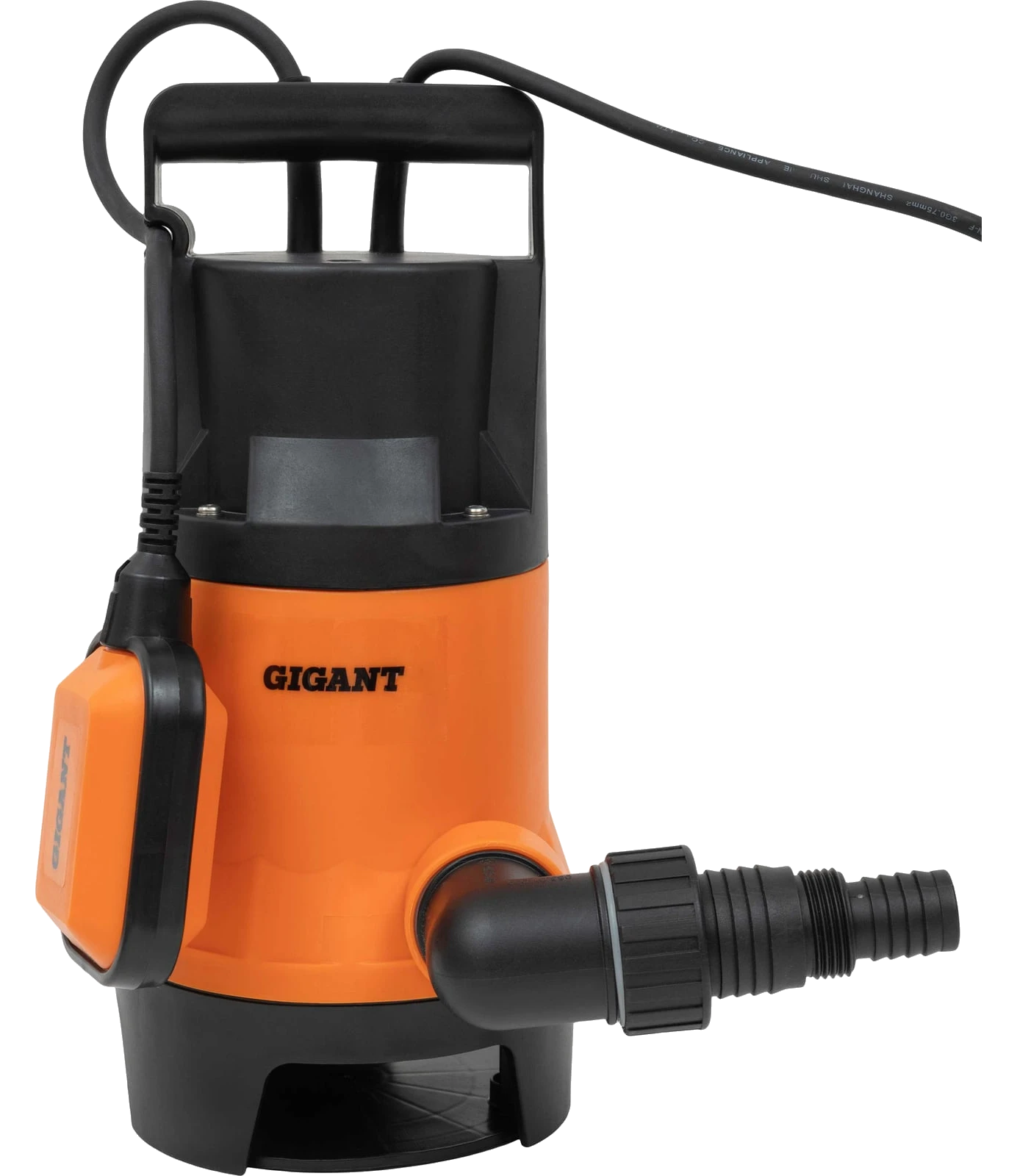

Submersible sewage pump CACH-04
230 VVoltage 750 WPower 7.5 mMax lift height
A submersible sewage pump for wastewater with solids up to 35 mm and for dewatering pits and basements, with motor overheating protection and a float switch.
Descripción
The GIGANT CACH-04 submersible sewage pump is designed for pumping out wastewater with solids up to 35 mm and for dewatering pits and basements. It delivers high capacity. The motor is protected against overheating. A float switch is built in to prevent dry running.
Características
| Series | FN |
|---|---|
| Type | Sewage |
| Kind | Submersible |
| Design | Centrifugal |
| Voltage | 230 V |
| Power | 750 W |
| Max lift height | 7.5 m |
| Depth immersion | 7 m |
| Pressure | 0.75 Pa atm |
| Max pressure | 0.8 atm |
| Max temperature liquid | 35 °C |
| Class protection | IPX8 |
| Performance | 210 l/min |
| Pipe connection | External G1 1/2 inch |
| Housing material | Plastic |
| Diameter pump | 158 mm |
| Intake water | Bottom |
| Protection from dry stroke | Float switch |
| Material impeller | POM |
| For increase pressure | No |
| Presence of shredding blade | No |
| Residual level water | 130 mm |
| Permissible diameter solid particles | 35 mm |
| Cable length | 7 m |
| Dimensions (unpackaged) | 220x160x370 mm |
| Net weight | 4.7 kg |
Contenido del paquete
- Pump assembly;
- Operating manual;
- Warranty card;
- Packaging;
- 90 degree hose connector.
Embalaje
| Peso | 5 kg |
|---|
