CACH-05Doméstico

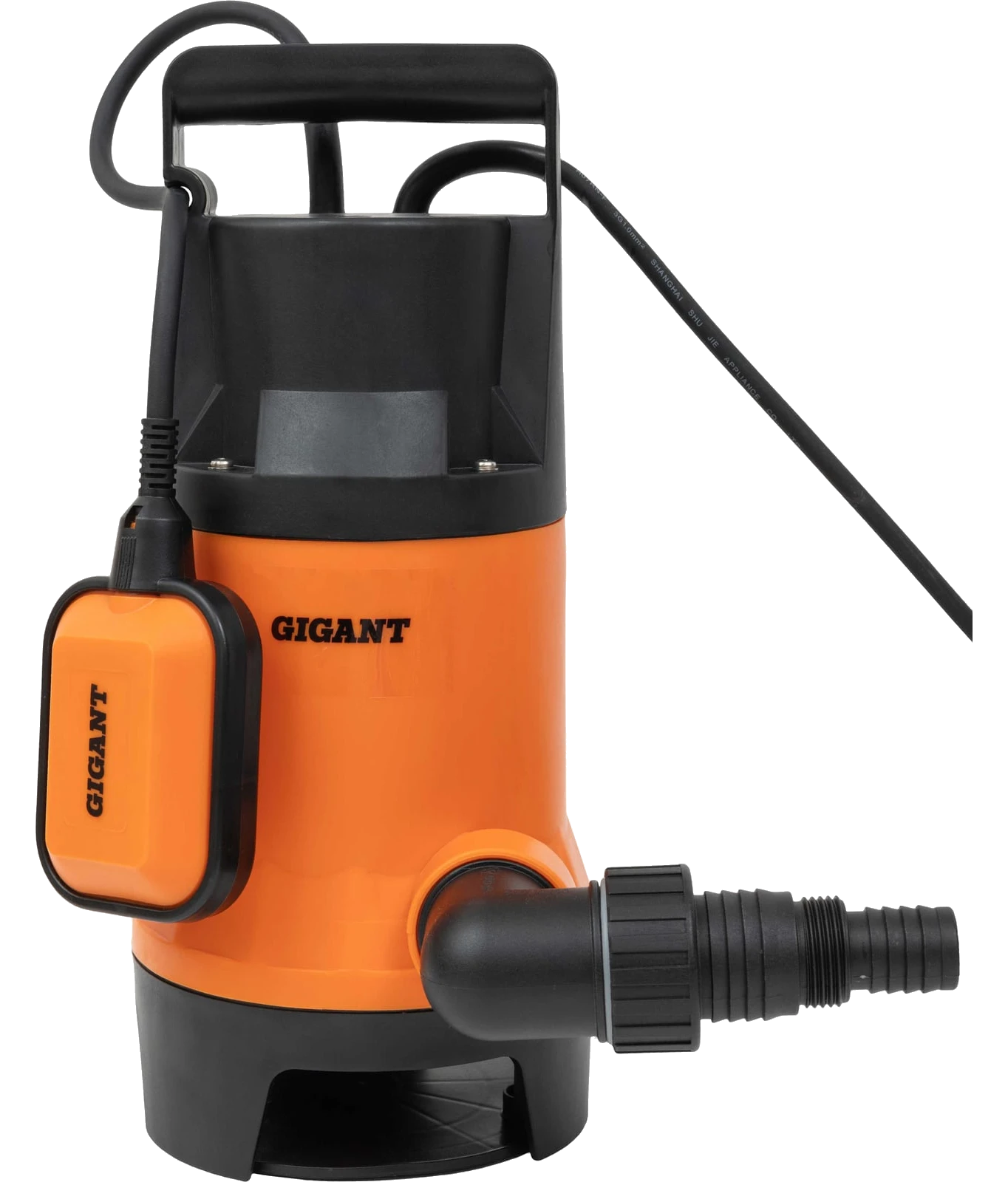

Submersible sewage pump CACH-05
230 VVoltage 1200 WPower 9 mMax lift height
A submersible sewage pump with a float switch for automatic pumping of wastewater with particles up to 35 mm; housing in durable plastic.
Descripción
The GIGANT CACH-05 submersible sewage pump is designed for pumping out wastewater. It has a float switch that provides automatic operation and rules out running without water. The pump handles water with solid particles up to 35 mm. The motor is protected against overheating. The pump housing is made of durable plastic.
Características
| Series | FN |
|---|---|
| Type | Sewage |
| Kind | Submersible |
| Design | Centrifugal |
| Voltage | 230 V |
| Power | 1200 W |
| Max lift height | 9 m |
| Depth immersion | 7 m |
| Pressure | 0.9 Pa atm |
| Max pressure | 1.2 atm |
| Max temperature liquid | 35 °C |
| Class protection | IPX8 |
| Performance | 250 l/min |
| Pipe connection | Barb fitting 1 inch |
| Housing material | Plastic |
| Diameter pump | 158 mm |
| Intake water | Bottom |
| Protection from dry stroke | Float switch |
| Material impeller | POM |
| For increase pressure | No |
| Presence of shredding blade | No |
| Residual level water | 130 mm |
| Permissible diameter solid particles | 35 mm |
| Cable length | 10 m |
| Dimensions (unpackaged) | 220x160x370 mm |
| Net weight | 5.4 kg |
Contenido del paquete
- Pump assembly;
- Operating manual and warranty card;
- Packaging;
- 90 degree hose connector.
Embalaje
| Peso | 5 kg |
|---|
