Labels and markings on the product shown may differ from those on units supplied to your market.
BDSJ 100/152EProfissional

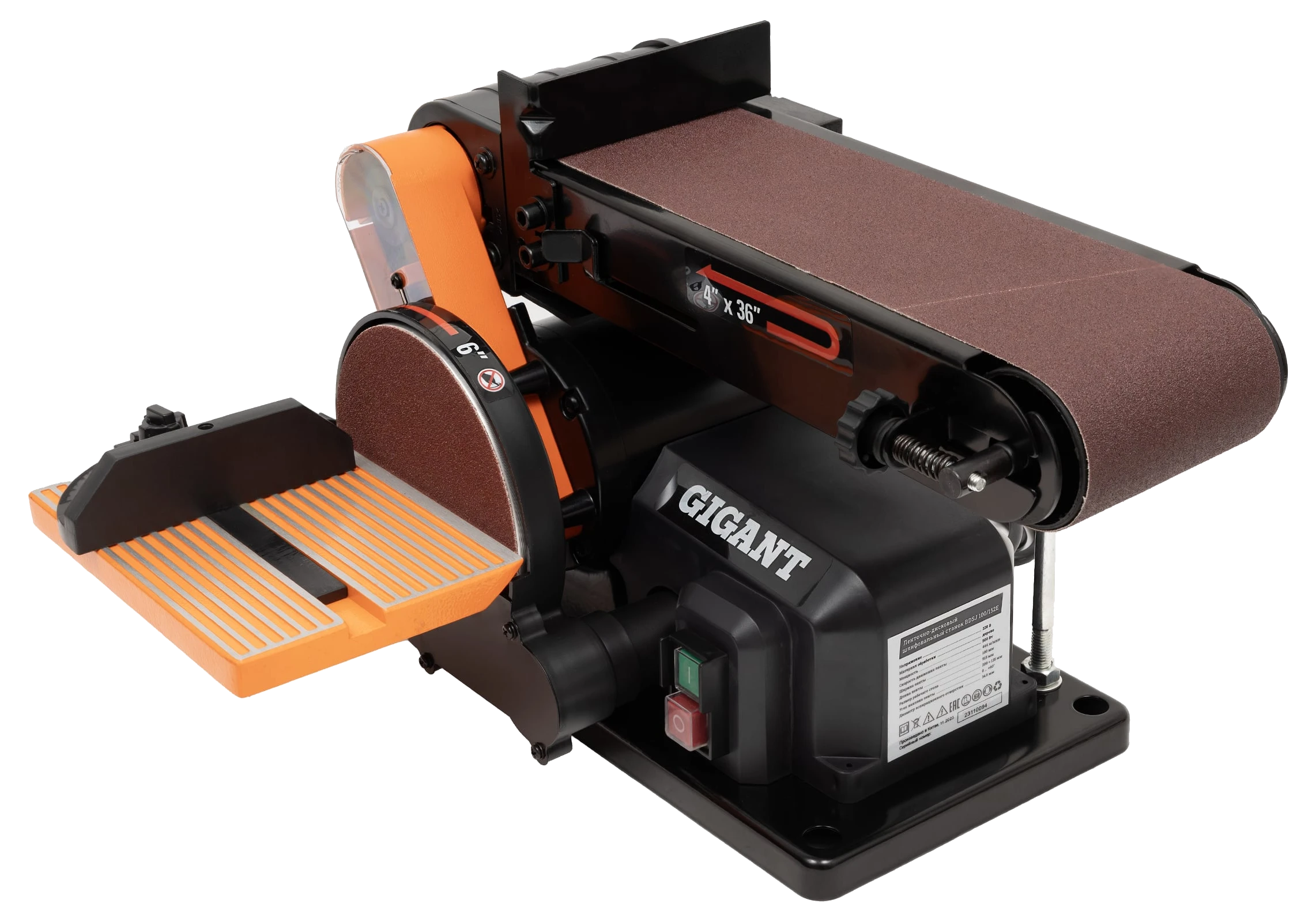

Belt and disc sander BDSJ 100/152E
220(230) VVoltage 500 WConsumed power 2980 rpmFrequency rotation grind. disc
A belt and disc sander for workpieces in wood and wood-based materials, combining belt sanding and disc sanding in one machine.
Descrição
The GIGANT BDSJ 100/152E belt and disc sander is designed for finishing workpieces made of wood and wood-based materials with abrasive tooling.
Set up accordingly, the machine can perform belt sanding and disc sanding.
Especificações
| Voltage | 220(230) V |
|---|---|
| Material worked | Wood |
| Consumed power | 500 W |
| Frequency rotation grind. disc | 2980 rpm |
| Speed movement tape | 450 m/min |
| Disc diameter | 150 mm |
| Belt length | 915 mm |
| Belt width | 100 mm |
| Worktable size | 200x136 mm |
| Angle tilt table (disc) | 0...+45° ° |
| Angle tilt table (belt) | 0...+45° ° |
| Angle tilt tape | 0...+90° ° |
| Underlay Velcro | No |
| Diameter nozzle vacuum cleaner | 35 mm |
| Net weight | 11.5 kg |
| Dimensions (unpackaged) | 480x310x400 mm |
Embalagem
| Peso | 12,45 kg |
|---|
