GCP 25-4-180Doméstico

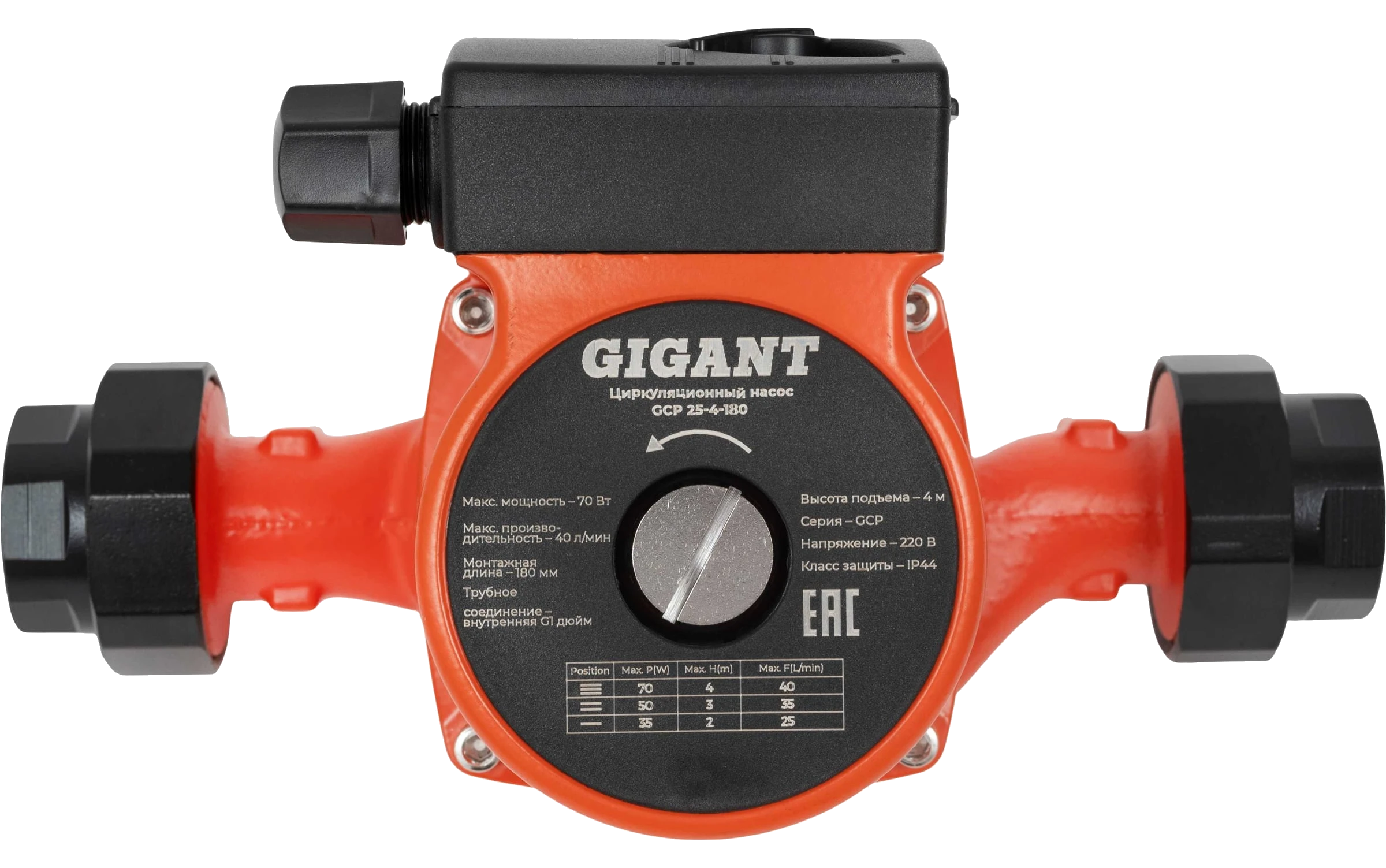

Circulation pump GCP 25-4-180
220 VVoltage 72 WPower 50 l/minPerformance
Three-speed circulation pump for heating systems with overheat protection, rated for water up to 110 degrees.
Descrição
GIGANT circulation pump GCP 25-4-180 is built from quality materials, which ensures long, trouble-free operation. It has a three-speed selector and circulates water in heating systems. Overheat protection is fitted. The maximum permissible water temperature is 110 degrees.
Especificações
| Series | GCP |
|---|---|
| Type | Circulation |
| Kind | For specialized work |
| Design | Centrifugal |
| Rotor | Wet |
| Voltage | 220 V |
| Power | 72 W |
| Performance | 50 l/min |
| Housing material | Cast iron/aluminum |
| Capability adjustment | Yes |
| Mounting length | 180 mm |
| Max lift height | 4 m |
| Pressure | 10 atm |
| Pipe connection, inlet | 1 1/2 inch |
| Pipe connection output | 1 1/2 inch |
| Protection from dry stroke | No |
| For increase pressure | No |
| Min temperature liquid | -10 °C |
| Max temperature liquid | 110 °C |
| Noise level | 45 dB |
| For warm floor | No |
| For domestic hot water | No |
| For heating boilers | No |
| For towel warmers | No |
| Frequency control | No |
| Temperature sensor | No |
| Recommended diameter pipes | 40 mm - 1 1/2" |
| Twin | No |
| Class protection | IP44 |
| Connector V kit | No inch |
| Net weight | 2.3 kg |
Conteúdo da embalagem
- Pump - 1 pc.
- Union nuts - 2 pcs.
- Rubber gaskets - 2 pcs.
- Operating manual - 1 pc.
Embalagem
| Peso | 2,93 kg |
|---|
