GCP-25-8-180Doméstico

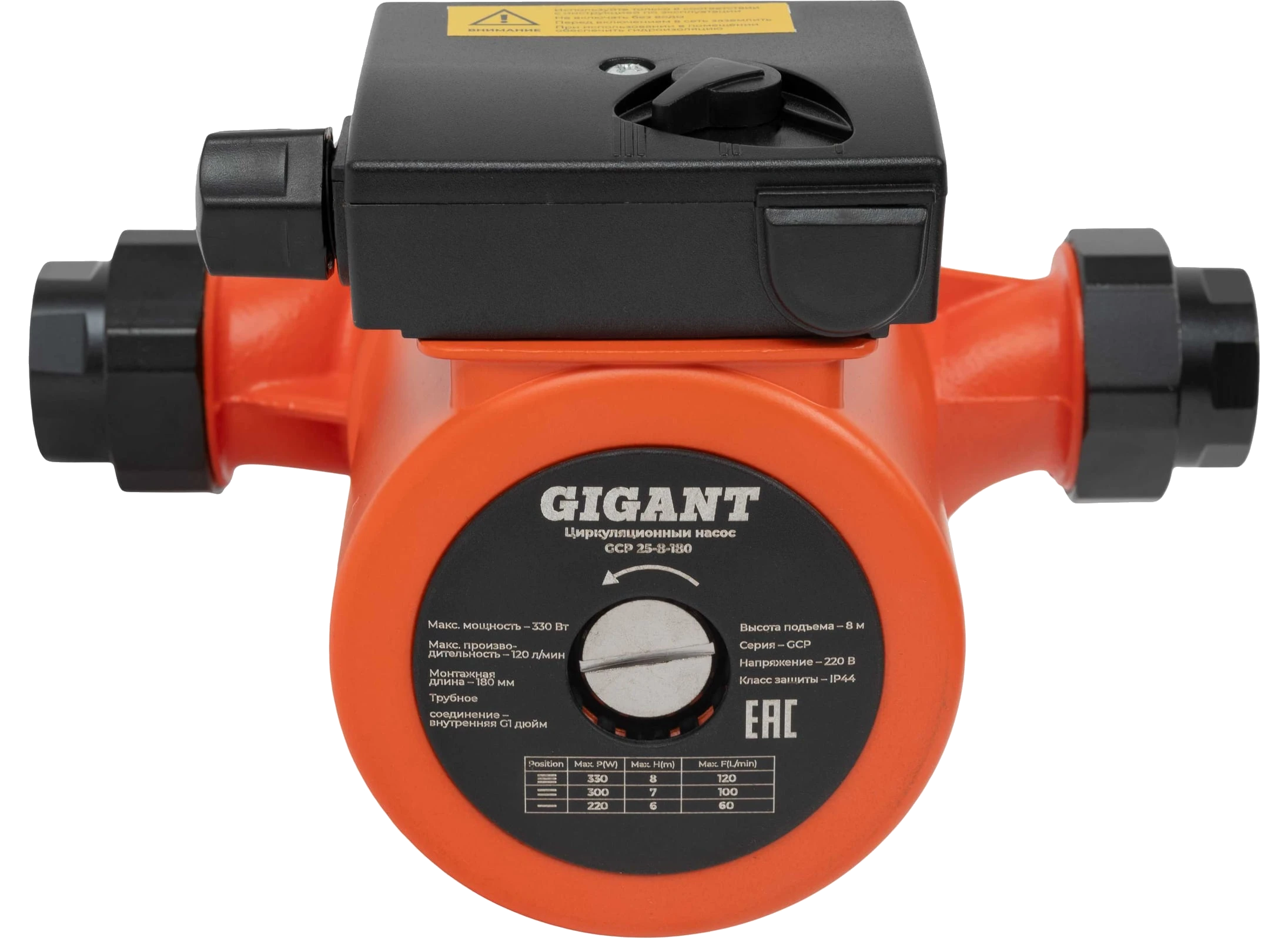

Circulation pump GCP-25-8-180
220 VVoltage 182 WPower 120 l/minPerformance
Monobloc circulation pump with a single-phase three-speed motor and a wet rotor; overheat protection extends its service life.
Descrição
GIGANT circulation pump GCP-25-8-180 is a monobloc electric pump with a single-phase three-speed motor that provides forced circulation of the heat transfer fluid. It is fitted with an overheat protection device, which ensures a long service life. The rotor runs in the liquid, which keeps it cool.
Especificações
| Series | GCP |
|---|---|
| Type | Circulation |
| Kind | For specialized work |
| Design | Centrifugal |
| Rotor | Wet |
| Voltage | 220 V |
| Power | 182 W |
| Performance | 120 l/min |
| Housing material | Cast iron |
| Capability adjustment | Yes |
| Mounting length | 180 mm |
| Max lift height | 8 m |
| Pressure | 10 atm |
| Pipe connection, inlet | 1 1/2 inch |
| Pipe connection output | 1 1/2 inch |
| Protection from dry stroke | No |
| For increase pressure | No |
| Min temperature liquid | 2 °C |
| Max temperature liquid | 110 °C |
| Noise level | 45 dB |
| For warm floor | No |
| For domestic hot water | No |
| For heating boilers | No |
| For towel warmers | No |
| Frequency control | No |
| Temperature sensor | No |
| Recommended diameter pipes | 32 mm - 1 1/4" |
| Twin | No |
| Class protection | IP44 |
| Connector V kit | G1 1/2 internal inch |
| Net weight | 5.5 kg |
Conteúdo da embalagem
- Pump - 1 pc.
- Union nuts - 2 pcs.
- Rubber gaskets - 2 pcs.
- Operating manual - 1 pc.
Embalagem
| Peso | 5 kg |
|---|
