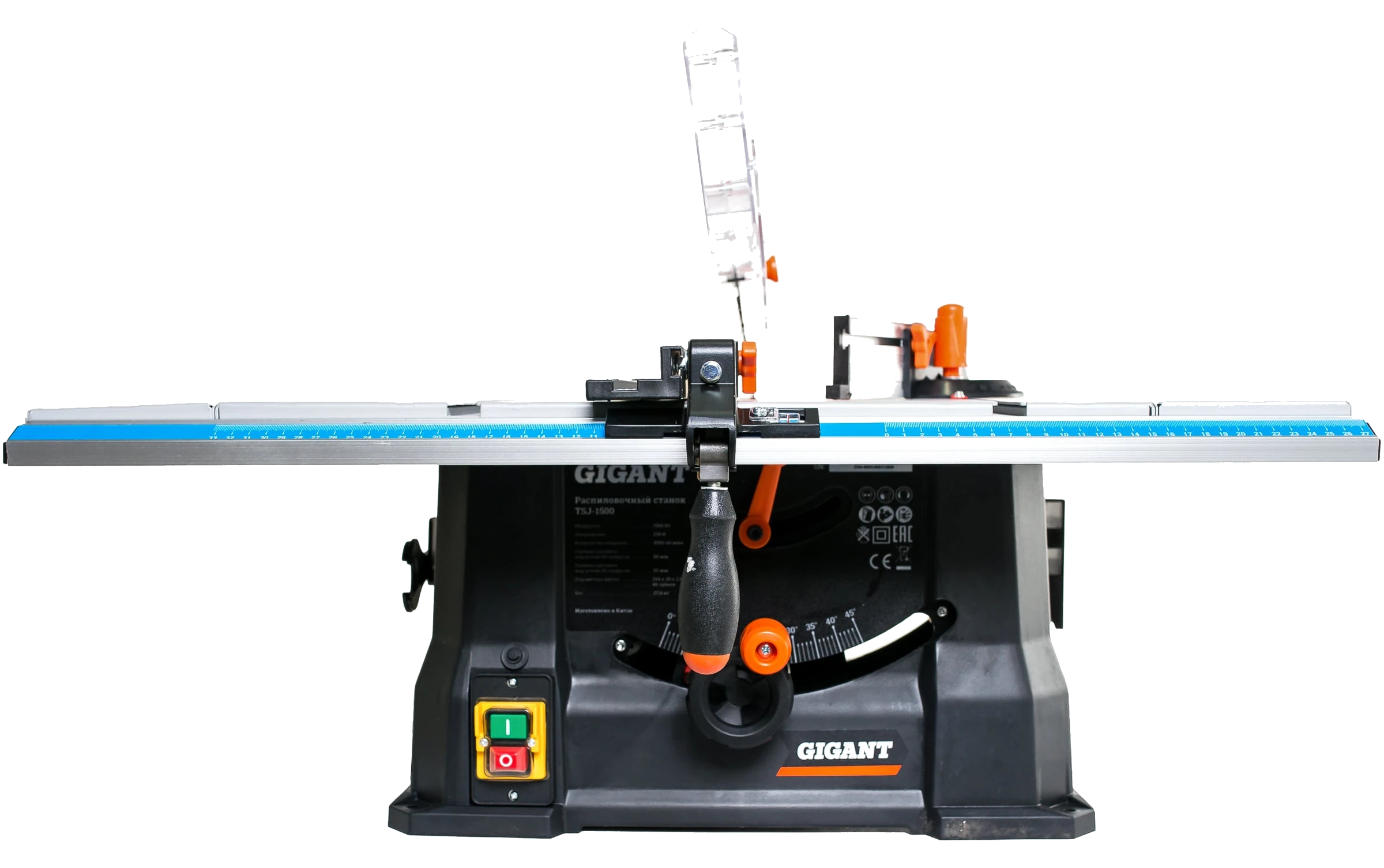

Cut-off saw TSJ-1500

Labels and markings on the product shown may differ from those on units supplied to your market.

TSJ-1500Semiprofissional

Table saw TSJ-1500

  • 1500 WPower
  • 220/230 VVoltage
  • 4500 rpmSpindle speed

Table saw for rip, cross and bevel cuts in wood, plywood and chipboard: constant 4500 rpm, rip fence and riving knife for safe, accurate work.

Garantia: 12 meses

Descrição

The GIGANT TSJ-1500 table saw is designed for rip, cross and bevel cuts in workpieces. Its wide base gives the machine stability and keeps working vibration to a minimum. The powerful motor holds a constant spindle speed of 4500 rpm. The rip fence delivers high cutting accuracy. The riving knife rules out the workpiece being thrown back toward the operator.

Materials that can be cut:

  • Wood.
  • Plywood.
  • Chipboard.

Especificações

Specifications
Power 1500 W
Voltage 220/230 V
Mounting Benchtop
Type electric motor Brushed
Transmission Toothed
Material worktable table Metal
Spindle speed 4500 rpm
Adjustment depth cut No
Max cutting depth at 45° 55 mm
Max cutting depth at 90° 80 mm
Angle tilt 45 °
Worktable size 554x540 mm
Work table length 554 mm
Work table width 540 mm
Diameter 254 mm
Diameter 10 inch
Bore diameter 30 mm
With jointer No
Dust extraction system No
Wheels No
Soft start No
Presence of brake No
Material worked Wood/plywood/fiberboard/chipboard
Length 554 mm
Width 540 mm
Height 290 mm
Dimensions (unpackaged) 554x540x290 mm
Net weight 22.5 kg

Conteúdo da embalagem

  • Table saw
  • Dust extraction adapter - 1 pc.
  • Left and right table extensions - 2 pcs.
  • Riving knife - 1 pc.
  • Front rail - 1 pc.
  • Miter gauge - 1 pc.
  • Blade guard - 1 pc.
  • Dust collection hose - 1 pc.
  • Table extension - 1 pc.
  • Hose bracket - 1 pc.
  • Guide rail - 1 pc.
  • Knurled screw - 2 pcs.
  • Guide rail locking handle - 1 pc.
  • Rip fence - 1 pc.
  • Saw blade wrench - 2 pcs.
  • Flat washer - 15 pcs.
  • Spring washer - 13 pcs.
  • M6 hex nuts - 7 pcs.

Note: the stand and legs are not included.

Embalagem

Peso24,5 kg
