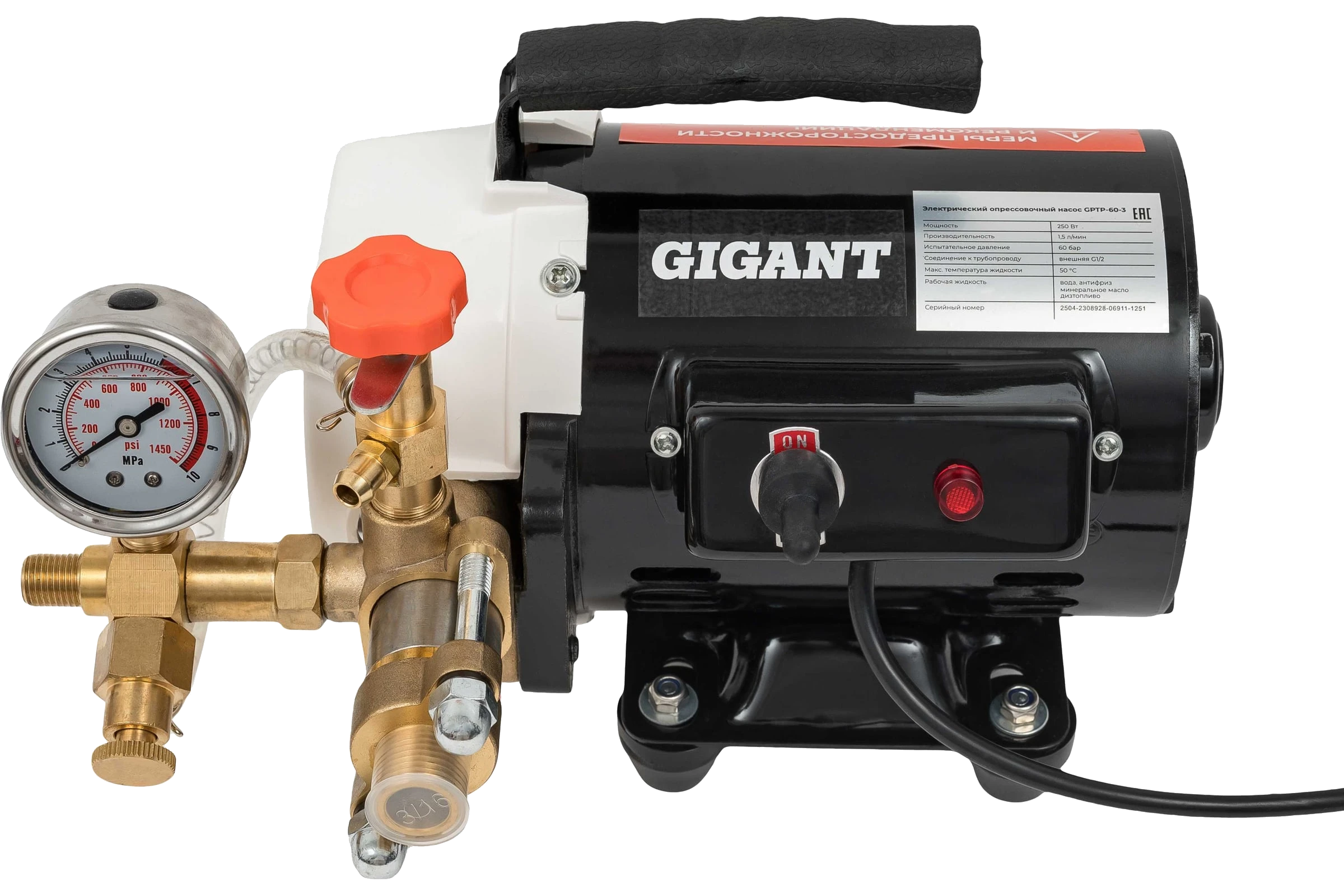

Electric pressure test pump 60 bar, 250 W, 3 l/min GPTP-60-3
220 VVoltage 250 WPower 60 barTest pressure
Electric pressure test pump, 60 bar, 250 W, 3 l/min, with a 17 liter tank and a gauge: it tests pipelines, heating and fire-fighting systems and fills closed circuits.
Descrição
The GIGANT GPTP-60-3 electric pressure test pump, 60 bar, 250 W, 3 l/min, is used to check the tightness of mains, pipelines, fire-fighting and heating systems and process equipment. It is also ideal for topping up closed circuits with working fluid. It comes with a seventeen liter plastic tank that resists a wide range of liquids. A gauge with a 0 to 60 bar scale keeps the applied pressure under control. A coarse filter protects the pump from suspended matter and large particles.
Especificações
| Series | GPTP |
|---|---|
| Type | Electric crimping tool |
| Kind | For specialized work |
| For increase pressure | Yes |
| Rotor | Dry |
| Voltage | 220 V |
| Power | 250 W |
| Test pressure | 60 bar |
| Pipeline connection | External G1/2 |
| Working liquid | Water, antifreeze, mineral oil, diesel fuel |
| Max temperature liquid | 50 °C |
| Performance | 3 l/min |
| Housing material | Bronze |
| Class protection | IP54 |
| Volume tank | 17 l |
| Dimensions (unpackaged) | 330x250x200 mm |
| Net weight | 9 kg |
Conteúdo da embalagem
- Pump - 1 pc.
- Plastic box (tank) - 1 pc.
- Hoses - 3 pcs.
- Adapter (M14x1.5 male - G1/2" male) - 1 pc.
- Seals (set) - 1 pc.
- Coarse filter - 1 pc.
- Operating manual - 1 pc.
- Packaging - 1 pc.
Embalagem
| Peso | 11,63 kg |
|---|
