GPTP-10Semiprofissional

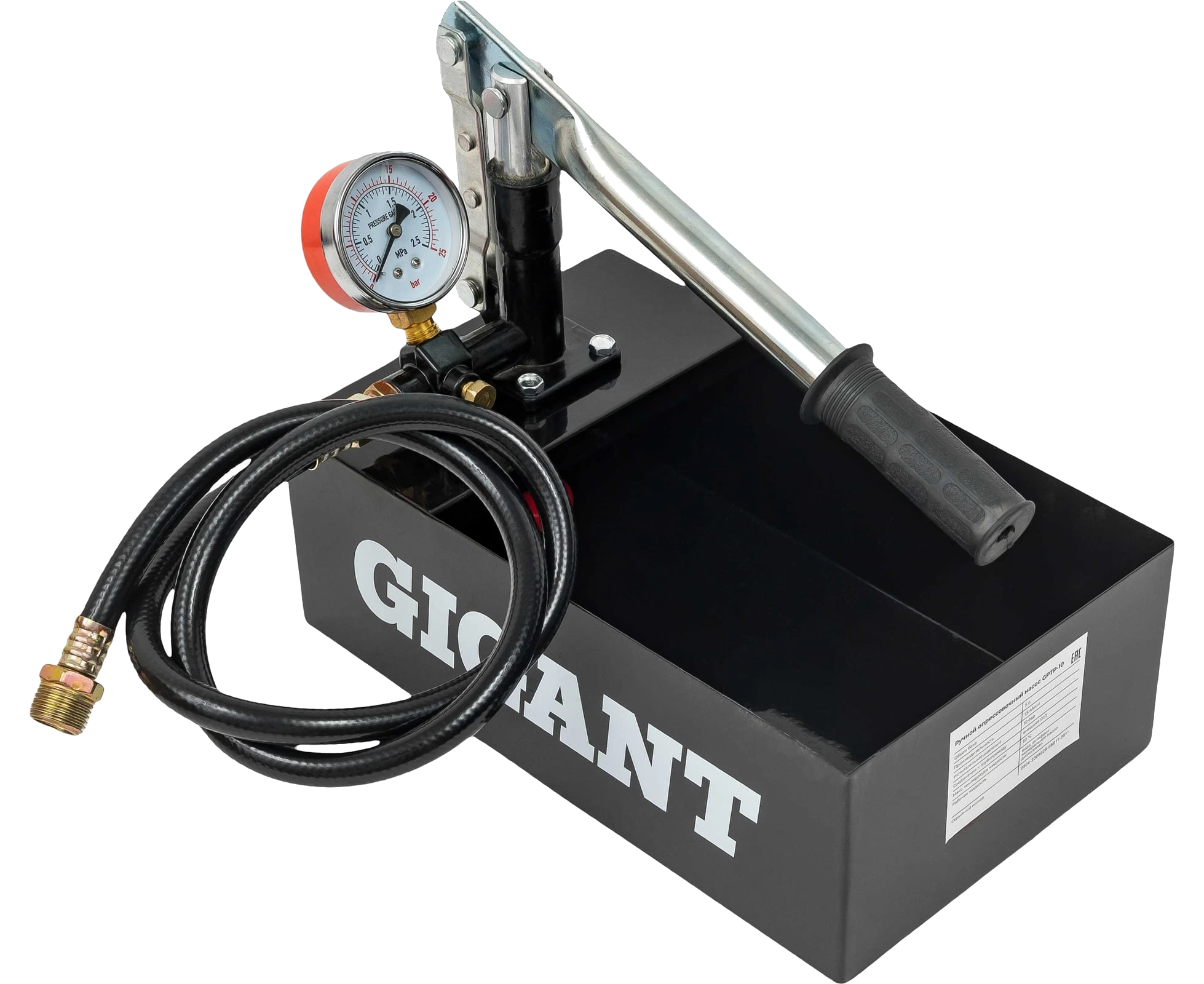

Hand-operated pressure test pump 10 bar GPTP-10
5 lVolume tank 1.5 l/minPerformance 10 barTest pressure
Hand pressure test pump rated at 10 bar with a 5 liter tank and a gauge: it checks the integrity and strength of closed building systems, and a coarse filter extends its service life.
Descrição
The GIGANT GPTP-10 hand pressure test pump, 10 bar, is used to check the integrity and strength of closed building systems. The unit has a 5 liter tank for the working fluid. For accurate diagnosis the pump has a pressure gauge with a scale up to 10 bar. A coarse filter protects the pump from large particles, which considerably extends its service life.
Especificações
| Series | GPTP |
|---|---|
| Type | Manual crimping tool |
| Kind | For specialized work |
| For increase pressure | Yes |
| Rotor | Dry |
| Voltage | Not applicable V |
| Volume tank | 5 l |
| Performance | 1.5 l/min |
| Test pressure | 10 bar |
| Pipeline connection | External G1/2 |
| Working liquid | Water, antifreeze, mineral oil, diesel fuel |
| Max temperature liquid | 50 °C |
| Housing material | Aluminum |
| Dimensions (unpackaged) | 300x180x260 mm |
| Net weight | 1.65 kg |
Conteúdo da embalagem
- Pump - 1 pc.
- Tank - 1 pc.
- Hose - 1 pc.
- Fittings and seals (set) - 1 pc.
- Operating manual - 1 pc.
- Packaging - 1 pc.
Embalagem
| Peso | 1,8 kg |
|---|
