Labels and markings on the product shown may differ from those on units supplied to your market.
MIG-170SCSemiprofissional

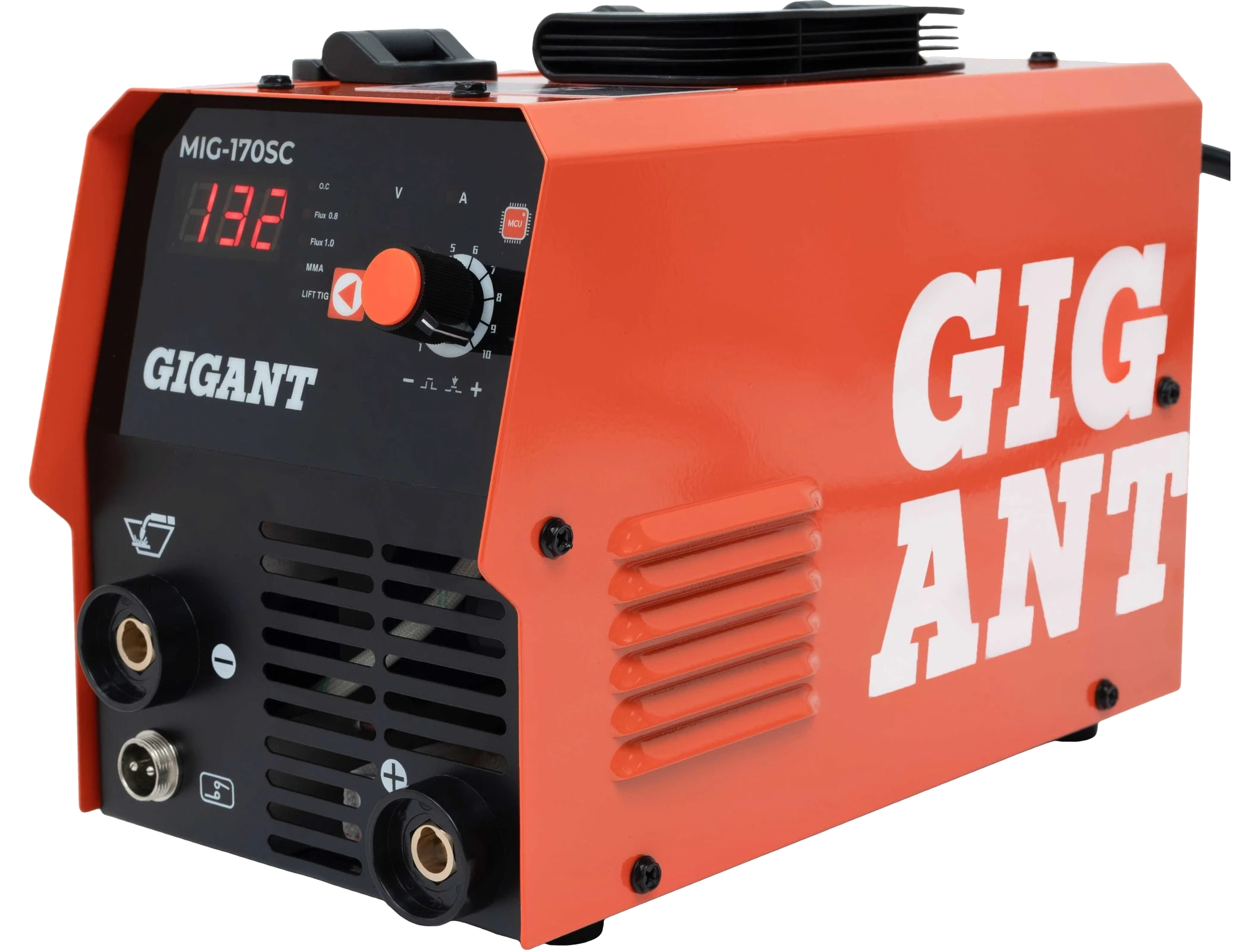

Inverter MIG welder MIG-170SC
170 AMax current 30 AMin current 170 AMax welding current MMA
Versatile inverter MIG welder for gasless welding with 0.8-1.0 mm flux-cored wire, manual arc welding with 1.6-4.0 mm stick electrodes and TIG welding (torch sold separately).
Descrição
The GIGANT MIG-170SC inverter MIG welder is a versatile machine that can be used for semi-automatic welding with 0.8-1.0 mm flux-cored wire (GASLESS WELDING), manual arc welding with 1.6 to 4.0 mm stick electrodes and TIG welding (the valve torch has to be purchased separately).
Especificações
| Type | Inverter |
|---|---|
| Welding mode | Gasless |
| Max current | 170 A |
| Min current | 30 A |
| Max welding current MMA | 170 A |
| Min welding current MMA | 30 A |
| Max welding current MIG-MAG | 170 A |
| Min welding current MIG-MAG | 30 A |
| Max power | 6.4 kW |
| Duty cycle at max current | 40 % |
| No-load voltage | 60 V |
| Rated input voltage | 220 V |
| Voltage tolerance | 10 % |
| Low-voltage operation | No |
| Min input voltage | 190 V |
| Presence of synergy | No |
| IP rating | IP21S |
| Torch cooling | Air |
| Torch length | 1.6 m |
| Max wire diameter | 1 |
| Min wire diameter | 0.8 |
| Max electrode diameter | 4 mm |
| Min electrode diameter | 1.6 mm |
| Feed rollers | 2 |
| Connector MMA | DX25 |
| Welding MMA | No |
| TIG welding | No |
| Pulse welding mode | No |
| Welding aluminium | No |
| Water cooling included | No |
| Digital display | No |
| Certificate NAKS | No |
| Euro spool | D100 |
| Mains plug included | Yes |
| Case | No |
| Dimensions (unpackaged) | 300x160x180 mm |
| Net weight | 3.7 kg |
Conteúdo da embalagem
- Welding torch - 1 pc
- Cable with ground clamp - 1 pc
- 0.8 welding wire (1 spool) - 1 pc
- Cable with electrode holder - 1 pc
- Manual
Embalagem
| Peso | 8 kg |
|---|
