Inverter MMA welder MINI GOS-160

Labels and markings on the product shown may differ from those on units supplied to your market.

MINI GOS-160Doméstico

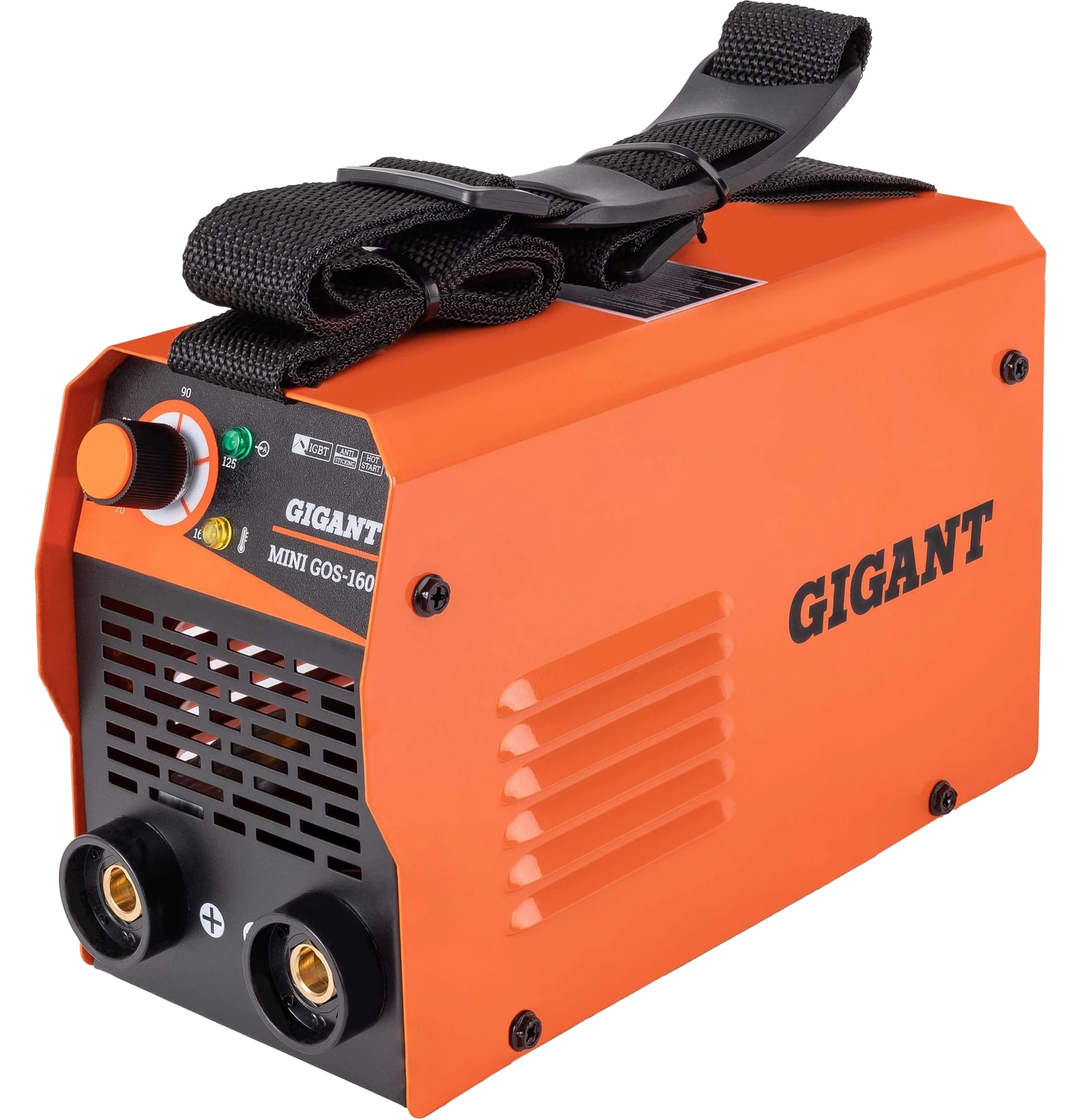

Inverter MMA welder MINI GOS-160

  • 220 VVoltage
  • 3.8 kWMax power
  • 20 AMin current

Portable MMA welding inverter for joining steel structures with covered stick electrodes, with a sturdy housing, tool-free cable connectors and simple, low-maintenance operation.

Garantia: 24 meses

Descrição

The GIGANT MMA MINI GOS-160 welding inverter is portable equipment for joining parts of steel structures with covered stick electrodes. The sturdy housing protects the internal components against accidental knocks. The connectors allow the cables to be fitted quickly, without tools. The machine is simple to operate and needs no complex servicing.

Especificações

Specifications
Type Inverter
Voltage 220 V
Max power 3.8 kW
Min current 20 A
Max current 160 A
Operating mode DC
Min electrode diameter 1.6 mm
Max electrode diameter 4 mm
Duty cycle 60 %
IP rating IP21S
Mains plug included Yes
Low-voltage operation Up to 150 V
Min input voltage 140 V
Connector for welding cable DX25
TIG welding No
Length wires 1.5+1.35 m
Material wires Aluminum
Working temperature ambient environment -10 to +40 °C
Boost arc No
Hot start Non-adjustable
Certificate NAKS No
No-load voltage 65 V
Presence of digital indicator welding current No
Presence of synergy No
Anti-stick No
Display No
Presence of remote control DN No
With starter-charger device No
Case No
Dimensions (unpackaged) 310x185x225 mm
Net weight 3 kg

Conteúdo da embalagem

  • Welding machine;
  • Welding cable with electrode holder;
  • Welding cable with ground clamp;
  • Welding shield;
  • Cleaning brush;
  • Carrying strap;
  • Operating manual;
  • Warranty card;
  • Packaging.

Embalagem

Peso3,98 kg
