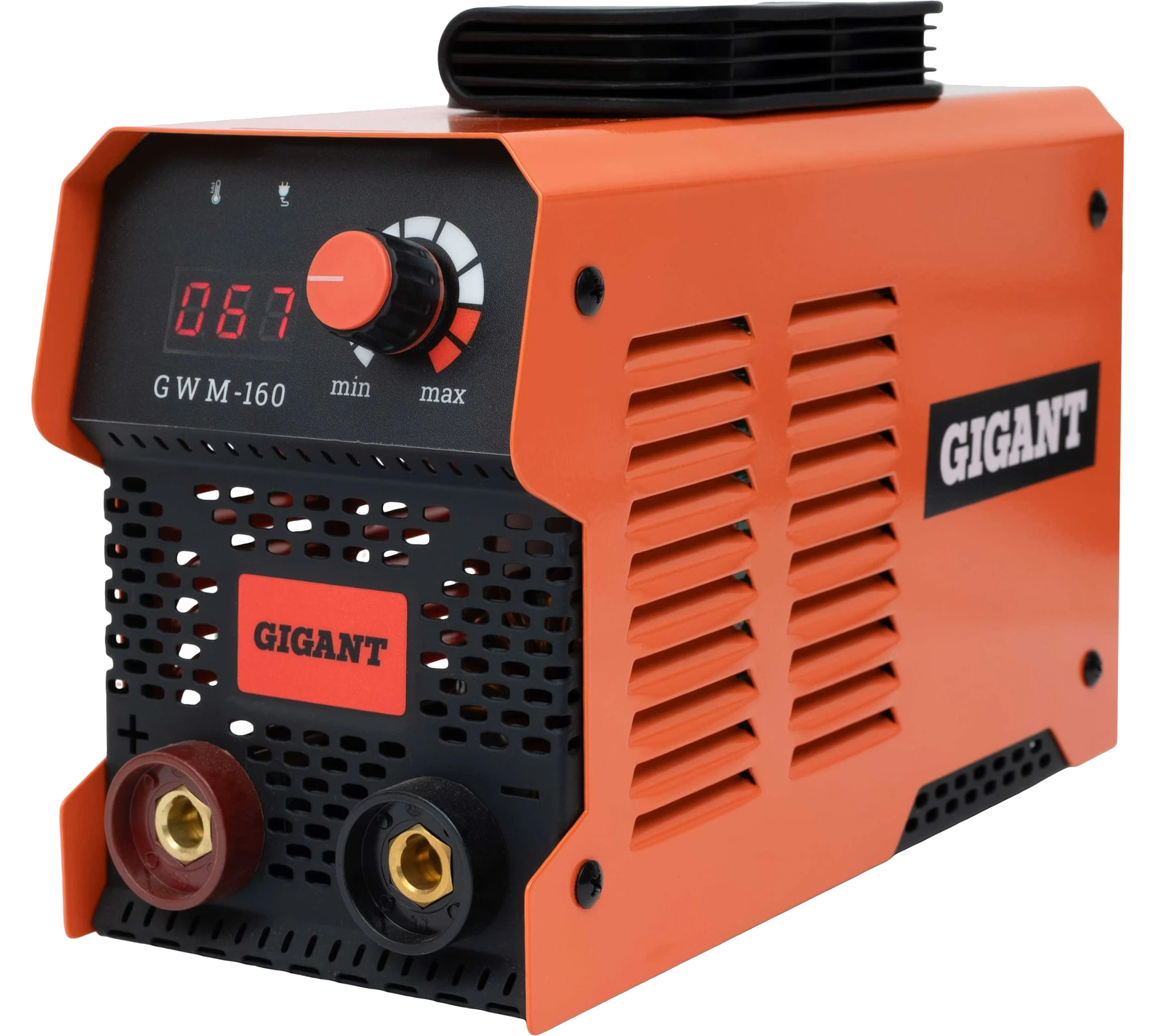

Inverter welder GWM-160

Labels and markings on the product shown may differ from those on units supplied to your market.

GWM-160Semiprofissional

Inverter welder GWM-160

  • 220 VVoltage
  • 3 kWMax power
  • 30 AMin current

Inverter welding machine for manual metal arc welding with a covered electrode on DC: IGBT design, ARC Force, Anti Stick and Hot Start, operation from -10 to +40 degrees Celsius.

Garantia: 24 meses

Descrição

The GIGANT GWM-160 inverter welding machine is designed for manual metal arc welding with a covered electrode on direct current.

The model has a rugged, well-protected design that ensures a long service life. The metal housing protects all internal assemblies from mechanical impact.

Low weight and compact dimensions make this welding machine portable and convenient in use. It is easy to carry around the work site with the strap supplied.

The model delivers high welding quality. It produces strong, even welds and allows the job to be done professionally and efficiently.

The machine can be used in a range of conditions, across a wide temperature range from -10 to +40 degrees Celsius.

The ARC Force, Anti Stick and Hot Start functions improve weld quality, prevent the electrode from sticking and make arc striking easy.

Thanks to IGBT transistors, the welding machine works efficiently, stably and reliably, delivering high weld quality with minimal energy consumption and a long service life.

Especificações

Specifications
Type Inverter
Voltage 220 V
Max power 3 kW
Min current 30 A
Max current 160 A
Operating mode DC
Min electrode diameter 1 mm
Max electrode diameter 4 mm
Duty cycle 70 %
IP rating IP21S
Mains plug included Yes
Min input voltage 170 V
Connector for welding cable DX25
TIG welding No
Length wires 2.5+1.5 m
Working temperature ambient environment -10 to +40 °C
Boost arc Non-adjustable
Hot start Non-adjustable
Certificate NAKS No
No-load voltage 75 V
Presence of digital indicator welding current No
Presence of synergy No
Anti-stick No
Display No
Presence of remote control DN No
With starter-charger device No
Case No
Dimensions (unpackaged) 250x105x155 mm
Net weight 2.7 kg

Conteúdo da embalagem

  • Welding machine
  • Welding cable with electrode holder (2.5 m x 12 mm²)
  • Welding cable with earth clamp (1.5 m x 12 mm²)
  • Shoulder strap
  • Operating manual
  • Warranty card
  • Packaging
