TIG-200Profissional

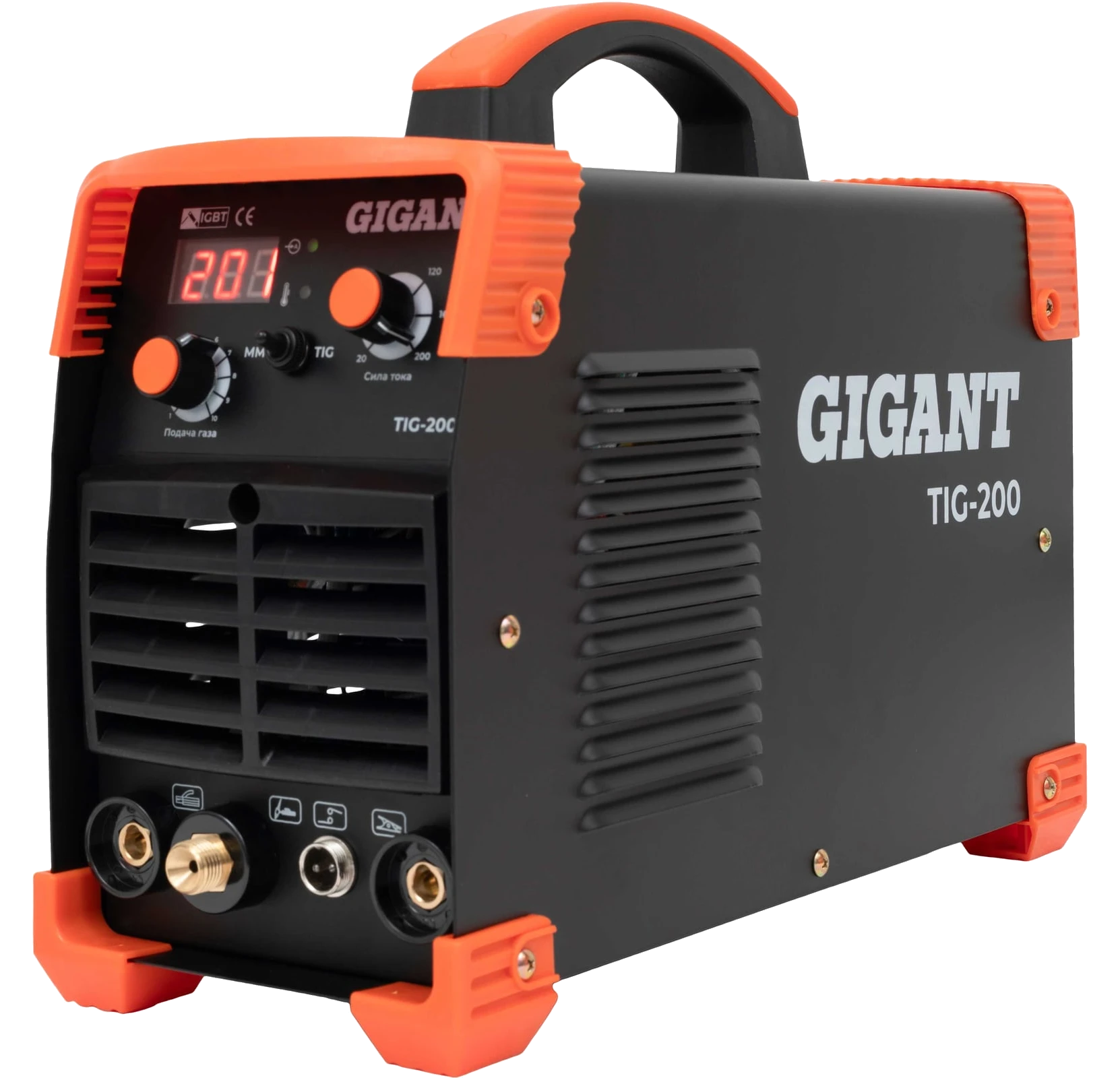

Inverter welder TIG-200
1.6-4/- mmElectrode/wire diameter 7.1 kWMax power 10 kgNet weight
Welding inverter for both MMA stick welding and TIG welding in argon, with a front-panel warning lamp for overload and overheating and an ergonomic carrying handle.
Descrição
The GIGANT TIG-200 welding inverter can work in two modes: with standard MMA electrodes and with non-consumable electrodes in argon (TIG).
An indicator lamp on the front panel warns the operator of a voltage or current overload and of overheating. The ergonomic handle on top of the housing makes the machine quick and easy to carry.
High build quality ensures reliable operation throughout its service life.
Especificações
| Electrode/wire diameter | 1.6-4/- mm |
|---|---|
| Max power | 7.1 kW |
| Net weight | 10 kg |
| Dimensions (unpackaged) | 450x250x335 mm |
| Voltage | 220 V |
| Max current | 200 A |
| Min current | 10 A |
| No-load voltage | 55 V |
| Duty cycle at max current | 60 % |
| Voltage tolerance | +-15 % |
| IP rating | IP21S |
| Mains plug included | Yes |
| Control connector | 2PIN |
| Torch cooling | Air |
| TIG ignition | HF (non-contact) |
| Operating mode | DC |
| Welding aluminium | No |
| Pulse mode | No |
| Mode TIG COLD | No |
| Torch type | 26 |
| Mode operation torch | 2-stroke |
| Connector TIG torch | M16x1.5; DX25 |
| Certificate NAKS | No |
| With pedal | No |
Conteúdo da embalagem
- Welding machine;
- Welding cable with ground clamp;
- TIG torch;
- TIG nozzle set;
- Operating manual;
- Packaging.
Embalagem
| Peso | 10 kg |
|---|
