GCUT-100Semiprofissional

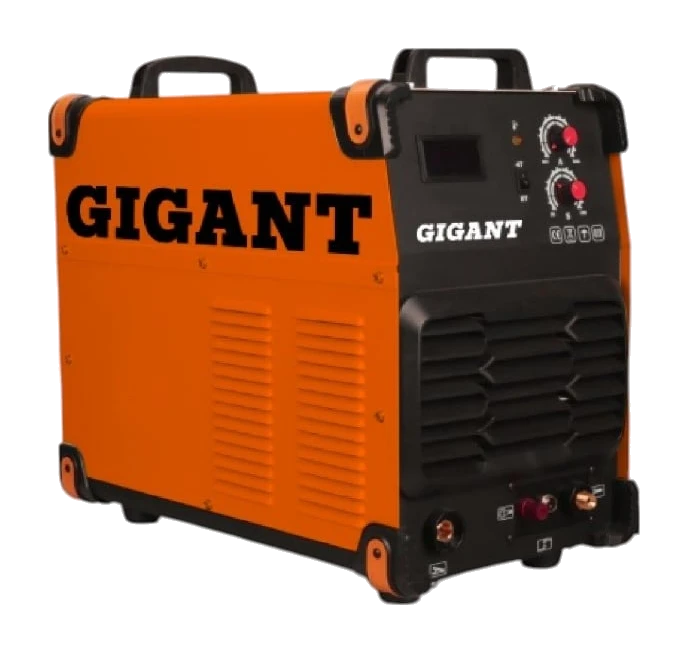

Plasma cutting inverter GCUT-100
100Torch/cutter type 380(400) VVoltage 16.5 kWMax power
Air plasma cutting inverter: it cuts conductive metal up to 40 mm thick, including stainless and galvanized steel, copper and aluminum.
Descrição
The GIGANT GCUT-100 plasma cutting inverter is used to cut metals, prepare blanks for welding, for other metalwork and for finishing castings. Using plasma, the machine cuts conductive metal up to 40 mm thick (depending on the alloy). That includes stainless steel, galvanized steel, copper, aluminum and other metals.
Especificações
| Type | Inverter |
|---|---|
| Torch/cutter type | 100 |
| Voltage | 380(400) V |
| Max power | 16.5 kW |
| Max air flow | 220 l/min |
| Max pressure | 6 bar |
| Max cutting thickness | 40 mm |
| Min current | 20 A |
| Max current | 100 A |
| Duty cycle at max current | 70 % |
| Mains plug included | Yes |
| Euro connector | No |
| Arc ignition | High-frequency non-contact (HF) |
| Air fitting | 8 mm |
| CNC connection | Yes |
| Built-in compressor | No |
| Wheels | No |
| Dimensions (unpackaged) | 560x300x490 mm |
| Net weight | 27.7 kg |
Conteúdo da embalagem
- Air plasma cutting inverter - 1 pc.
- IPR 100 plasma torch assembly, 6 m - 1 pc.
- Earth clamp assembly 300 A with 16 mm2 cable, 3 m - 1 pc.
- Water and oil separator - 1 pc.
- Gas hose 8x12, 3 m - 1 pc.
- Wrench for tightening the electrode and the tip.
- Electrode
- Nozzle
- Standoff guide
- Data sheet
Embalagem
| Peso | 27,7 kg |
|---|
