Labels and markings on the product shown may differ from those on units supplied to your market.
HMPJ-300Rumah tangga

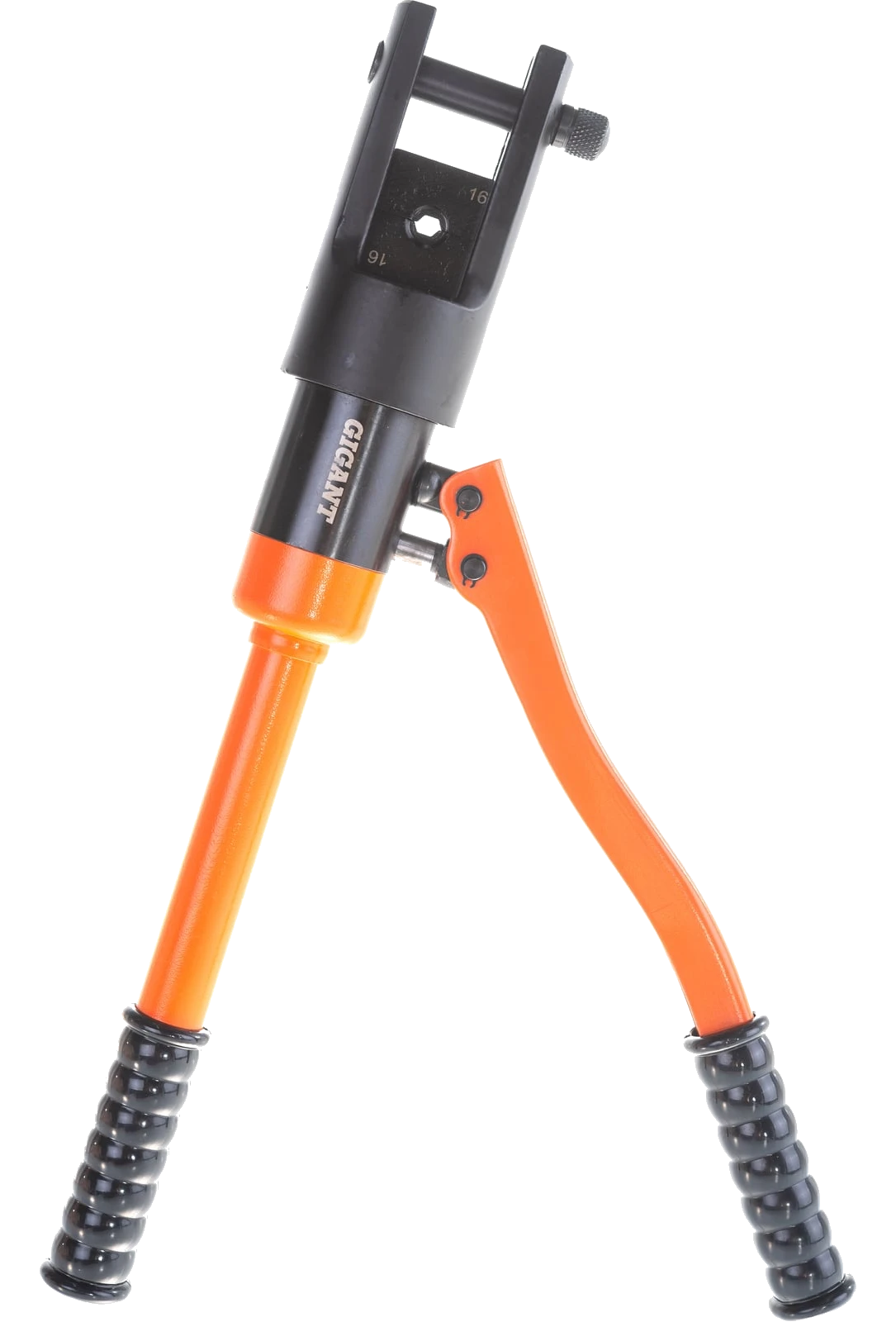

Hydraulic hand press HMPJ-300
10-300 mm²Uninsulated (Al) terminal wire range 10 mm²Min uninsulated (Al) terminal wire size 300 mm²Max uninsulated (Al) terminal wire size
A hand hydraulic crimping tool with a reinforced head and 12 dies for hexagonal crimping of lugs and sleeves from 10 to 300 mm².
Deskripsi
The GIGANT HMPJ-300 hand hydraulic crimping tool is intended for professional crimping of copper, aluminum and bimetallic power lugs and sleeves onto wire and cable with copper and aluminum conductors. The working part has a large strength reserve: it is made entirely of metal and has a reinforced head. Interchangeable dies fit into seats in the upper part of the head and in the ram.
- Number of dies - 12 (10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm²).
- Crimp profile - hexagonal.
- Operating temperature range -20 to +50 C.
- Manual pressure release valve.
Spesifikasi
| Uninsulated (Al) terminal wire range | 10-300 mm² |
|---|---|
| Min uninsulated (Al) terminal wire size | 10 mm² |
| Max uninsulated (Al) terminal wire size | 300 mm² |
| Cross-section uninsulated. terminal (Cu) | 10-300 mm² |
| Min bare terminal cross-section (Cu) | 10 mm² |
| Max bare terminal cross-section (Cu) | 300 mm² |
| Number batteries V kit | No |
| Max working force | 7.8 t |
| Number of dies included | 12 pcs |
| Safety valve | No |
| Net weight | 3.7 kg |
Isi kemasan
- Hydraulic crimping tool - 1 pc.
- Interchangeable dies - 12 pcs.
- Case - 1 pc.
- Repair kit (seals) - 1 pc.
- Operating manual - 1 pc.
Kemasan
| Berat | 5,5 kg |
|---|
