CACH-06Rumah tangga

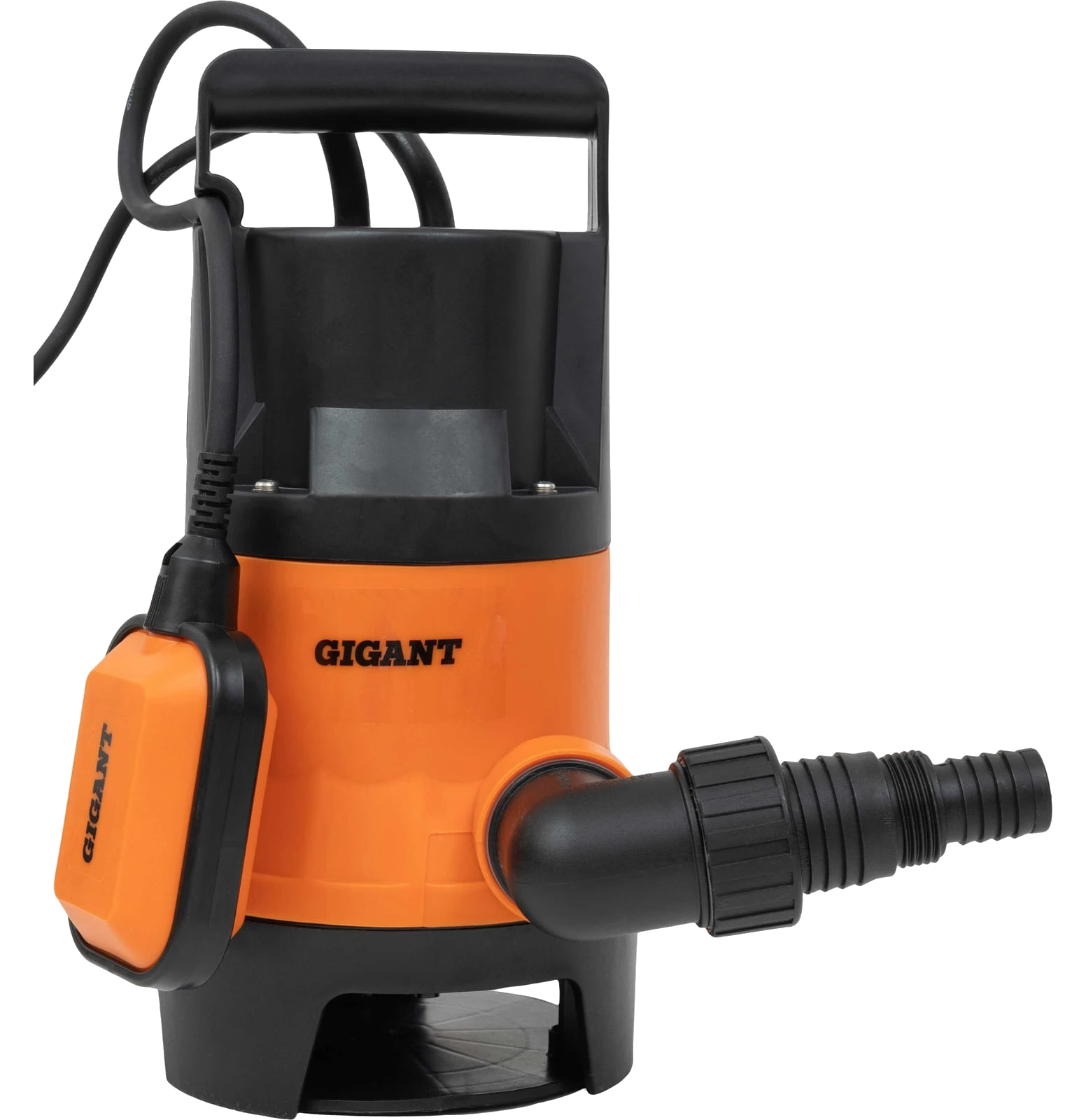

Submersible sewage pump CACH-06
230 VVoltage 400 WPower 5 mMax lift height
A submersible sewage pump for transferring water with organic solids up to 35 mm from ditches and pools; the float switch rules out dry running.
Deskripsi
The GIGANT CACH-06 submersible sewage pump is used to transfer water with organic solids up to 35 mm from ditches and pools. It has a float switch that avoids dry running.
Spesifikasi
| Series | FN |
|---|---|
| Type | Sewage |
| Kind | Submersible |
| Design | Centrifugal |
| Voltage | 230 V |
| Power | 400 W |
| Max lift height | 5 m |
| Depth immersion | 7 m |
| Pressure | 0.5 Pa atm |
| Max pressure | 0.6 atm |
| Max temperature liquid | 35 °C |
| Class protection | IPX8 |
| Performance | 125 l/min |
| Pipe connection | External G1 1/2 inch |
| Housing material | Plastic |
| Diameter pump | 158 mm |
| Intake water | Bottom |
| Protection from dry stroke | Float switch |
| Material impeller | POM |
| For increase pressure | No |
| Presence of shredding blade | No |
| Residual level water | 130 mm |
| Permissible diameter solid particles | 35 mm |
| Cable length | 8 m |
| Dimensions (unpackaged) | 220x160x340 mm |
| Net weight | 3.6 kg |
Isi kemasan
- Pump assembly;
- Operating manual;
- Warranty card;
- Packaging;
- 90 degree hose connector.
Kemasan
| Berat | 5 kg |
|---|
