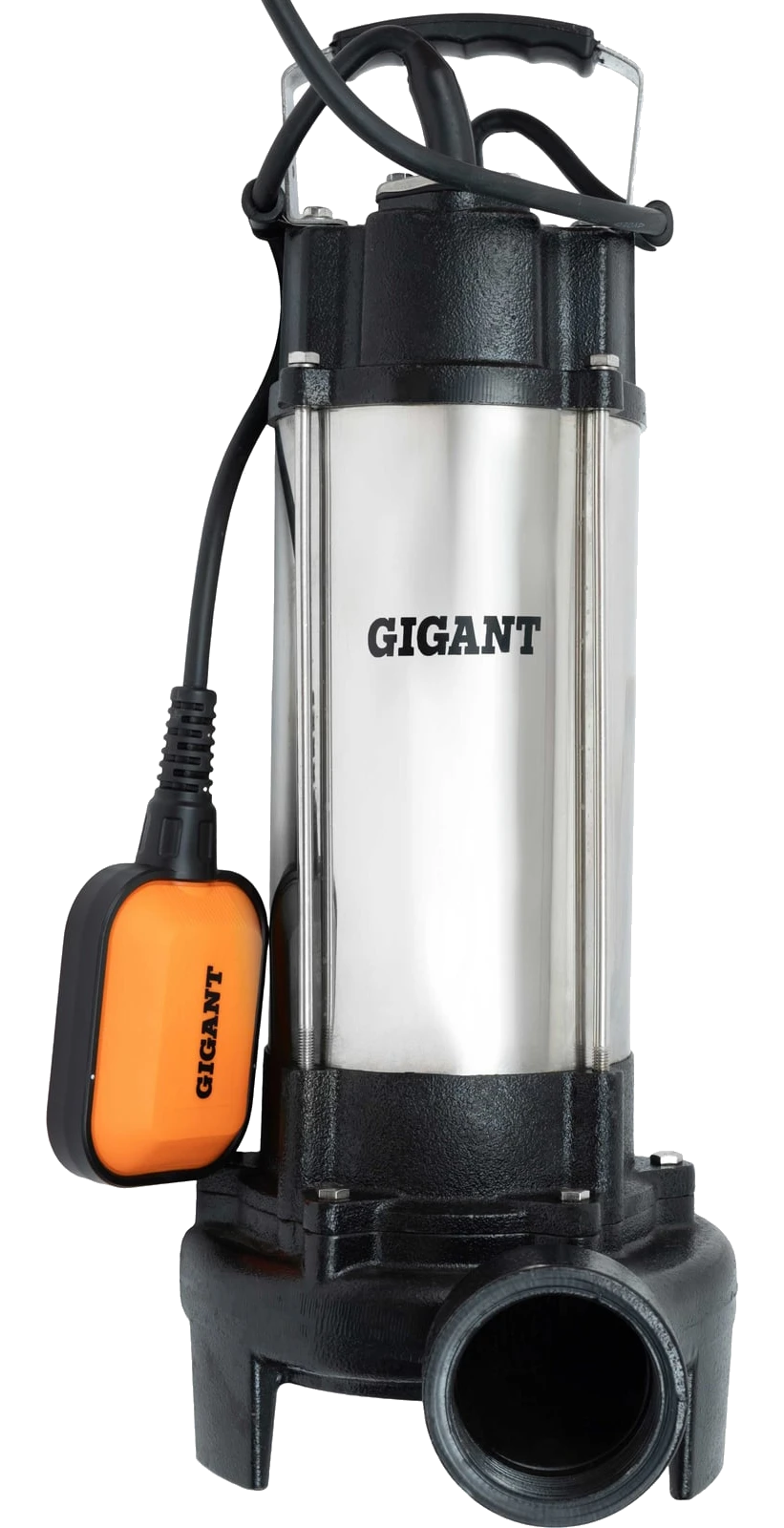

Submersible sewage pump CACH-08
230 VVoltage 2200 WPower 15 mMax lift height
A 2200 W sewage pump with a cutter blade and IPX8 protection for contaminated water and wastewater: cast iron and stainless steel, float-controlled operation.
Deskripsi
The GIGANT CACH-08 submersible sewage pump is used to transfer contaminated water, including wastewater, and to irrigate from bodies of water containing mechanical solids. The permissible particle diameter is 15 mm. A cutter blade in front of the intake port shreds larger debris down to the required size.
The sewage pump is designed for long submerged operation in aggressive media. IPX8 protection keeps the supply cable sealed. The housing and working parts are made of corrosion-resistant materials: cast iron and stainless steel.
The 2200 W single-phase induction motor with a squirrel-cage rotor is protected against wear from frequent starts and from dry running. The motor starts and stops on the float signal. Adjusting the cable length sets the switching level of the pump. The number of starts per hour is limited to 20.
Spesifikasi
| Series | FN |
|---|---|
| Type | Sewage |
| Kind | Submersible |
| Design | Centrifugal |
| Voltage | 230 V |
| Power | 2200 W |
| Max lift height | 15 m |
| Depth immersion | 9 m |
| Pressure | 1.2 Pa atm |
| Max pressure | 1.2 atm |
| Max temperature liquid | 40 °C |
| Class protection | IPX8 |
| Performance | 500 l/min |
| Pipe connection | Internal G2 inch |
| Housing material | Stainless steel |
| Diameter pump | 158 mm |
| Intake water | Bottom |
| Protection from dry stroke | Float switch |
| Material impeller | POM |
| For increase pressure | No |
| Presence of shredding blade | Yes |
| Residual level water | 15 mm |
| Permissible diameter solid particles | 35 mm |
| Cable length | 8 m |
| Dimensions (unpackaged) | 540x275x255 mm |
| Net weight | 23.4 kg |
Isi kemasan
- Sewage pump - 1 pc.
- Plastic hose connector - 1 pc.
- Data sheet - 1 pc.
- Packaging - 1 pc.
Kemasan
| Berat | 5 kg |
|---|
